Handrail bracket | with 70x4 mm flange | for welding | S235JR steel, untreated
$7.16*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
729
Product number:
30.1400.8
EAN:
4251412944956
Gewicht:
0.23 kg
Description
Product information "Handrail bracket | with 70x4 mm flange | for welding | S235JR steel, untreated"
Handrail bracket | with 70x4 mm disc | for welding | S235JR steel, untreated
[ Technical details ] S235JR steel, raw
[ Specific details ] with 3 holes, slightly domed disc with chamfer, bracket welded to disc, for welding, raw steel

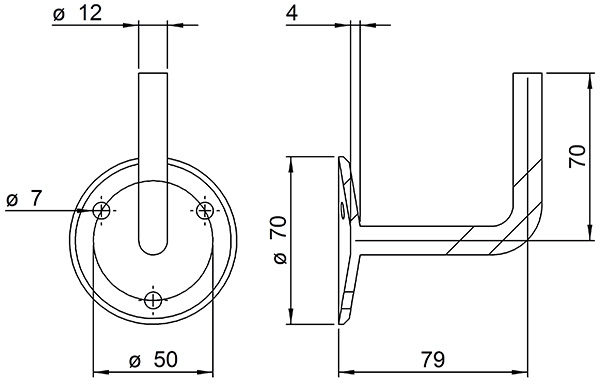

[ Further specific details ] Slightly domed disc with chamfer: 70 x 4 mm with 3 holes Ø 7 mm; Bracket: 12 mm; bracket welded to disc; distance from wall to centre of bracket: approx. 79 mm
[ Application ] Position the handrail bracket at the desired location and secure it using suitable screws (not included)
Eigenschaften
| Anzahl Bohrungen: | 3 |
|---|---|
| Bohrung Ø in mm: | 7 mm |
| Wandabstand Mitte-Handlauf: | 79 mm |
| Werkstoff: | S235JR (ST37), roh |
