Glass support bracket, Ø 30 mm, V4A, connection: pipe Ø 42.4 mm
$9.12*
Available now, delivery time: Lieferzeit 1-2 Werktage
Product information "Glass support bracket, Ø 30 mm, V4A, connection: pipe Ø 42.4 mm"
[ Technical details ] made of V4A/AISI 316 stainless steel – 240-grit polished
[ Specific details ] Diameter: 30 mm, with M8 40 mm threaded screw; Clamping range: 6–12.76 mm
[ Further specific details ] Glass bore: min. 15 mm; Distance: wall to glass pane 15 mm – rubber pad thickness 2 mm; Suitable for indoor and outdoor use

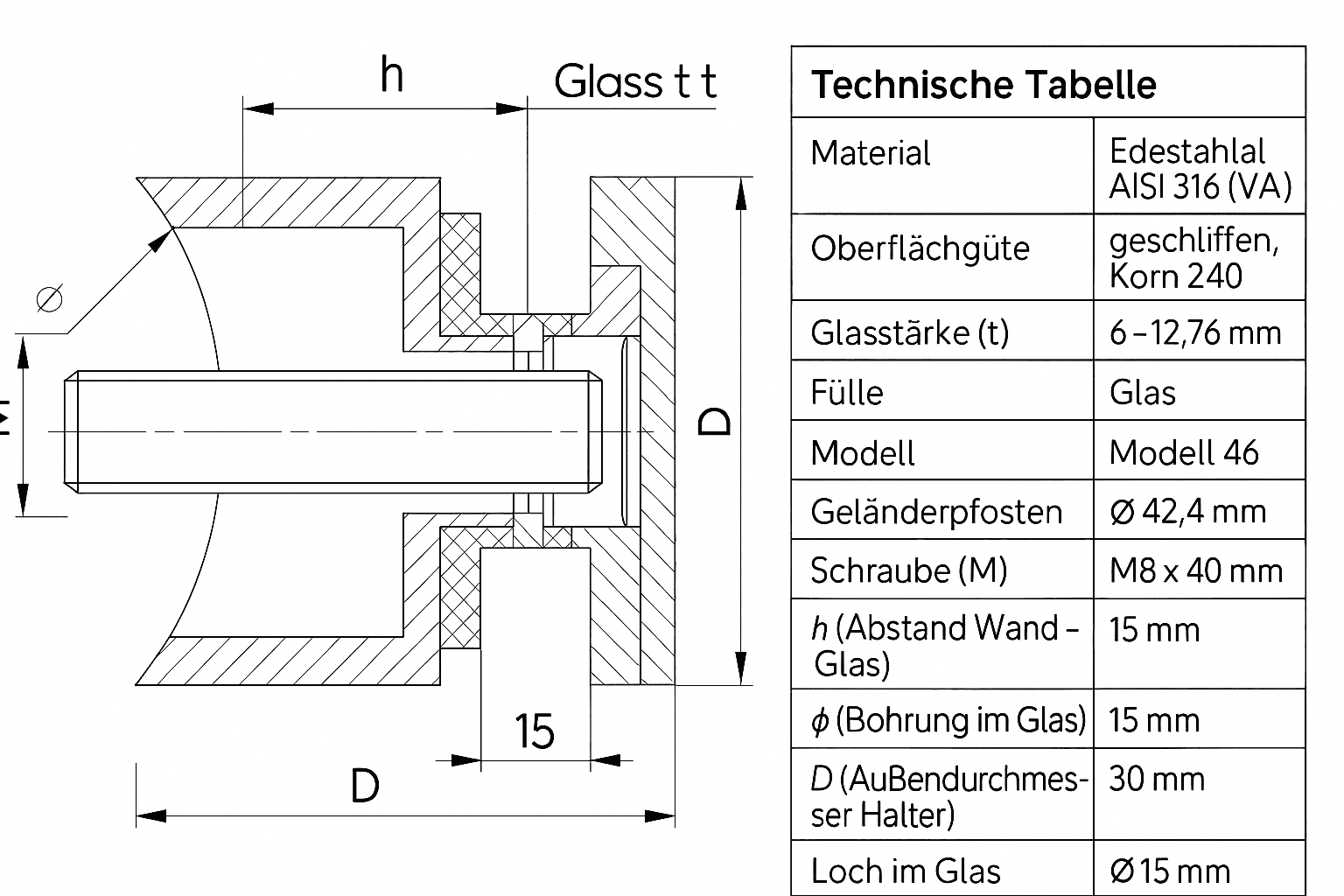

| Feature | Value |
|---|---|
| Material | Stainless steel AISI 316 |
| Surface finish | Finish |
| Glass thickness (t) | 6–12.76 mm |
| Thickness | Glass |
| Model | Model 46 |
| Balustrade post | D42.4 |
| Screw (M) | M8x40 |
| h | 15 |
| Φ (Phi) | 42.4 |
| D | 30 |
| d | 13 |
| Hole in the glass | 15 |
| Durchmesser: | 30mm |
|---|---|
| Werkstoff: | V4A (AISI316) 1.4401/04 |
| Ø Für Rohr | Ø Außendurchmesser | Ø Anschluss: | Ø 42.4mm (11⁄4″) |
