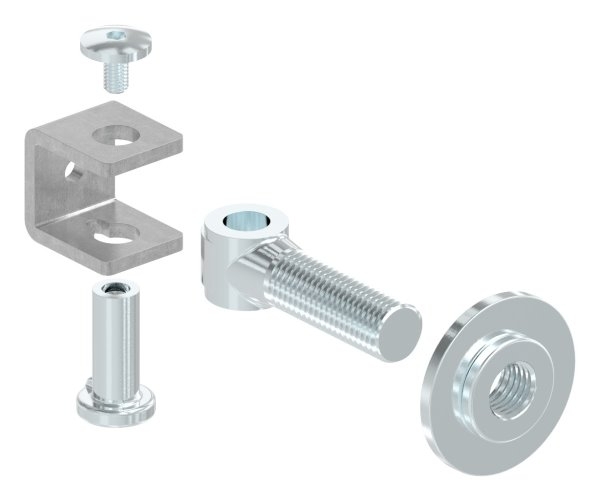

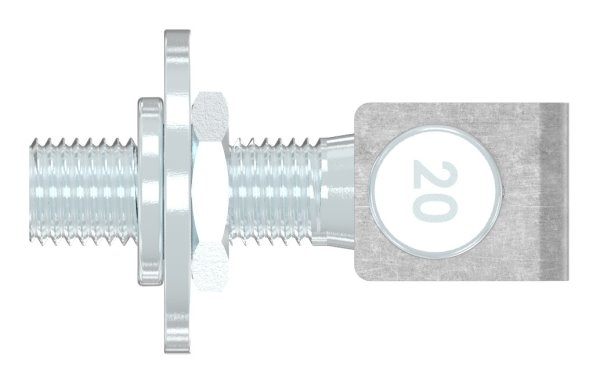

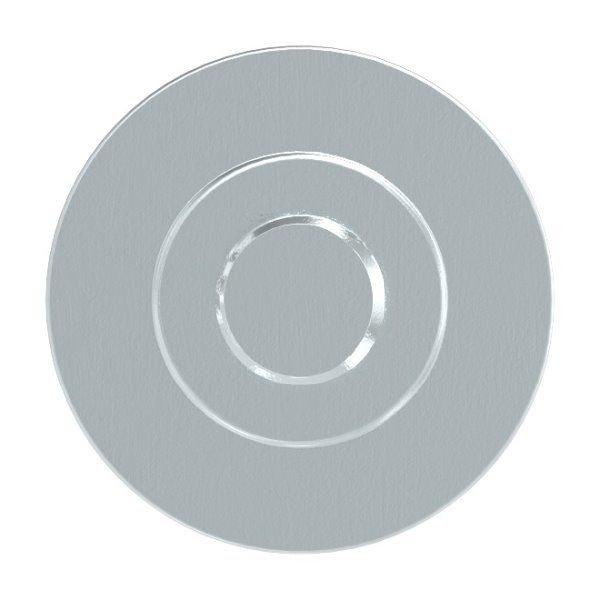

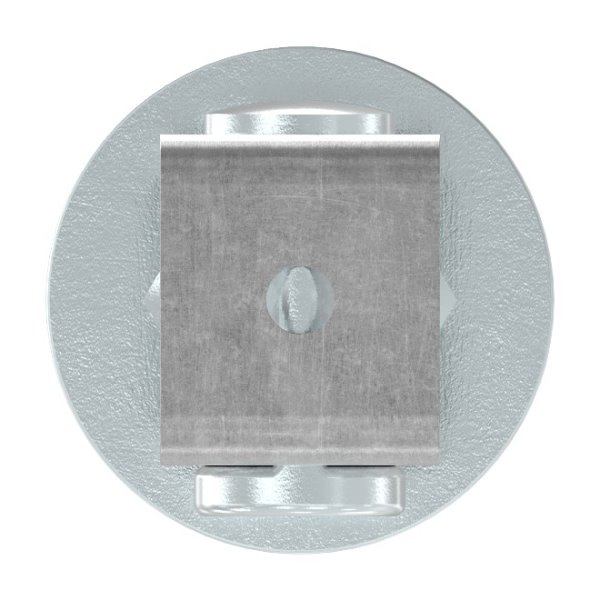

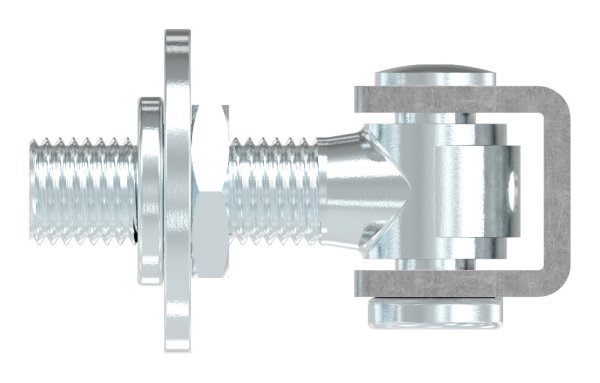

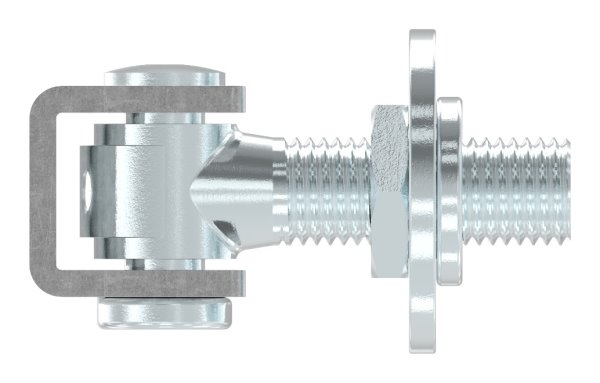

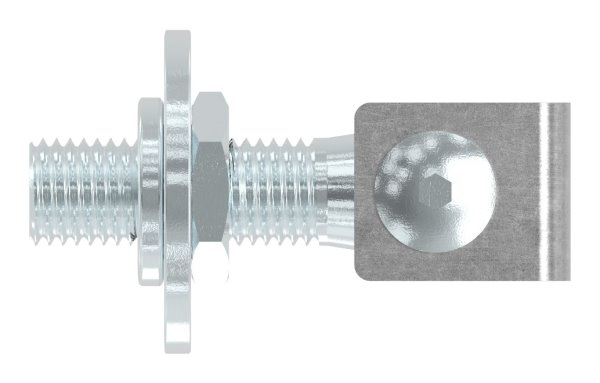

M20 adjustable weldable steel (uncoated) S235JR door hinge
FeNau Ltd
$21.78*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
7
Product number:
30.3500.8
EAN:
4251412917226
Gewicht:
0.45 kg
Description
Product information "M20 adjustable weldable steel (uncoated) S235JR door hinge"
M20 hinge | adjustable | weldable | S235JR steel (uncoated)
[ Technical details ] made of S235JR steel, raw

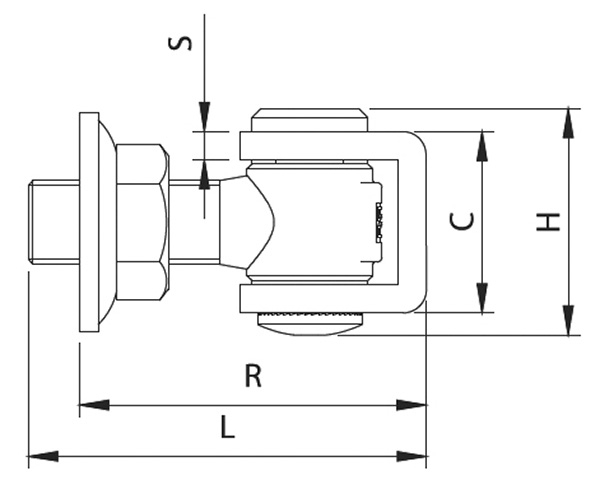

[ Specific details ] Dimension A: 33 mm; Dimension B: 40 mm; Dimension C: 39 mm; Dimension E: 20 mm; Dimension F: Ø 25 mm; Dimension G: 25 mm; Dimension H: 49 mm; Dimension L: 85 mm; Dimension M: M20; Dimension R: 50–70 mm; Dimension S: 6 mm; Load capacity: 150 kg
[ Further Specific Details ] Gate hinge for welding, adjustable, galvanised
[ Application ] Position the gate hinge where required; can be adjusted via a hex nut even after installation
Eigenschaften
| Gewinde : | M20 |
|---|---|
| Versand Gurtmasspflichtig: | Nein |
| Werkstoff: | Stahl roh |
