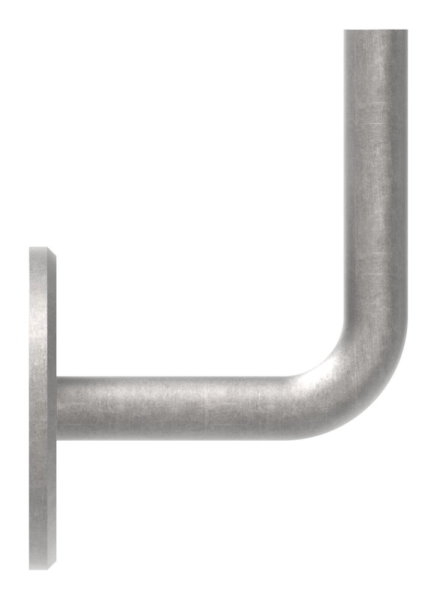

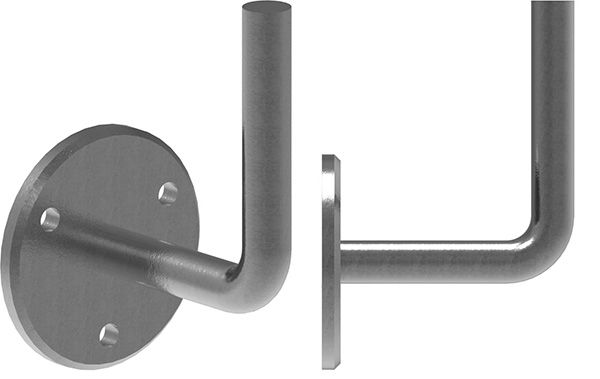

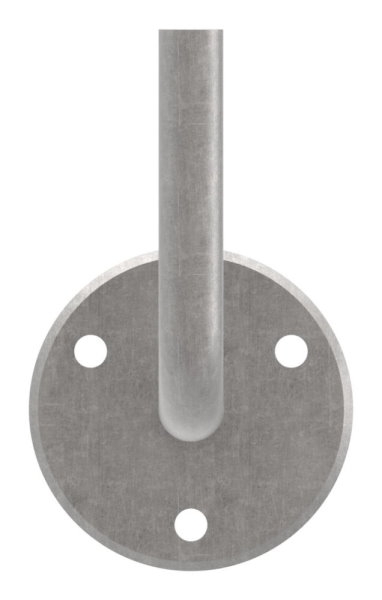

Handrail bracket | with 70x6 mm flange | for welding | S235JR steel, untreated
$8.82*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
680
Product number:
30.1402.8
EAN:
4251412944970
Gewicht:
0.34 kg
Description
Product information "Handrail bracket | with 70x6 mm flange | for welding | S235JR steel, untreated"
Handrail bracket | with 70x6 mm flange | for welding | S235JR steel, untreated
[ Technical details ] S235JR steel, raw
[ Specific details ] with 3 holes, disc with chamfer, bracket welded to disc, for welding, raw steel

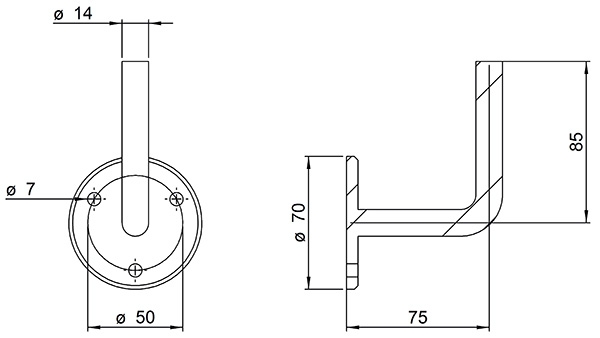

[ Further specific details ] Slightly domed disc with chamfer: 70 x 6 mm with 3 holes Ø 7 mm; bracket: 14 mm; Bracket welded to disc; distance from wall to centre of bracket: 75 mm
[ Application ] Position the handrail bracket at the desired location and secure it using suitable screws (not included)
Eigenschaften
| Anzahl Bohrungen: | 3 |
|---|---|
| Bohrung Ø in mm: | 7 mm |
| Wandabstand Mitte-Handlauf: | 75 mm |
| Werkstoff: | S235JR (ST37), roh |
