Door hinge | M24 | for welding | adjustable | V2A
FeNau Ltd
$69.38*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
77
Product number:
11.3583.4
EAN:
4251412910524
Gewicht:
0.71 kg
Description
Product information "Door hinge | M24 | for welding | adjustable | V2A"
Door hinge | M24 | for welding | adjustable | V2A
[ Technical details ] made of AISI 304 or 1.4301 stainless steel – 240-grit finish

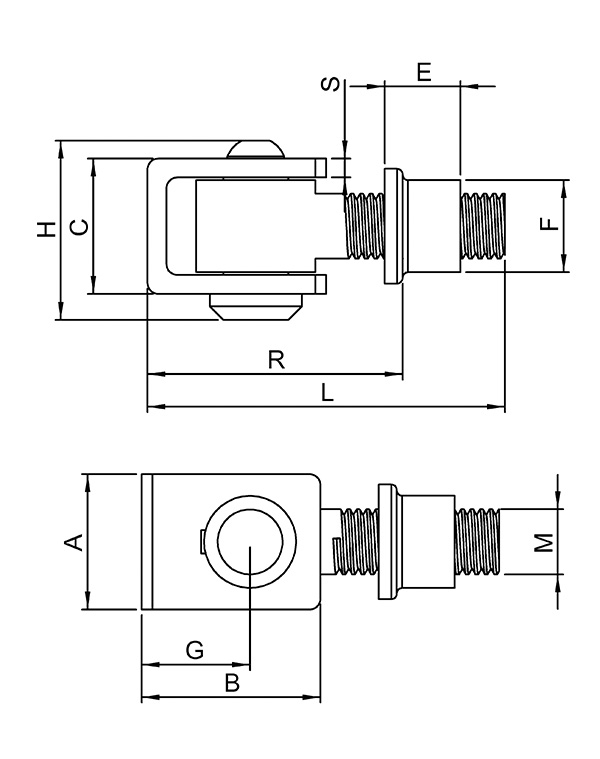

[ Specific details ] Dimension A: 35 mm; Dimension B: 45 mm; Dimension C: 47.5 mm; Dimension E: 22.5 mm; Dimension F: Ø 28.5 mm; Dimension G: 27 mm; Dimension L: 100 mm; Dimension M: M24; Dimension R: 55–85 mm; Dimension S: 5 mm
Load capacity approx. 225 kg per PAIR
Eigenschaften
| Gewinde : | M24 |
|---|---|
| Versand Gurtmasspflichtig: | Nein |
| Werkstoff: | V2A |
