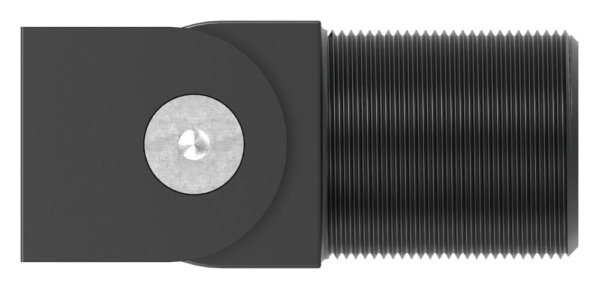

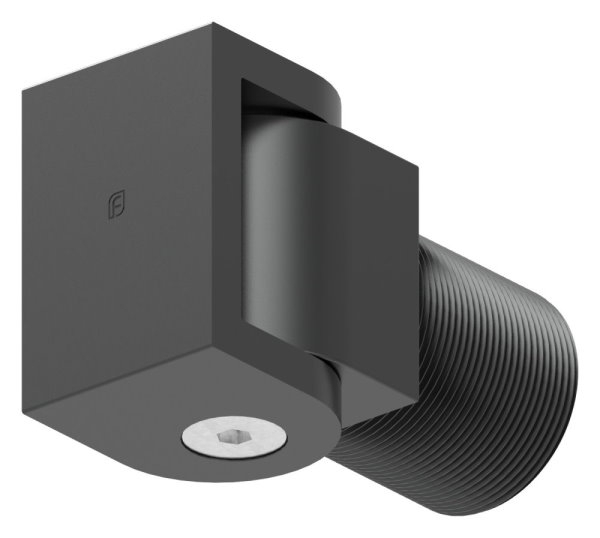

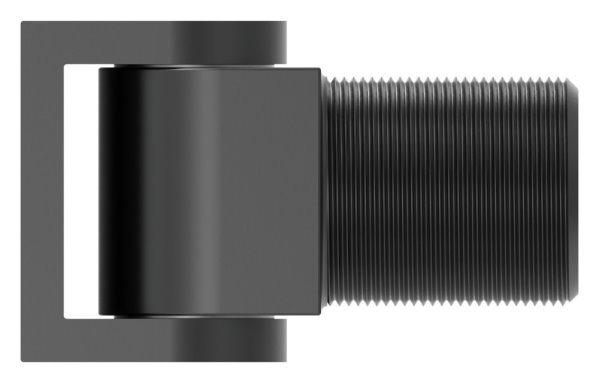

Door hinge without self-closing function, weldable, made of aluminium ITEM: SM W – weld-on version
$95.66*
Available now, delivery time: Lieferzeit 1-2 Werktage
Product information "Door hinge without self-closing function, weldable, made of aluminium ITEM: SM W – weld-on version"
Aluminium hinge without self-closing function, suitable for welding

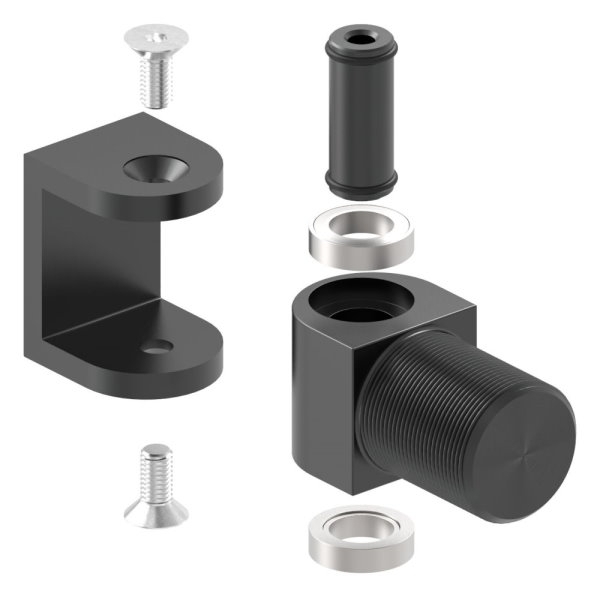

[Description] Without self-closing function, conventional gate hinge[Technical details] With axial thrust bearing, opening angle 180°
[Notes] Weld-on version: The weld-on bracket must be protected against corrosion afterwards! Welding is only possible after galvanising!
Self-closing gate hinges – Ariete series for pedestrian gates
The Ariete series offers high-quality, hydraulically assisted gate hinges for self-closing pedestrian gates. These hinges enable automatic, gentle and safe closing – without any electricity or external control.
Suitable for gate leaves up to 120 kg and up to 1000 mm wide, available in two versions:
- S version: With aluminium bracket for screw mounting
- W version: With iron bracket for welding
Mounting plates for fixing to the gate are available separately.
Advantages at a glance:
- Hydraulic self-closing function
- Adjustable closing speed (models 57 & 108)
- Additional end stop adjustable (Model 108)
- Weather-resistant & durable
- Quiet, controlled closing action
Model overview – Ariete gate hinges
| Model | Function | Special features | Version without hold-open function |
|---|---|---|---|
| Ariete SM | Mechanical, without hydraulics | Can be combined with Ariete 57/108 | – |
| Ariete 57 | Hydraulic, with adjustable closing speed | Smooth, automatic closing | 57 SF – without hold-open function |
| Ariete 108 | Hydraulic, with two adjustment functions (speed & final stroke) | Ideal for gates with an electric lock | 108 SF – without hold-open function |
Technical data:
- Max. gate weight: 120 kg
- Max. gate width: 1000 mm
- Mounting types: Screws (S) or welding (W)
- Material: Aluminium or steel, corrosion-protected
Applications:
- Garden and courtyard gates
- Private homes and apartment blocks
- Commercial access areas
- Gates with access control or electric locking
Thanks to hydraulic self-closing without an external power supply, Ariete gate hinges offer a secure, durable and convenient gate experience. These high-quality hinges prove their worth in practice, particularly at frequently used entrances or in security-related applications.
Tip: For optimum performance, we recommend combining a hydraulic hinge (Ariete 57 or 108) with a mechanical Ariete SM as the load-bearing hinge.
| Gewinde : | M37x1,5 |
|---|---|
| Versand Gurtmasspflichtig: | Nein |
| Werkstoff: | Aluminium |
