Garage grating | Dimensions: 490 x 490 x 30 mm, 30/30 mm | made from S235JR (St37-2), hot-dip galvanised

Skip the photo gallery
Garagen-Gitterrost - Masse- 490x490x30 mm 30-30 mm - aus S235JR -St37-2- im Vollbad feuerverzinkt-23-49493030.7
Garagen-Gitterrost - Masse- 490x490x30 mm 30-30 mm - aus S235JR -St37-2- im Vollbad feuerverzinkt-23-49493030.7
Garagen-Gitterrost - Masse- 490x490x30 mm 30-30 mm - aus S235JR -St37-2- im Vollbad feuerverzinkt-23-49493030.7
Garagen-Gitterrost - Masse- 490x490x30 mm 30-30 mm - aus S235JR -St37-2- im Vollbad feuerverzinkt-23-49493030.7
Garagen-Gitterrost - Masse- 490x490x30 mm 30-30 mm - aus S235JR -St37-2- im Vollbad feuerverzinkt-23-49493030.7
Garagen-Gitterrost - Masse- 490x490x30 mm 30-30 mm - aus S235JR -St37-2- im Vollbad feuerverzinkt-23-49493030.7
Garagen-Gitterrost - Masse- 490x490x30 mm 30-30 mm - aus S235JR -St37-2- im Vollbad feuerverzinkt-23-49493030.7
Garagen-Gitterrost - Masse- 490x490x30 mm 30-30 mm - aus S235JR -St37-2- im Vollbad feuerverzinkt-23-49493030.7

$51.46*

Prices include VAT, plus delivery charges

Stk
Lagerbestand: 0
Product number: 23.49493030.7
EAN: 4251412900723
Gewicht: 4.51 kg
20,000 items in stock
CAD data available after login
Over 200,000 satisfied customers
Worldwide delivery
Description

Product information "Garage grating | Dimensions: 490 x 490 x 30 mm, 30/30 mm | made from S235JR (St37-2), hot-dip galvanised"

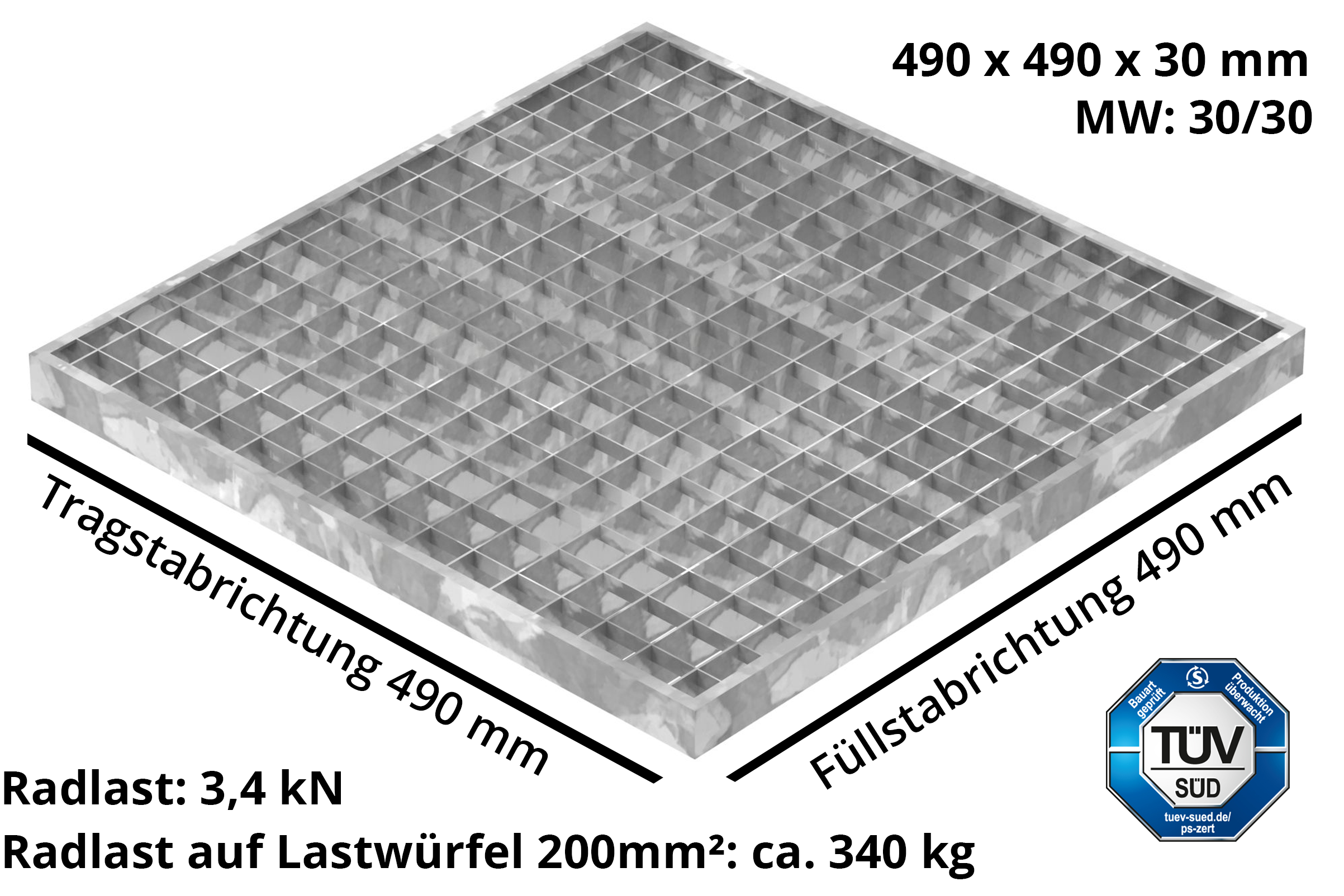

Garage grating | Dimensions: 490x490x30 mm, 30/30 mm | Made from S235JR (St37-2), hot-dip galvanised

[ Technical details ] S235JR (St37-2), hot-dip galvanised
[ Specific details ] Length (crossbar direction): 490 mm; Width (cross-bar direction): 490 mm; Grating height: 30 mm; Cross-bar (height/material thickness): 30/1.5 mm; Mesh size: 30/30 mm
[ Further specific details ] with U-profile edging; Permissible wheel load: 3.40 kN
[ Application note ] Caution: Cross-bar ends must be supported!

Eigenschaften
Breite: 490 mm
Höhe: 30 mm
Länge: 490 mm
Maschenweite | Steps | Drahtgewebe: 30/30 mm
Oberfläche: Feuerverzinkt
Skip the product gallery

Accessories

Zarge - Masse- 500x500x33 mm - fuer Rosthoehe 30 mm - aus S235JR -St37-2- bandverzinkt-23-505030.7
Stk
23.505030.7
Frame | Dimensions: 500x500x33 mm | for grating height 30 mm | made from S235JR (St37-2), hot-dip galvanised
Frame | Dimensions: 500x500x33 mm | for grating height 30 mm | made from S235JR (St37-2), hot-dip galvanised [ Technical details ] S235JR (St37-2), hot-dip galvanised [ Specific details ] Length: 500 mm; Width: 500 mm; Height: 33 mm for grating height: 30 mm [ Further specific details ] Angle steel dimensions: 33/16/2 mm; with 2 small recesses (wall anchors) on each side

Available, : Lieferzeit 1-2 Werktage

$31.16*
1 Paar Sicherheitsketten fuer Gitterroste MW 30-30 mm aus St37 feuerverzinkt-26-S-KETTE.7 1 Paar Sicherheitsketten fuer Gitterroste MW 30-30 mm aus St37 feuerverzinkt-26-S-KETTE.7
Paar
26.S-KETTE.7
1 pair of safety chains for MW 30/30 mm grating made from St37 hot-dip galvanised steel
Safety chains | 1 pair | for grating with 30/30 mm mesh, and more | made from St37, hot-dip galvanised [ Technical details ] made from St37, hot-dip galvanised [ Specific details ] consisting of two chains, each 700 mm long, with mounting brackets, mounting brackets, split pins, screws and dowels [ Further specific details ] for mesh sizes: 20/20 – 20/50 mm | 30/20 – 30/60 mm | 40/30 – 40/60 mm

Available, : Lieferzeit 1-2 Werktage

$29.92*
Sicherheitsketten fuer Gitterroste fuer MW 30-30 30-10 34-38 mm aus Stahl- feuerverzinkt- 1 Paar-26-S-KETTE-M.7 Sicherheitsketten fuer Gitterroste fuer MW 30-30 30-10 34-38 mm aus Stahl- feuerverzinkt- 1 Paar-26-S-KETTE-M.7
Stk
26.S-KETTE-M.7
Safety chains for grating, suitable for MW 30/30, 30/10 and 34/38 mm, made of steel, hot-dip galvanised, 1 pair
Safety chains | 1 pair | for grating with 30/30 mm mesh, and more | made from St37, hot-dip galvanised [ Technical details ] made from St37, hot-dip galvanised [ Specific details ] consisting of two chains, each 800 mm long, with mounting brackets, screws and wall plugs [ Further specific details ] for mesh sizes: 30/30 mm | 34/38 mm | 30/10 mm

Available, : Lieferzeit 1-2 Werktage

$17.96*
Schwalbenlasche MW 30-30 mm Stahl- feuerverzinkt-26-SCHWALBEN.7 Schwalbenlasche MW 30-30 mm Stahl- feuerverzinkt-26-SCHWALBEN.7
Stk
26.SCHWALBEN.7
Swallow-tail bracket, 30/30 mm, steel, hot-dip galvanised
Swallow-tail bracket | loose | for MW 30/30 mm | made from S235JR / ST37 – hot-dip galvanised [ Technical details ] made from S235JR / ST37 - hot-dip galvanised [ Specific details ] Standard top section for 33/34 mm spacing; minimum crossbar spacing 27 mm; use of M8 hexagon head bolts – DIN 933 for assembly [ further specific details ] crossbar thickness for 33.33 mm crossbar spacing: 2 to 4 mm; crossbar thickness for 34.33 mm crossbar spacing: 2 to 5 mm

Available, : Lieferzeit 1-2 Werktage

$0.86*
Gitterrost-Klemme Rosthoehe 30mm MW- -30 mm - 30 mm- S235JR - ST37 – feuerverzinkt-26-KLEMME01.7 Gitterrost-Klemme Rosthoehe 30mm MW- -30 mm - 30 mm- S235JR - ST37 – feuerverzinkt-26-KLEMME01.7
Stk
26.KLEMME01.7
Grating clamp, grating height 30 mm, MW: (30 mm / 30 mm) S235JR / ST37 – hot-dip galvanised
Complete Grating Clamp Set – Maximum Safety and Stability for Construction Projects Ensure the highest quality and reliability with our complete grating clamp set, ideal for a grating height of 30 mm. This set guarantees a durable and stable fastening for all types of gratings and is the perfect choice for professional construction projects. Technical Details Manufactured from high-quality S235JR / ST37 steel and hot-dip galvanised to offer maximum corrosion resistance and durability. This set is designed for a grating height of 30 mm and a mesh size of 30/30 mm, ensuring reliable installation. Complete set – everything you need for installation The complete grating clamp set includes: Upper bracket (swallowtail bracket) Clamp lower section Hexagon bolt M8 x 60 mm M8 square nut Applications and benefits This grating clamp is ideal for a wide range of applications in the construction industry and ensures a secure and firm connection between the grating and the substrate. In addition to high stability, it offers an aesthetically pleasing design and simple, quick installation. Order now and equip your construction projects with the highest quality and stability!

Available, : Lieferzeit 1-2 Werktage

$2.88*
Doppelklemme fuer Rosthoehe 30 mm MW 30-30 mm aus St37- feuerverzinkt-26-DKLEMME01.7 Doppelklemme fuer Rosthoehe 30 mm MW 30-30 mm aus St37- feuerverzinkt-26-DKLEMME01.7
Stk
26.DKLEMME01.7
Double clamp for grating height 30 mm, MW 30/30 mm, made of St37 steel, hot-dip galvanised
Double grating clamp (complete set) | for grating height: 30 mm | MW 30/30 mm | made from S235JR / ST37 – hot-dip galvanised [ Technical details ] made from S235JR / ST37 - hot-dip galvanised; for grating height: 30 mm; for mesh size: 30/30 mm [ Specific details ] comprising: 2 upper brackets (swallow-tail brackets), lower clamp section (160/140 mm) with 2 slotted holes (45 mm), 2 M8 x 60 mm hexagon head bolts and 2 M8 square nuts

Available, : Lieferzeit 1-2 Werktage

$5.12*
