Gate hinge eye bolt M24 x 160 mm | Fully hot-dip galvanised | Includes nuts & washers
FeNau Ltd
$13.66*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
301
Product number:
30.3524.8
EAN:
4251412962165
Gewicht:
0.79 kg
Description
Product information "Gate hinge eye bolt M24 x 160 mm | Fully hot-dip galvanised | Includes nuts & washers"
Gate hinge eye bolt M24 x 160 mm | Fully hot-dip galvanised
This extremely robust M24 eye bolt is designed for the heaviest gate systems, industrial gates and professional fencing. Thanks to the full hot-dip galvanisation of the bolt, nuts and washers, this set offers first-class corrosion protection for long-term outdoor use.
Technical data & dimensions
| Thread | M24 |
| Dimension A (centre of hole to end) | 160 mm |
| Dimension B (thread length) | 140 mm |
| Hole diameter (Ø) | 20.5 mm |
| Surface | Hot-dip galvanised (rust protection) |

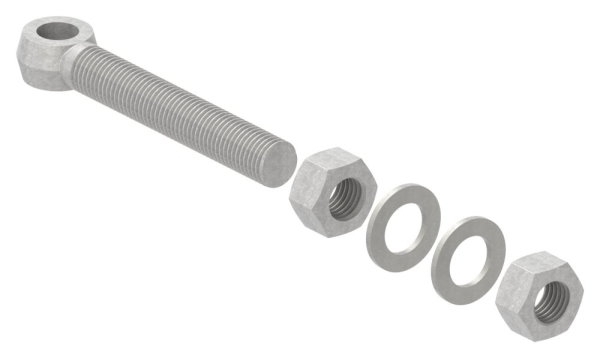

Contents (set)
- 1x eye bolt M24 (hot-dip galvanised)
- 2x Hex nut (hot-dip galvanised)
- 2x washers (hot-dip galvanised)
Heavy-duty quality:
The M24 version guarantees maximum stability. The hot-dip galvanisation ensures that the threaded parts remain smooth-running and adjustable even after years of outdoor use.
Eigenschaften
| Gewinde : | M24 |
|---|---|
| Versand Gurtmasspflichtig: | Nein |
| Werkstoff: | Stahl roh |
