Glass clamp AbZ 55x65x37.5 mm Flat, for 11.52 mm laminated safety glass, No | Without retaining pin, No | Without retaining base
Anschluss:
Flach
Glasklemme AbZ Sicherungsboden:
Nein | Ohne Sicherungsboden
Glasklemme AbZ Sicherungsstift:
Nein | Ohne Sicherungsstift
Gummi:
für 11,52 mm VSG Glas
FeNau Ltd
$29.62*
Available now, delivery time: Lieferzeit 5-10 Werktage
Stock:
453
Product number:
10.MODELL35.1.12.1.1
EAN:
4251412984150
Weight:
0.44 kg
Description
Product information "Glass clamp AbZ 55x65x37.5 mm Flat, for 11.52 mm laminated safety glass, No | Without retaining pin, No | Without retaining base"

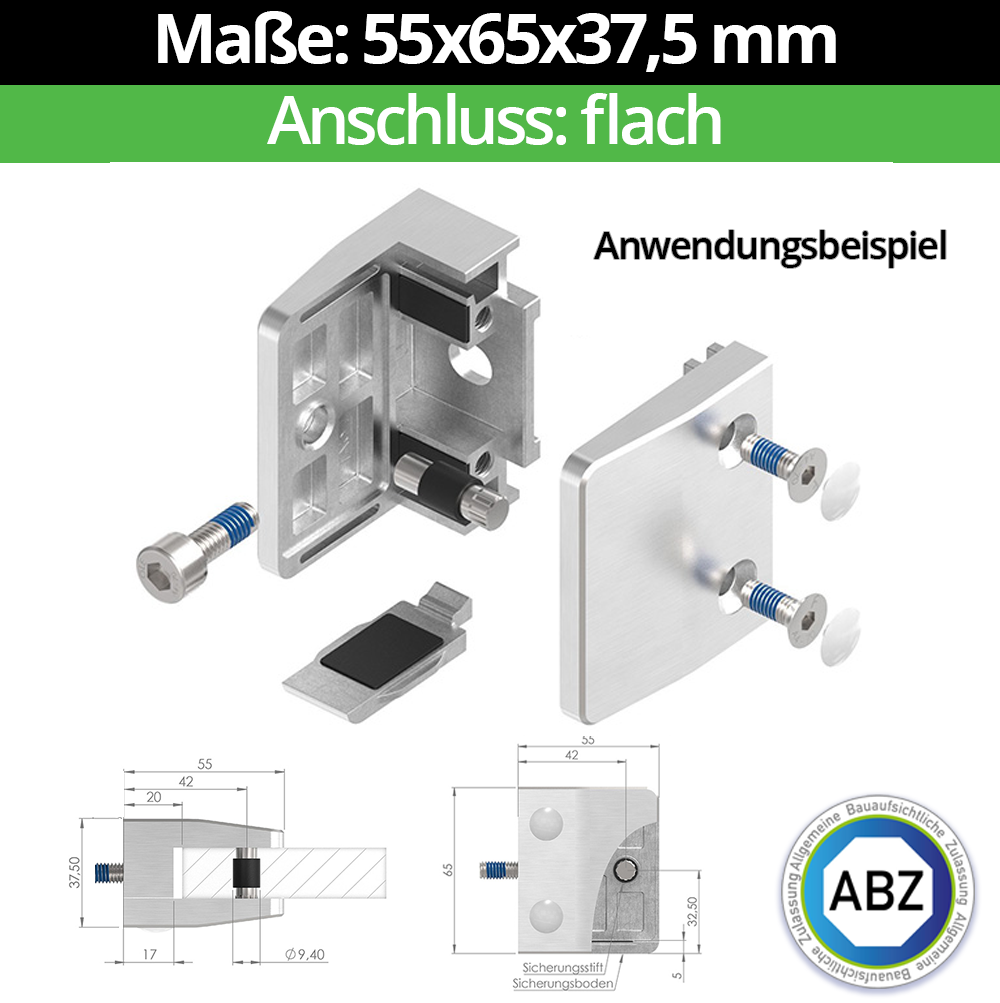

Glass clamp 55x65x37.5 mm AbZ for connection ⌂ Flat | Ø 42.4 mm | Ø 48.3 mm | 60.3 mm
Made of stainless steel 1.4301/V2A/AISI 304
Model 34 AbZ / square
Dimensions: 55x65x37.5 mm
With general building approval
Includes fixing screw M8 x 20, clamping screws M6 x 16 and cover plates
Suitable for indoor and outdoor use
Product safety (GPSR)
Manufacturer / responsible person in the EU: FeNau GmbH, Veit-Stoß-Str. 20, 90579 Langenzenn, Germany · info@fenau.eu · +49 911 97917230
Safety information: metal products may have sharp edges – wear protective gloves. Observe permissible loads and installation instructions; secure components properly before use.
