Glass sliding door system, top-hung AL, 3000 mm, soft-close, 8–12 mm glass

FeNau Ltd

Glastuer Schiebetuer System Oberfuehrung AL- 3000mm- Softstop- 8-12mm Glas-89-11GSALP8106NESET-A.4

$1,541.54*

Prices exclude VAT and are subject to delivery charges

Available now, delivery time: Lieferzeit 3-5 Werktage

Stock: 5

Product number: 89.11GSALP8106NESET-A.4

Length: 3000 mm

Weight: 9.776 kg

20,000 items in stock

CAD data available after login

Over 200,000 satisfied customers

Worldwide delivery

Product information "Glass sliding door system, top-hung AL, 3000 mm, soft-close, 8–12 mm glass"

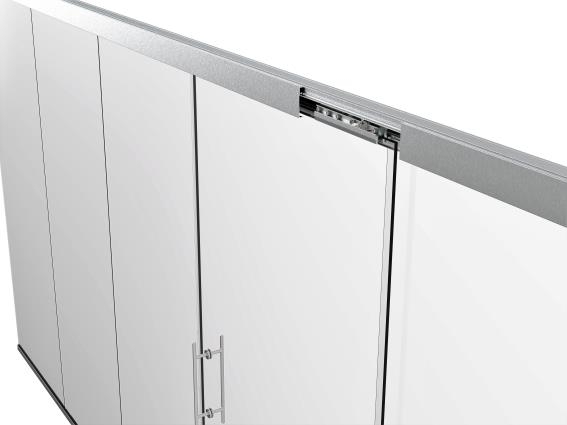

This high-quality sliding door system made from anodised aluminium offers an elegant and functional solution for glass doors in modern interiors. The hardware set is specially designed for the top-hung installation of sliding glass doors in combination with railing or solid glazing. It is ideal for use in offices, medical practices, hotels or even in sophisticated private living spaces where design, durability and ease of use are prioritised.

Technical details and material

Material: The system is made of robust aluminium with an anodised finish, which not only ensures an attractive appearance but also guarantees high resistance to corrosion and wear.
Glass thickness: Suitable for glass doors with a thickness of 8 mm to 12 mm.
Sash weight: The system is designed for door sashes with a recommended maximum weight of 80 kg.
Length: The profile guide has a total length of 3000 mm.
Mounting: Designed for secure wall mounting.
Self-closing mechanism: Integrated soft-stop mechanism (continuous locking) for smooth and controlled opening and closing of the door.
Glass processing: No hole is required in the glass, which simplifies installation and preserves the integrity of the glass panel.

Contents and application

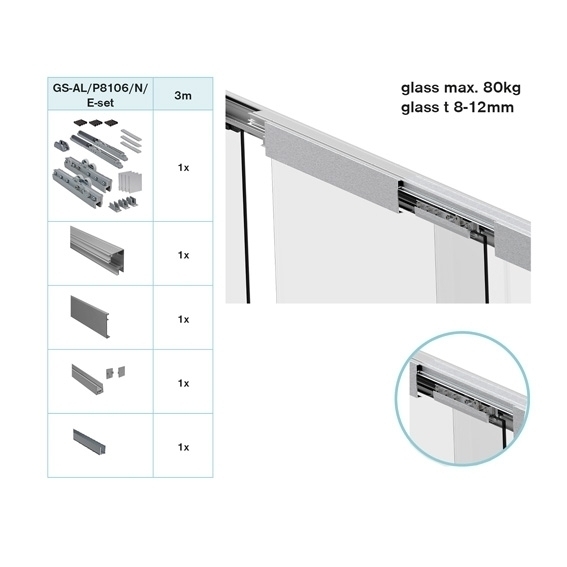

The fitting set is supplied as a complete set and includes all essential components for installing a sliding glass door:

2x rollers for the door panels

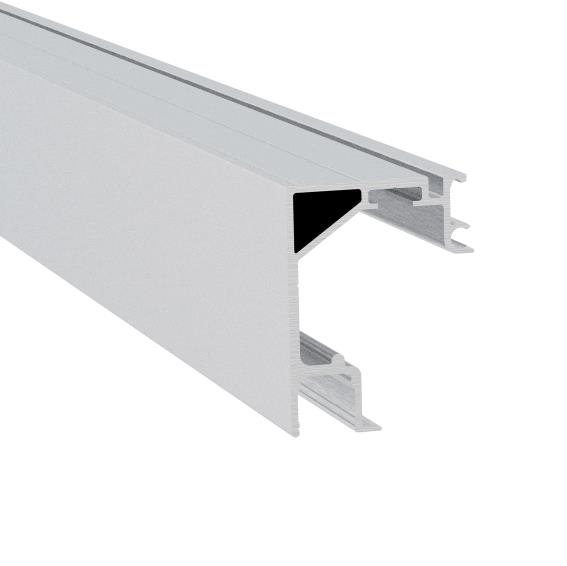

1x aluminium profile guide

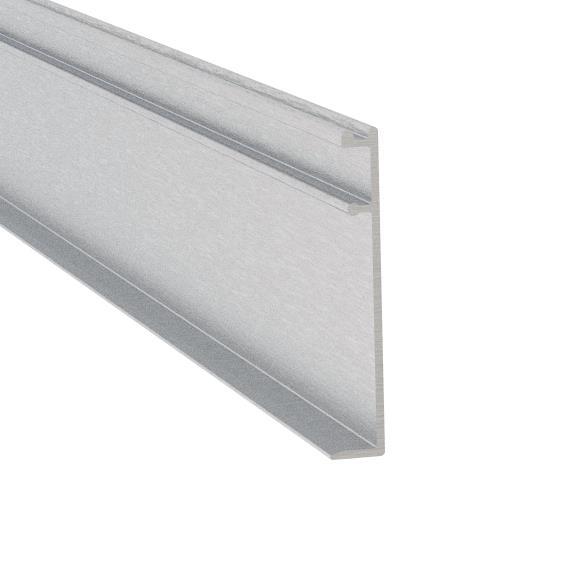

1x cover profile

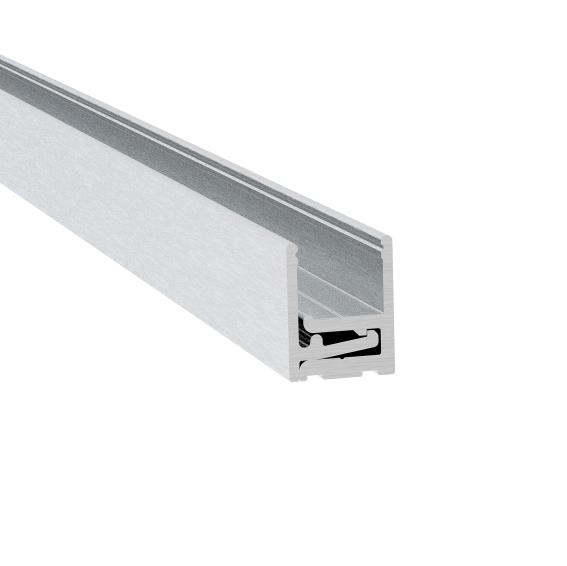

1x U-profile cover
End caps for the profile ends
2x Softstop (endless locking mechanism)
1x floor guide

This system offers metal fabricators, locksmiths, craft workshops and construction companies a reliable and aesthetically pleasing solution for high-quality glass door applications. Technically-savvy DIY enthusiasts also benefit from the well-thought-out design and simple installation. Please note that the rubber seal is not included and must be purchased separately.

Länge:	3000 mm
Werkstoff:	Aluminium

Product safety (GPSR)

Manufacturer / responsible person in the EU: FeNau GmbH, Veit-Stoß-Str. 20, 90579 Langenzenn, Germany · info@fenau.eu · +49 911 97917230

Safety information: metal products may have sharp edges – wear protective gloves. Observe permissible loads and installation instructions; secure components properly before use.

All product safety information → · Your legal guarantee rights →

Zubehör

89.11GSPVCZP212712NT-A.4

Gummidichtung Gummi für Glas 12 mm L=3000 mm für Glasprofil 21x27 mm

Gummidichtung für Glasprofile Diese Gummidichtung dient der sicheren und passgenauen Montage von Glasscheiben in dafür vorgesehenen Aluminiumprofilen. Sie sorgt für einen festen Halt des Glases, verhindert ein Verrutschen oder Klappern und schützt das Glas vor direktem Kontakt mit dem Metall. Die Dichtung ist speziell für das Glasprofil GS-AL/ZP-21x27 konzipiert und eignet sich für den Einsatz in Glasgeländern, Trennwänden oder anderen Glaskonstruktionen. Technische Details Produkttyp: Gummidichtung Material: Gummi Länge: 3000 mm Geeignet für Glasstärke: 12 mm Kompatibilität: Passend für Glasprofil GS-AL/ZP-21x27 Anwendung und Montage Die Dichtung wird vor dem Einsetzen der Glasscheibe in die dafür vorgesehene Nut des Klemmprofils eingelegt. Durch ihre Formgebung klemmt sie das Glas sicher und gleicht eventuelle Toleranzen aus. Das Material ist flexibel und lässt sich einfach auf die benötigte Länge zuschneiden und montieren. Lieferumfang Im Lieferumfang ist eine Gummidichtung mit einer Länge von 3000 mm enthalten.

Available, : Lieferzeit 1-2 Werktage

$15.38*

89.GSALZP21X27NEDIEL

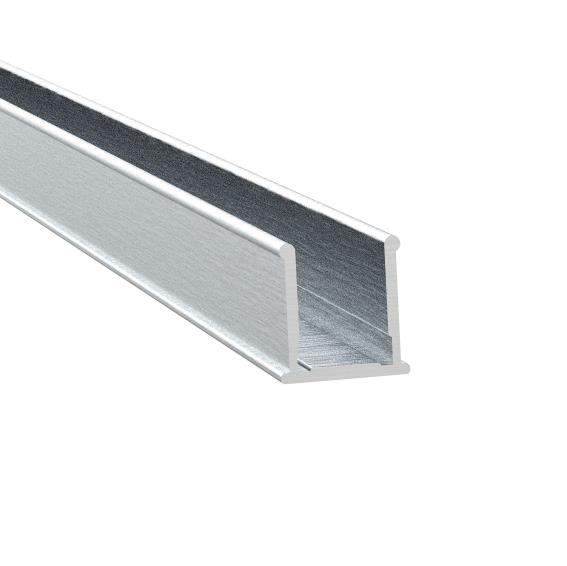

U-Profil für Glas Aluminium eloxiert 21 x 27 mm L=3000 mm für Glas 8-12 mm

U-Profil für die Glasmontage aus Aluminium Dieses U-Profil aus Aluminium dient der fachgerechten Aufnahme und Führung von Glasscheiben. Mit seiner eloxierten Oberfläche bietet es eine ansprechende Optik und eine widerstandsfähige Schutzschicht. Das Profil ist für den Einsatz im Innen- und Außenbereich konzipiert und eignet sich für verschiedene Konstruktionen, bei denen Glas sicher gehalten werden muss. Technische Details Produkttyp: U-Profil / Verglasungsprofil Material: Aluminium Oberfläche: Eloxiert Breite: 21 mm Höhe: 27 mm Länge: 3000 mm Geeignet für Glasstärke: 8,00 mm, 10,00 mm, 12,00 mm Gewicht: 2,06 kg Anwendung und Montage Das Profil eignet sich ideal als Glashalteprofil für Trennwände, als Führungsschiene für Glasschiebetüren oder für den Bau von Vitrinen. Die Montage erfolgt je nach Untergrund durch Verschrauben oder Kleben. Bitte beachten Sie, dass das Profil ohne Gummidichtung geliefert wird. Passende Dichtungen müssen separat erworben werden, um einen festen und klapperfreien Sitz des Glases zu gewährleisten.

Available, : Lieferzeit 3-5 Werktage

$342.78*

89.11GSALP8106DIEL-A.4

Accessory set for sliding glass system (8–12 mm glass thickness), anodised aluminium

The FeNau accessory set for sliding glass systems offers a high-quality, comprehensive solution for installing fixed sliding glass doors and walls. This set is specially designed to ensure the smooth and safe operation of your sliding glass structure. It is aimed at metalworkers, locksmiths and craft businesses that value precision and durability. Technical details and scope of delivery The accessory set is made from robust aluminium and features an anodised finish, which ensures increased corrosion resistance and an attractive appearance. The components are precisely matched to one another, enabling easy installation and reliable performance in daily use. Contents: 2x carriages: For stable and smooth guidance of the glass element. 2x dampers with stops: Ensure gentle deceleration and secure positioning of the glass. 2x side covers: For an aesthetic finish at the ends of the system. 1x bottom guide: Stabilises the glass element at the bottom. Seals: Suitable for glass thicknesses of 8 mm, 10 mm or 12 mm, for secure and tight glazing. Applications and benefits This accessory set is ideal for use in modern architectural projects, offices, retail premises or even in discerning private settings. The high-quality workmanship and well-thought-out design guarantee a long service life and minimal maintenance. Benefit from simple installation and a functional aesthetic that perfectly complements your sliding glass systems.

Available, : Lieferzeit 1-2 Werktage

$475.54*
