Glass support bracket, Ø 30 mm, V2A, connection: pipe Ø 33.7 mm

$9.88*

Prices include VAT, plus delivery charges

Available now, delivery time: Lieferzeit 1-2 Werktage

Stk

Lagerbestand: 385

Product number: 10.5033.4

EAN: 4251412931123

Länge: 30 mm

Gewicht: 0.1 kg

20,000 items in stock

CAD data available after login

Over 200,000 satisfied customers

Worldwide delivery

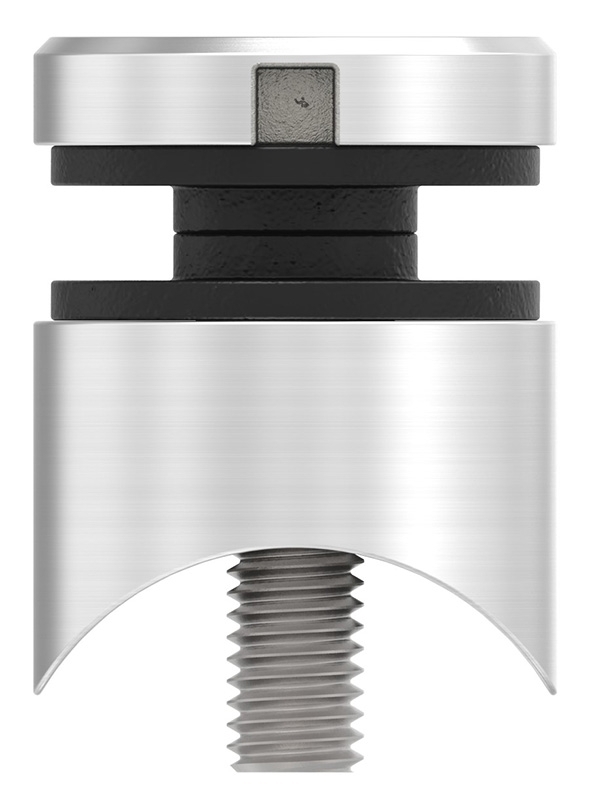

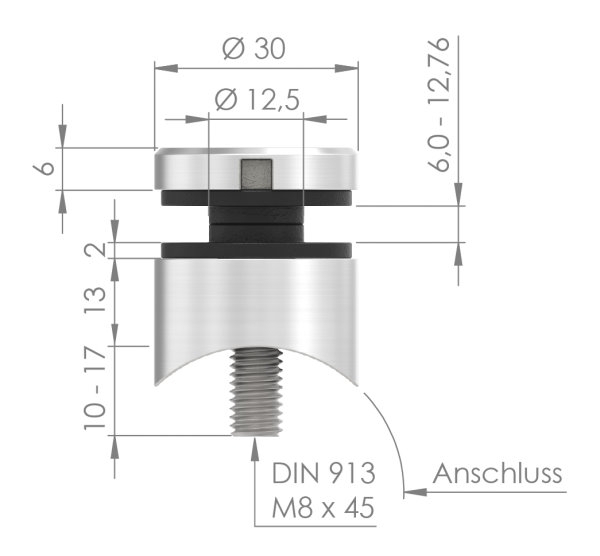

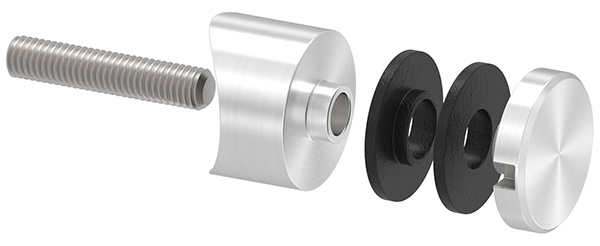

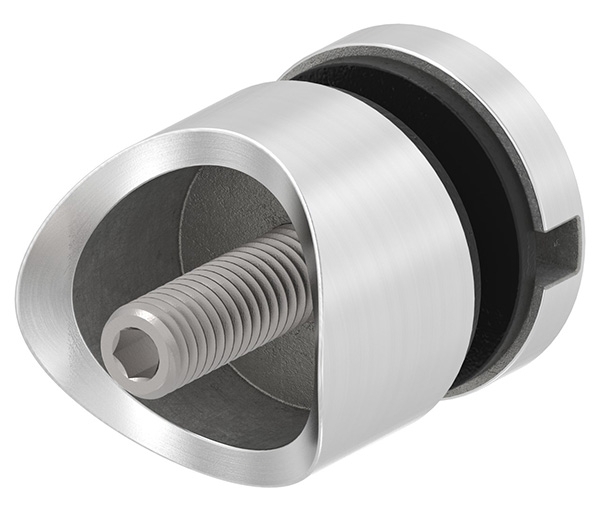

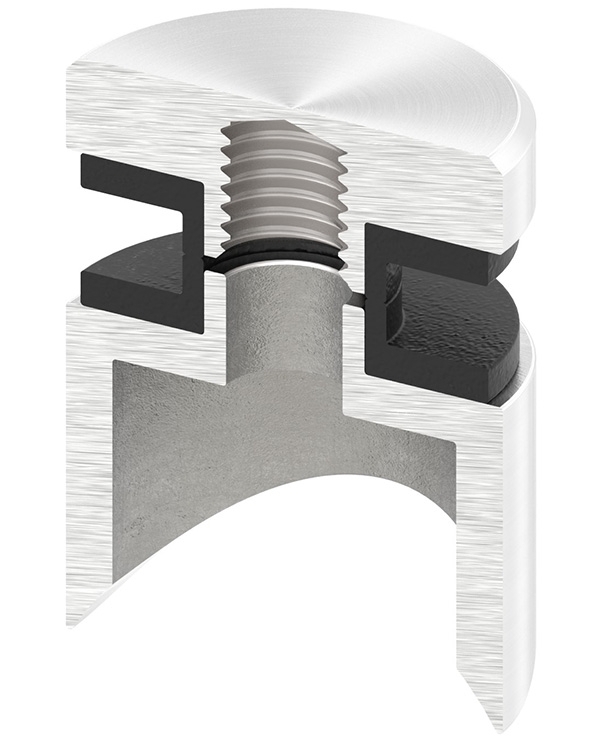

Product information "Glass support bracket, Ø 30 mm, V2A, connection: pipe Ø 33.7 mm"

30 mm V2A glass point holder for connection Ø 33.7 mm

Made of stainless steel 1.4301/V2A/AISI 304
Diameter: 30 mm, with M8 x 40 mm

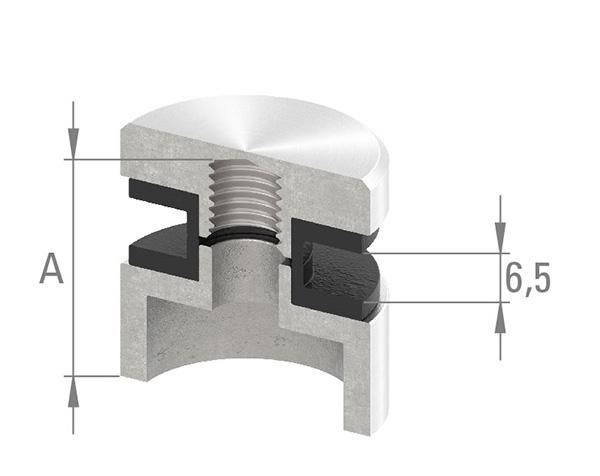

threaded screw Clamping range: 6.5–16 mm
Glass bore: min. 16 mm
Distance: wall to glass pane 15 mm Rubber pad thickness 2 mm
Suitable for indoor and outdoor use

Durchmesser:	30mm
Werkstoff:	V2A (AISI304) 1.4301
Ø Für Rohr \| Ø Außendurchmesser \| Ø Anschluss:	Ø 33.7mm (1″)

Accessories

1 Paar Ersatzgummis fuer Glaspunkthalter Ø 30 mm – Gummieinlage - Dichtung-10-5000.0

Stk

10.5000.0

1 pair of replacement rubber inserts for glass holders (Ø 30 mm) – rubber insert & seal

1 pair of rubber pads (Ø 30 mm) for 30 mm glass point fixings

$1.54*

Hakenschluessel fuer Glaspunkthalter Ø 30 mm-10-5001.4

Stk

10.5001.4

Hook wrench for glass point holders, Ø 30 mm

Available, : Lieferzeit 1-2 Werktage

$11.92*

10.50M830.4

M8 x 30 mm threaded pin, V2A

M8x30 mm V2A threaded pin Weight: 0.01 kg

Variants from $1.64*

Available, : Lieferzeit 1-2 Werktage

$1.74*

10.50M835.4

M8x35 mm threaded pin, V2A

M8x35 mm V2A threaded pin Weight: 0.03 kg

Available, : Lieferzeit 1-2 Werktage

$1.64*

10.50M840.4

M8 x 40 mm threaded pin, V2A

M8x40 mm V2A threaded pin Weight: 0.01 kg

Variants from $1.64*

Available, : Lieferzeit 1-2 Werktage

$1.80*

10.50M850.4

M8 x 50 mm threaded pin, V2A

M8x50 mm V2A threaded pin Weight: 0.02 kg

Variants from $1.64*

Available, : Lieferzeit 1-2 Werktage

$2.08*

10.50M860.4

M8 x 60 mm threaded pin, V2A

M8x60 mm V2A threaded pin Weight: 0.02 kg

Variants from $1.64*

Available, : Lieferzeit 1-2 Werktage

$2.34*

10.50M870.4

M8 x 70 mm threaded pin, V2A

M8x70 mm V2A threaded pin Weight: 0.04 kg

Variants from $1.64*

Available, : Lieferzeit 1-2 Werktage

$3.24*

10.50M880.4

M8x80 mm V2A threaded pin

M8x80 mm V2A stainless steel threaded pin 00913.910.0080.080 Threaded pin HS code: 73181535 Weight: 0.03 kg

Variants from $1.64*

Available, : Lieferzeit 1-2 Werktage

$3.50*

10.50M8100.4

M8 x 100 mm threaded pin, V2A

M8x100 mm V2A threaded pinWeight: 0.03 kg

Variants from $1.64*

Available, : Lieferzeit 1-2 Werktage

$5.38*
