Grating step 1000 x 270 mm, mesh size 30/10, thickness 35/2 mm, slip resistance class R10
FeNau Ltd
$79.16*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
96
Product number:
24.1002731352.7
EAN:
4067727002119
Gewicht:
8.01 kg
Description
Product information "Grating step 1000 x 270 mm, mesh size 30/10, thickness 35/2 mm, slip resistance class R10"
MEASTEP metal step Dimensions: 1000 x 270 mm, 30/10 mm, galvanised
[ Technical details ] made from S235JR (St37-2), hot-dip galvanised
[ Specific details ] Length (support bar direction): 1000 mm; Width (filler bar direction): 270 mm; Mesh size: 30/10 mm; Support bar: 35/2 mm

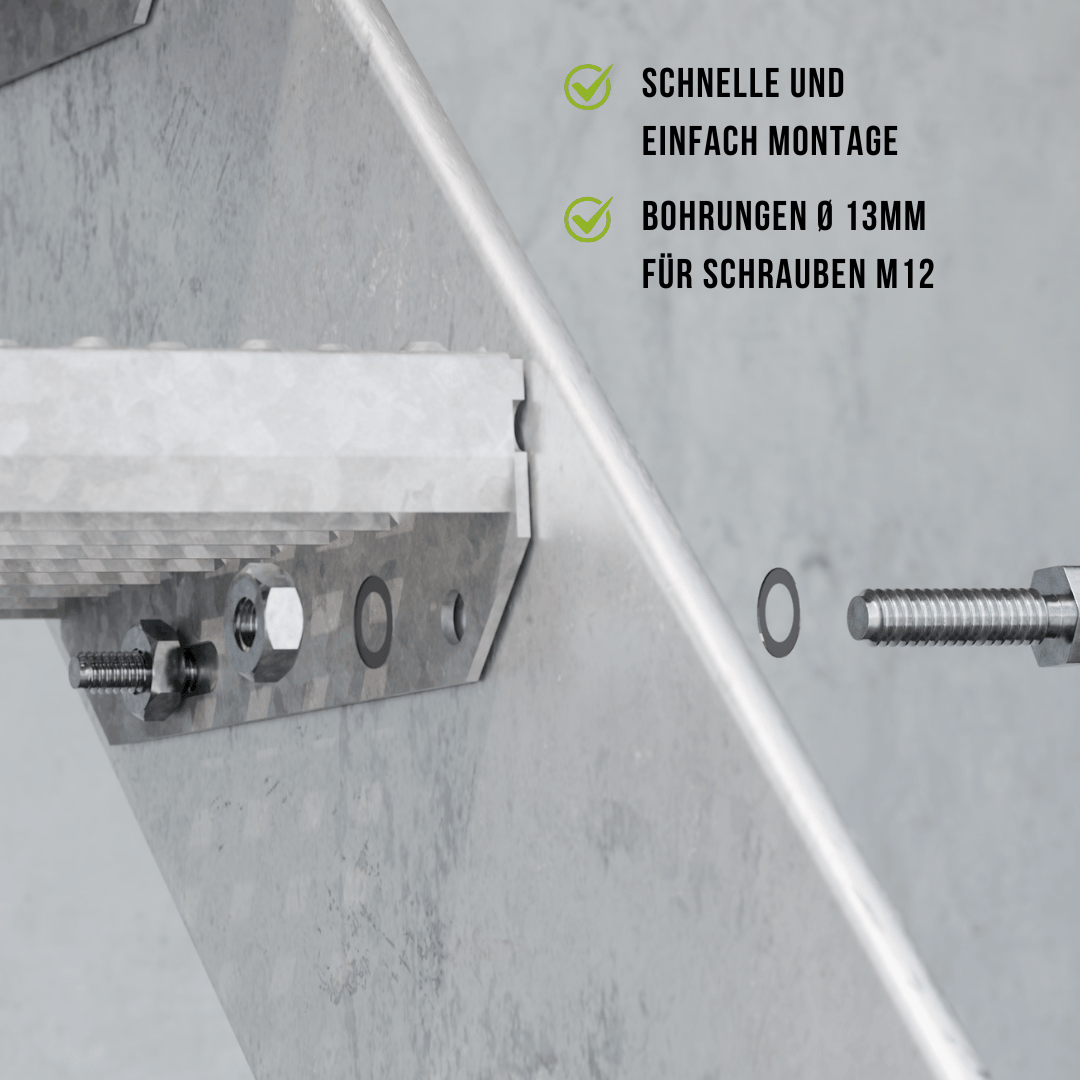

[Further specific details] With flanges and nosing
[Certificate] Slip resistance class: R10; Drilling in accordance with DIN 24531; Permissible single force 1.5 kN on a 100 x 100 mm load cube with a maximum deflection of 1/300 mm or 6 mm in accordance with DIN EN ISO 14122-3.
[ Manufacturer ] MEA Group GmbH, Product MEASTEP Standard Step
Eigenschaften
| Maschenweite | Steps | Drahtgewebe: | 30/10mm |
|---|---|
| Rutschhemmung | Steps: | R10 |
| Stufenbreite | Steps | Stufenlänge: | 1000mm |
| Stufentiefe | Steps | Auftritt : | 270mm |
