Grating step 1000 x 305 MW 30/10 TS 35/2 Slip resistance R10
FeNau Ltd
$85.52*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
110
Product number:
24.1003030352.8
EAN:
4067727001907
Gewicht:
8.757 kg
Description
Product information "Grating step 1000 x 305 MW 30/10 TS 35/2 Slip resistance R10"

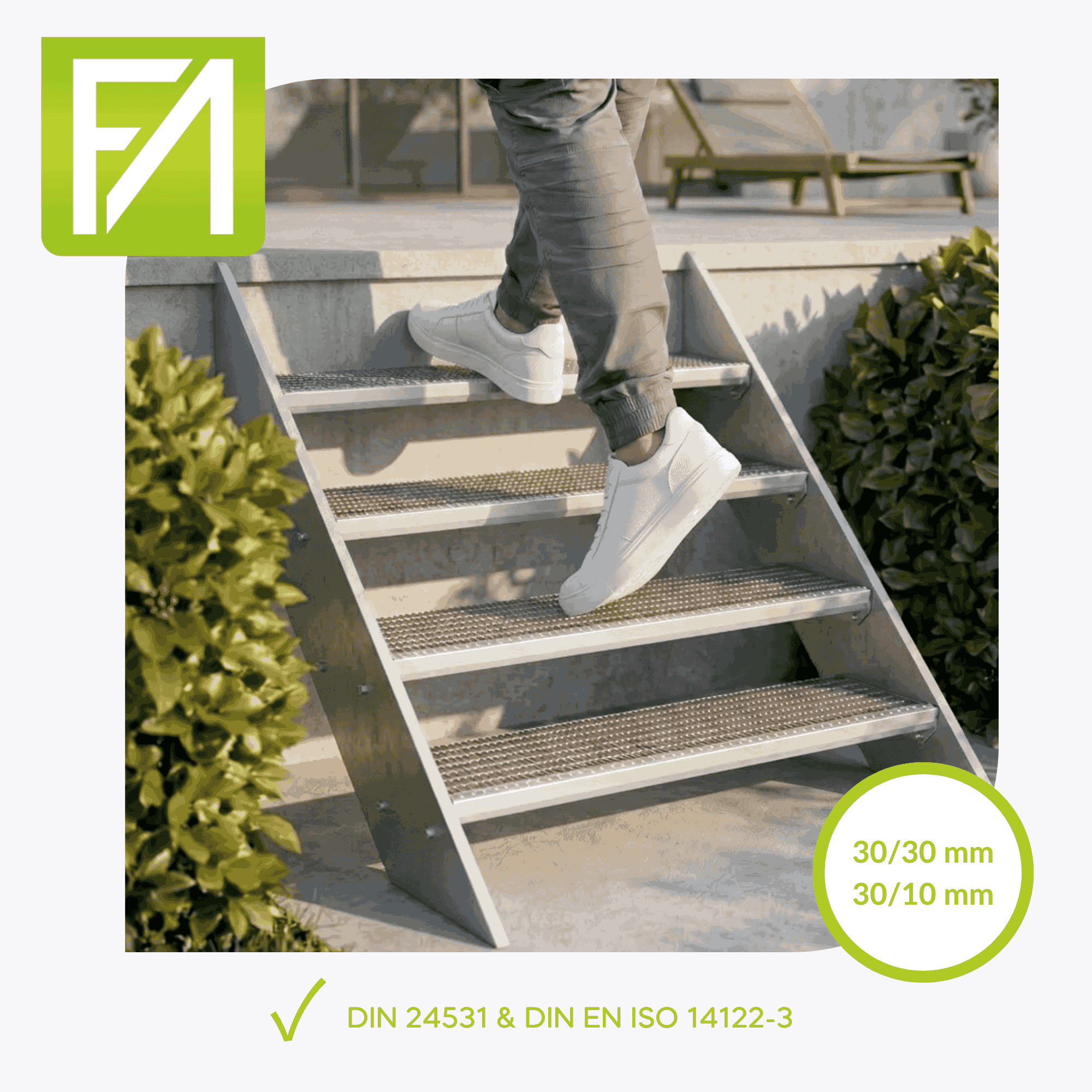

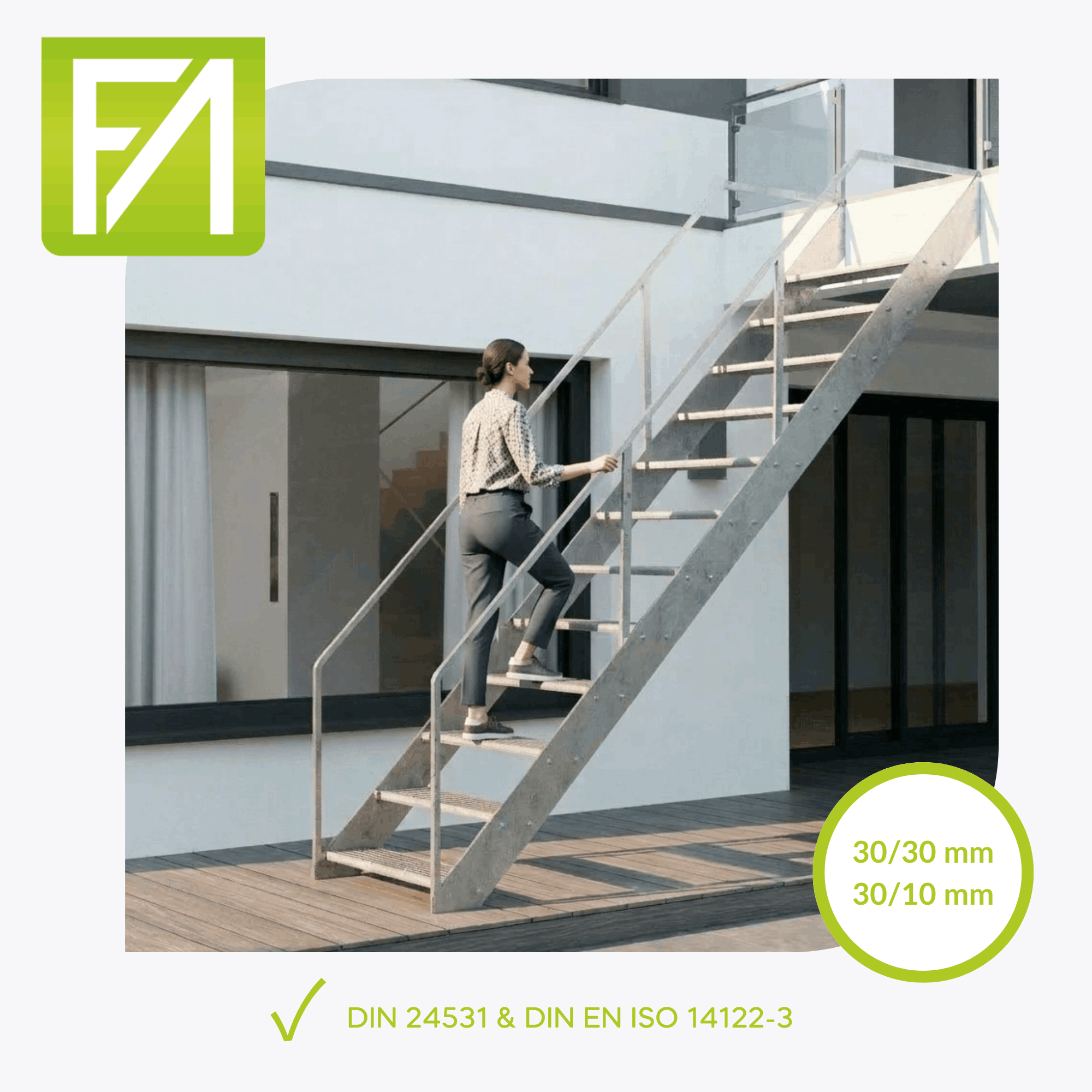

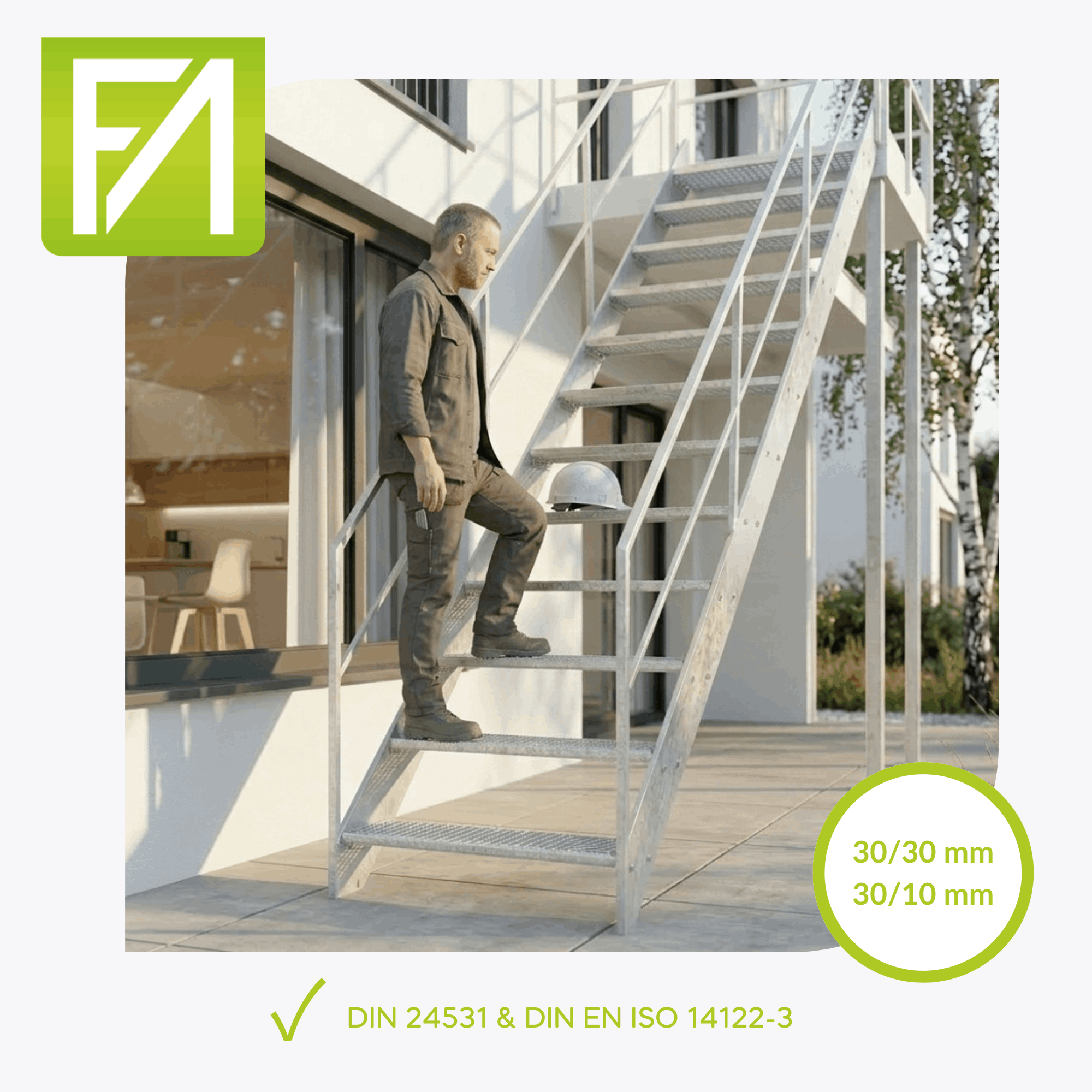

MEASTEP metal step Dimensions: 1000 x 305 mm, 30/10 mm, galvanised
[ Technical details ] made from S235JR (St37-2), hot-dip galvanised
[ Specific details ] Length (support bar direction): 1000 mm; Width (filling bar direction): 305 mm; Mesh size: 30/10 mm; Support bar: 35/2 mm
[ Further specific details ] With flanges and toe-off edge
[ Certificate ] Slip resistance class: R10; Drilling in accordance with DIN 24531; Permissible single force 1.5 kN on a 100 x 100 mm load cube with a maximum deflection of 1/300 mm or 6 mm in accordance with DIN EN ISO 14122-3.
[ Manufacturer ] MEA Group GmbH, product MEASTEP standard step
Eigenschaften
| Maschenweite | Steps | Drahtgewebe: | 30/10mm |
|---|---|
| Rutschhemmung | Steps: | R10 |
| Stufenbreite | Steps | Stufenlänge: | 1000mm |
| Stufentiefe | Steps | Auftritt : | 305mm |
