Grating step 1200 x 240 mm, mesh size 30/30, thickness 40/2 mm, slip resistance class R10

Skip the photo gallery
Gitterroststufe 1200 x 240 MW 30-30 TS 40-2 Rutschhemmung R10-24-1202430402.7
Gitterroststufe 1200 x 240 MW 30-30 TS 40-2 Rutschhemmung R10-24-1202430402.7
Gitterroststufe 1200 x 240 MW 30-30 TS 40-2 Rutschhemmung R10-24-1202430402.7
Gitterroststufe 1200 x 240 MW 30-30 TS 40-2 Rutschhemmung R10-24-1202430402.7
Gitterroststufe 1200 x 240 MW 30-30 TS 40-2 Rutschhemmung R10-24-1202430402.7
Gitterroststufe 1200 x 240 MW 30-30 TS 40-2 Rutschhemmung R10-24-1202430402.7
Gitterroststufe 1200 x 240 MW 30-30 TS 40-2 Rutschhemmung R10-24-1202430402.7
Gitterroststufe 1200 x 240 MW 30-30 TS 40-2 Rutschhemmung R10-24-1202430402.7
Gitterroststufe 1200 x 240 MW 30-30 TS 40-2 Rutschhemmung R10-24-1202430402.7
Gitterroststufe 1200 x 240 MW 30-30 TS 40-2 Rutschhemmung R10-24-1202430402.7
Gitterroststufe 1200 x 240 MW 30-30 TS 40-2 Rutschhemmung R10-24-1202430402.7
Gitterroststufe 1200 x 240 MW 30-30 TS 40-2 Rutschhemmung R10-24-1202430402.7
Gitterroststufe 1200 x 240 MW 30-30 TS 40-2 Rutschhemmung R10-24-1202430402.7
Gitterroststufe 1200 x 240 MW 30-30 TS 40-2 Rutschhemmung R10-24-1202430402.7
Gitterroststufe 1200 x 240 MW 30-30 TS 40-2 Rutschhemmung R10-24-1202430402.7
Gitterroststufe 1200 x 240 MW 30-30 TS 40-2 Rutschhemmung R10-24-1202430402.7

$77.38*

Prices include VAT, plus delivery charges

Available now, delivery time: Lieferzeit 1-2 Werktage

Stk
Lagerbestand: 45
Product number: 24.1202430402.7
EAN: 4001990114278
Gewicht: 8.5 kg
20,000 items in stock
CAD data available after login
Over 200,000 satisfied customers
Worldwide delivery
Description

Product information "Grating step 1200 x 240 mm, mesh size 30/30, thickness 40/2 mm, slip resistance class R10"

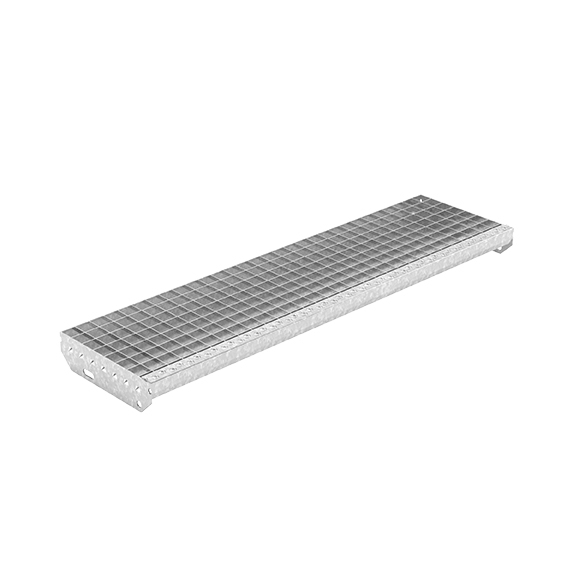

Grating step, stair tread, expanded metal step | Dimensions: 1200 x 240 mm, 30/30 mm | S235JR (St37-2)

[ Technical details ] made from S235JR (St37-2), hot-dip galvanised
[ Specific details ] Length (main bar direction): 1200 mm; Width (cross bar direction): 240 mm; Mesh size: 30/30 mm; Main bar: 40/2 mm

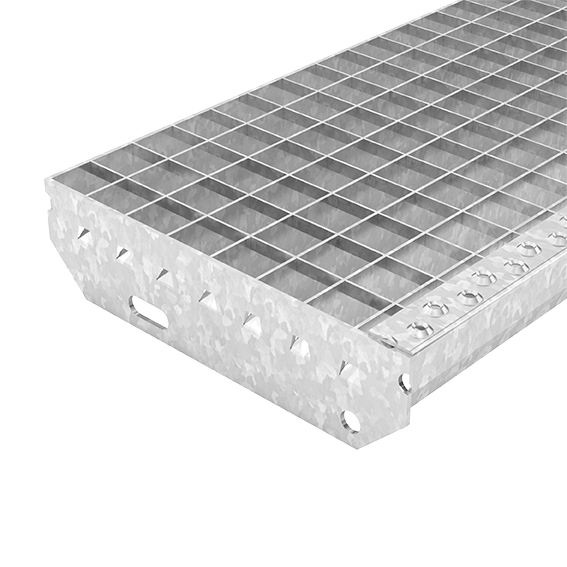

[ Further specific details ] With flanges and raised edge
[ Certificate ] Slip resistance class: R10; Drilling in accordance with DIN 24531; Permissible single force 1.5 kN on a 100 x 100 mm load cube with a maximum deflection of 1/300 mm or 6 mm in accordance with DIN EN ISO 14122-3. [ Manufacturer ] MEA Group GmbH, Product MEASTEP Standard Step

Eigenschaften
Maschenweite | Steps | Drahtgewebe: 30/30mm
Rutschhemmung | Steps: R10
Stufenbreite | Steps | Stufenlänge: 1200mm
Stufentiefe | Steps | Auftritt : 240mm
