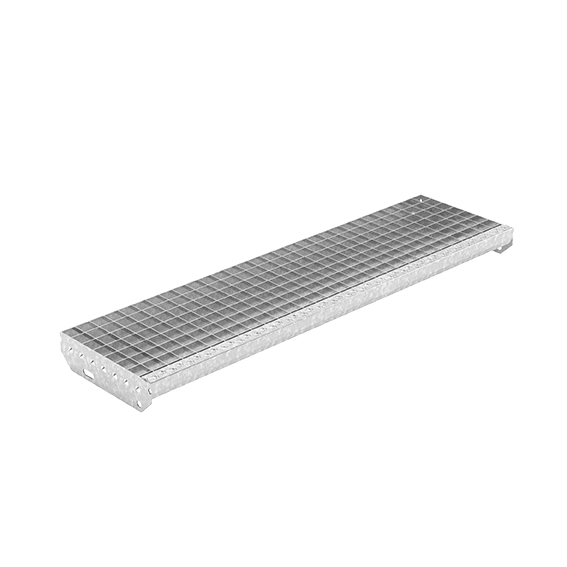

Grating step 1200 x 270 mm, mesh size 30/30, thickness 40/2 mm, slip resistance class R10
FeNau Ltd
$84.16*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
101
Product number:
24.1202730402.7
EAN:
4067727001914
Gewicht:
9.47 kg
Description
Product information "Grating step 1200 x 270 mm, mesh size 30/30, thickness 40/2 mm, slip resistance class R10"
Grating step, stair tread, expanded metal step | Dimensions: 1200x270 mm, 30/30 mm | S235JR (St37-2)
[ Technical details ] made from S235JR (St37-2), hot-dip galvanised
[ Specific details ] Length (longitudinal bar direction): 1200 mm; Width (transverse bar direction): 270 mm; Mesh size: 30/30 mm; Main bar: 40/2 mm

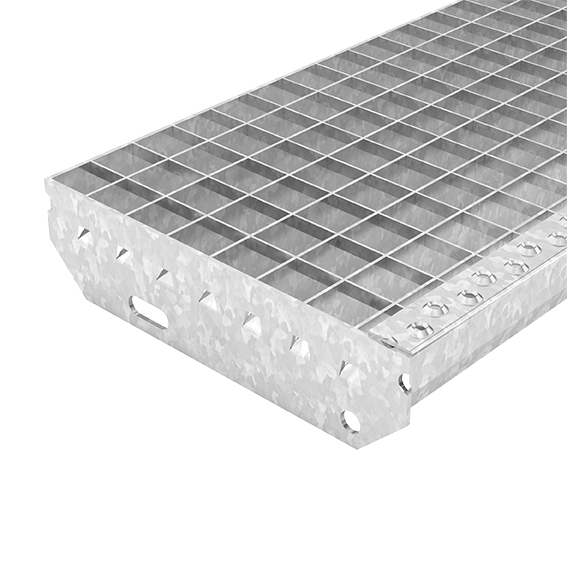

[ Further specific details ] With flanges and raised edge
[ Certificate ] Slip resistance class: R10; Drilling in accordance with DIN 24531; Permissible single load 1.5 kN on a 100 x 100 mm load cube with a maximum deflection of 1/300 mm or 6 mm in accordance with DIN EN ISO 14122-3.
[ Manufacturer ] MEA Group GmbH, Product MEASTEP Standard Step
Eigenschaften
| Maschenweite | Steps | Drahtgewebe: | 30/30mm |
|---|---|
| Rutschhemmung | Steps: | R10 |
| Stufenbreite | Steps | Stufenlänge: | 1200mm |
| Stufentiefe | Steps | Auftritt : | 270mm |
