Grating step 600 x 240 mm, mesh size 30/30, thickness 30 mm, slip resistance R10

Skip the photo gallery
Gitterroststufe 600 x 240 MW 30-30 TS 30-1-5 Rutschhemmung R10-24-6024303015.7
Gitterroststufe 600 x 240 MW 30-30 TS 30-1-5 Rutschhemmung R10-24-6024303015.7
Gitterroststufe 600 x 240 MW 30-30 TS 30-1-5 Rutschhemmung R10-24-6024303015.7
Gitterroststufe 600 x 240 MW 30-30 TS 30-1-5 Rutschhemmung R10-24-6024303015.7
Gitterroststufe 600 x 240 MW 30-30 TS 30-1-5 Rutschhemmung R10-24-6024303015.7
Gitterroststufe 600 x 240 MW 30-30 TS 30-1-5 Rutschhemmung R10-24-6024303015.7
Gitterroststufe 600 x 240 MW 30-30 TS 30-1-5 Rutschhemmung R10-24-6024303015.7
Gitterroststufe 600 x 240 MW 30-30 TS 30-1-5 Rutschhemmung R10-24-6024303015.7
Gitterroststufe 600 x 240 MW 30-30 TS 30-1-5 Rutschhemmung R10-24-6024303015.7
Gitterroststufe 600 x 240 MW 30-30 TS 30-1-5 Rutschhemmung R10-24-6024303015.7
Gitterroststufe 600 x 240 MW 30-30 TS 30-1-5 Rutschhemmung R10-24-6024303015.7
Gitterroststufe 600 x 240 MW 30-30 TS 30-1-5 Rutschhemmung R10-24-6024303015.7
Gitterroststufe 600 x 240 MW 30-30 TS 30-1-5 Rutschhemmung R10-24-6024303015.7
Gitterroststufe 600 x 240 MW 30-30 TS 30-1-5 Rutschhemmung R10-24-6024303015.7
Gitterroststufe 600 x 240 MW 30-30 TS 30-1-5 Rutschhemmung R10-24-6024303015.7
Gitterroststufe 600 x 240 MW 30-30 TS 30-1-5 Rutschhemmung R10-24-6024303015.7

$38.66*

Prices include VAT, plus delivery charges

Available now, delivery time: Lieferzeit 1-2 Werktage

Stk
Lagerbestand: 116
Product number: 24.6024303015.7
EAN: 4001990114179
Gewicht: 3.69 kg
20,000 items in stock
CAD data available after login
Over 200,000 satisfied customers
Worldwide delivery
Description

Product information "Grating step 600 x 240 mm, mesh size 30/30, thickness 30 mm, slip resistance R10"

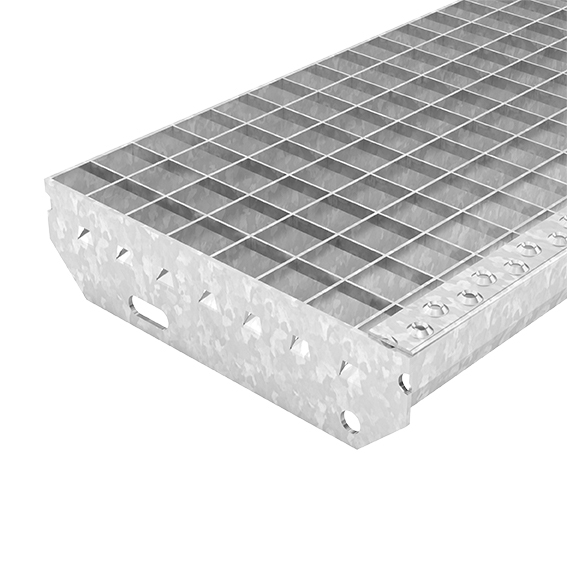

Stair tread, grating step, dimensions: 600x240 mm, mesh size 30x30 mm, S235JR, hot-dip galvanised

[ Technical details ] Made from S235JR (St37-2), hot-dip galvanised
[Manufacturer [ Specific details ] Length (support bar direction): 600 mm; Width (filler bar direction): 240 mm; Mesh size: 30/30 mm; Support bar: 30/1.5 mm
[ Further specific details ] With flanges and nosing
[ Certificate ] Slip resistance class: R10; Drilling in accordance with DIN 24531; Permissible single load 1.5 kN on a 100 x 100 mm load cube with a maximum deflection of 1/300 mm or 6 mm in accordance with DIN EN ISO 14122-3. [ Manufacturer ] MEA Group GmbH, Product MEASTEP Standard Step

Eigenschaften
Maschenweite | Steps | Drahtgewebe: 30/30mm
Rutschhemmung | Steps: R10
Stufenbreite | Steps | Stufenlänge: 600mm
Stufentiefe | Steps | Auftritt : 240mm
