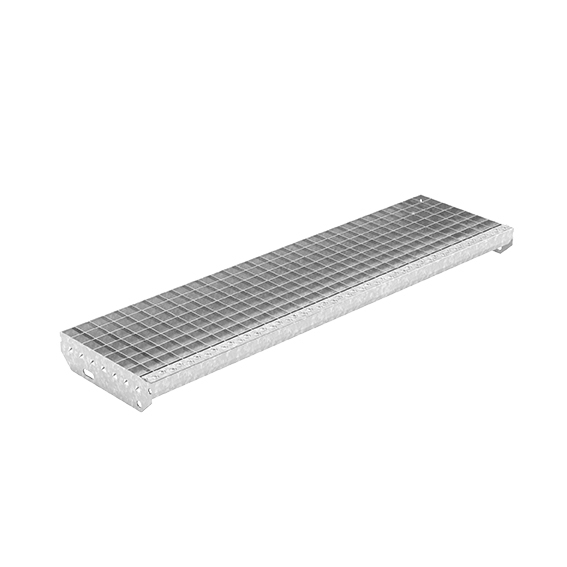

Grating step 600 x 305 MW 30/30 TS 30/1.5 Slip resistance R10
$39.84*
Available now, delivery time: Lieferzeit 1-2 Werktage
Product information "Grating step 600 x 305 MW 30/30 TS 30/1.5 Slip resistance R10"
[ Technical details ] made from S235JR (St37-2), hot-dip galvanised
[ Specific details ] Length (support bar direction): 600 mm; Width (filler bar direction): 305 mm; Mesh size: 30/30 mm; Main bar: 30/1.5 mm
[ Further specific details ] With flanges and nosing
[ Certificate ] Slip resistance class: R10; Drilling in accordance with DIN 24531; Permissible single force 1.5 kN on a 100 x 100 mm load cube with a maximum deflection of 1/300 mm or 6 mm in accordance with DIN EN ISO 14122-3.
[ Manufacturer ] MEA Group GmbH, Product MEASTEP Standard Step
| Maschenweite | Steps | Drahtgewebe: | 30/30mm |
|---|---|
| Rutschhemmung | Steps: | R10 |
| Stufenbreite | Steps | Stufenlänge: | 600mm |
| Stufentiefe | Steps | Auftritt : | 300mm |
Product safety (GPSR)
Manufacturer / responsible person in the EU: FeNau GmbH, Veit-Stoß-Str. 20, 90579 Langenzenn, Germany · info@fenau.eu · +49 911 97917230
Safety information: metal products may have sharp edges – wear protective gloves. Observe permissible loads and installation instructions; secure components properly before use.
