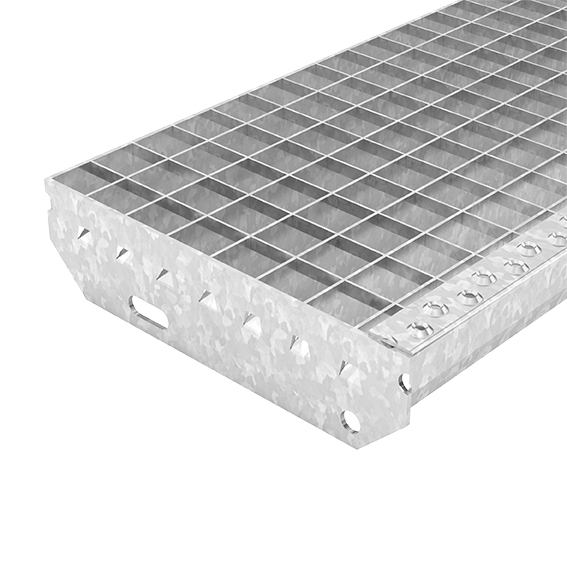

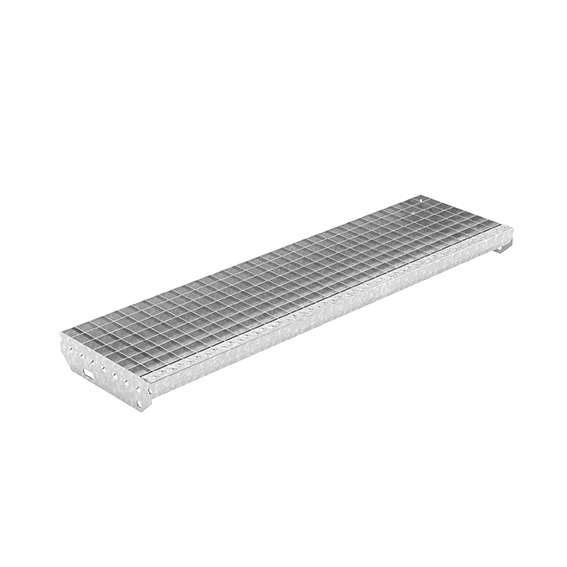

Grating step 800 x 270 mm, mesh size 30/30, thickness 30/2 mm, slip resistance class R10
$49.00*
Available now, delivery time: Lieferzeit 1-2 Werktage
Product information "Grating step 800 x 270 mm, mesh size 30/30, thickness 30/2 mm, slip resistance class R10"
[ Technical details ] Made from S235JR (St37-2), hot-dip galvanised
[ Specific details ] Length (support bar direction): 800 mm; Width (filler bar direction): 270 mm; Mesh size: 30/30 mm; Support bar: 30/2 mm
[ Certificate ] Slip resistance class: R10; with flanges and toe-in edge; hole pattern in accordance with DIN 24531; permissible single force 1.5 kN on a 100 x 100 mm load cube with a maximum deflection of 1/300 mm or 6 mm in accordance with DIN EN ISO 14122-3.
[ Application note ] Due to the hot-dip galvanising process, galvanising residues may remain in the mesh!
[ Manufacturer ] MEA Group GmbH, product MEASTEP standard step
| Maschenweite | Steps | Drahtgewebe: | 30/30mm |
|---|---|
| Rutschhemmung | Steps: | R10 |
| Stufenbreite | Steps | Stufenlänge: | 800mm |
| Stufentiefe | Steps | Auftritt : | 270mm |
