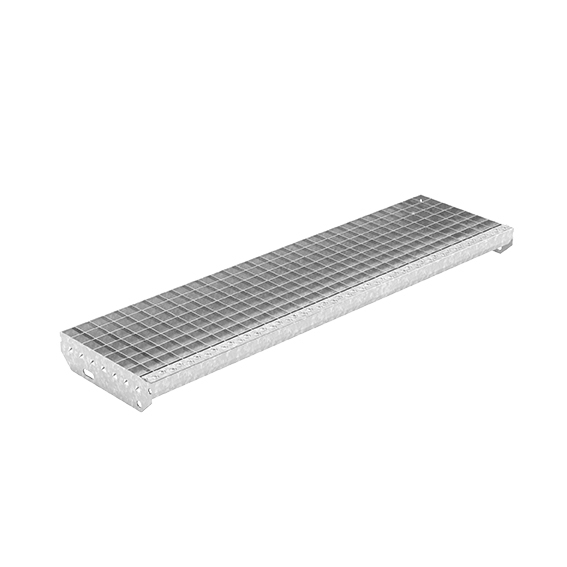

Grating step 800 x 305 mm, mesh size 30/30, thickness 30 mm, slip resistance class R10
$53.42*
Available now, delivery time: Lieferzeit 1-2 Werktage
Product information "Grating step 800 x 305 mm, mesh size 30/30, thickness 30 mm, slip resistance class R10"
[ Technical details ] Made from S235JR (St37-2), hot-dip galvanised
[ Specific details ] Length (main bar direction): 800 mm; Width (cross bar direction): 305 mm; Mesh size: 30/30 mm; Main bar: 30/2 mm

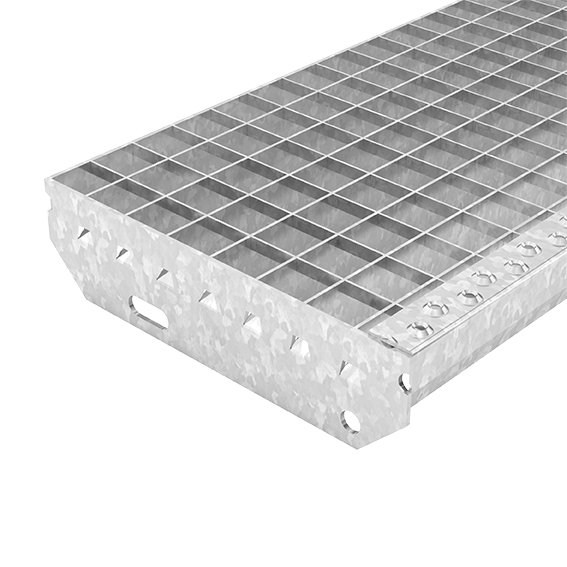

[ Certificate ] Slip resistance class: R10; with flanges and toe-up edge; hole pattern in accordance with DIN 24531; permissible single force 1.5 kN on a 100 x 100 mm load cube with a maximum deflection of 1/300 mm or 6 mm in accordance with DIN EN ISO 14122-3.
[ Application note ] Due to the hot-dip galvanising process, galvanising residues may remain in the mesh!
[ Manufacturer ] MEA Group GmbH, product MEASTEP standard step
| Maschenweite | Steps | Drahtgewebe: | 30/30mm |
|---|---|
| Rutschhemmung | Steps: | R10 |
| Stufenbreite | Steps | Stufenlänge: | 800mm |
| Stufentiefe | Steps | Auftritt : | 300mm |
Product safety (GPSR)
Manufacturer / responsible person in the EU: FeNau GmbH, Veit-Stoß-Str. 20, 90579 Langenzenn, Germany · info@fenau.eu · +49 911 97917230
Safety information: metal products may have sharp edges – wear protective gloves. Observe permissible loads and installation instructions; secure components properly before use.
