Industrial grating | Dimensions: 1000x700x30 mm; mesh size 30/30 mm; 30/2 mm | S235JR (St37-2), hot-dip galvanised
$99.72*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
22
Product number:
21.1007030302.7
EAN:
4251412942617
Gewicht:
12.72 kg
Description
Product information "Industrial grating | Dimensions: 1000x700x30 mm; mesh size 30/30 mm; 30/2 mm | S235JR (St37-2), hot-dip galvanised"

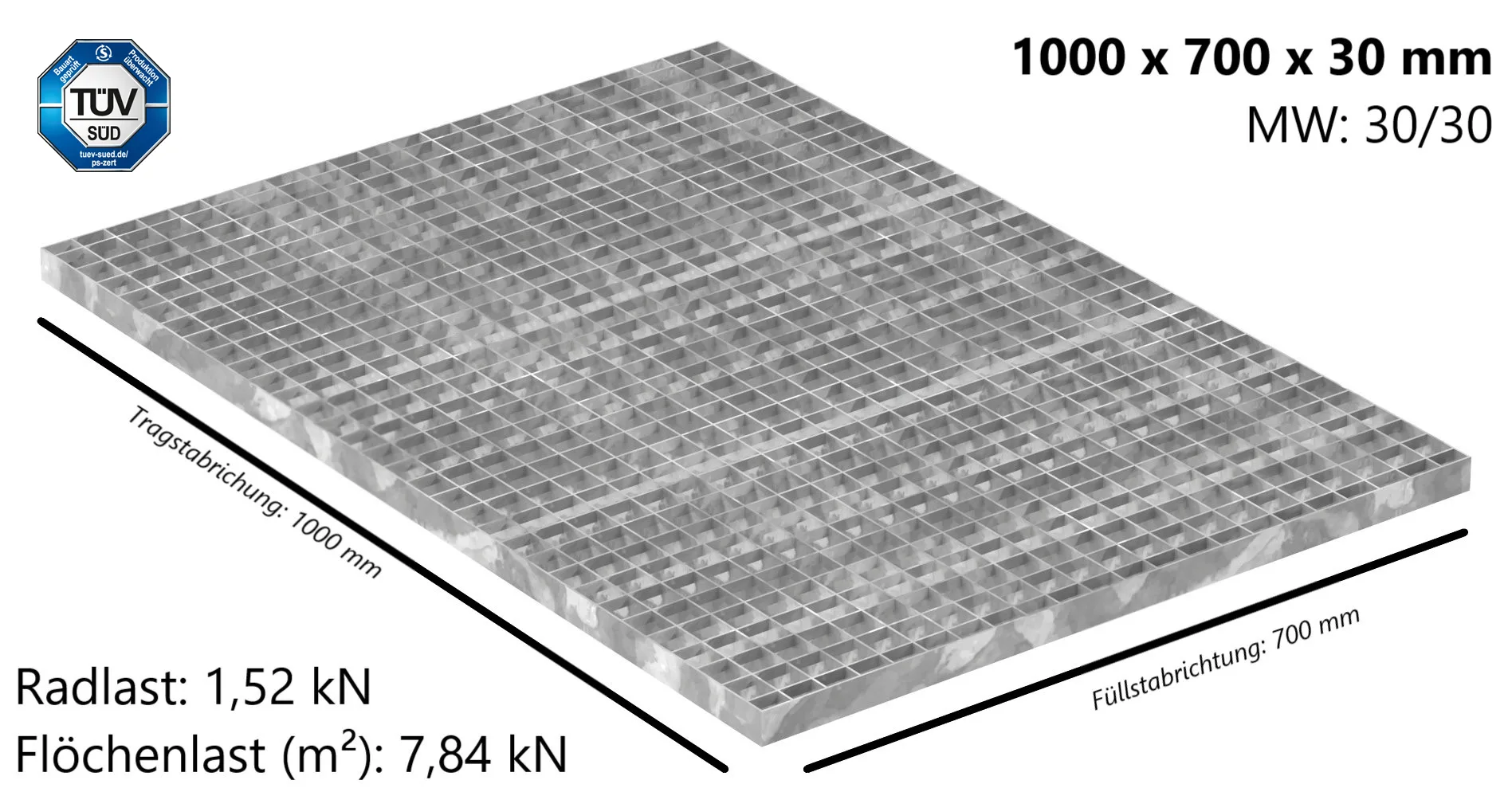

Industrial grating | Dimensions: 1000x700x30 mm; mesh size 30/30 mm; 30/2 mm | S235JR (St37-2), hot-dip galvanised
[ Technical details ] made from S235JR (St37-2), hot-dip galvanised
[ Material ] Pressed grating with bar-in-bar pressing

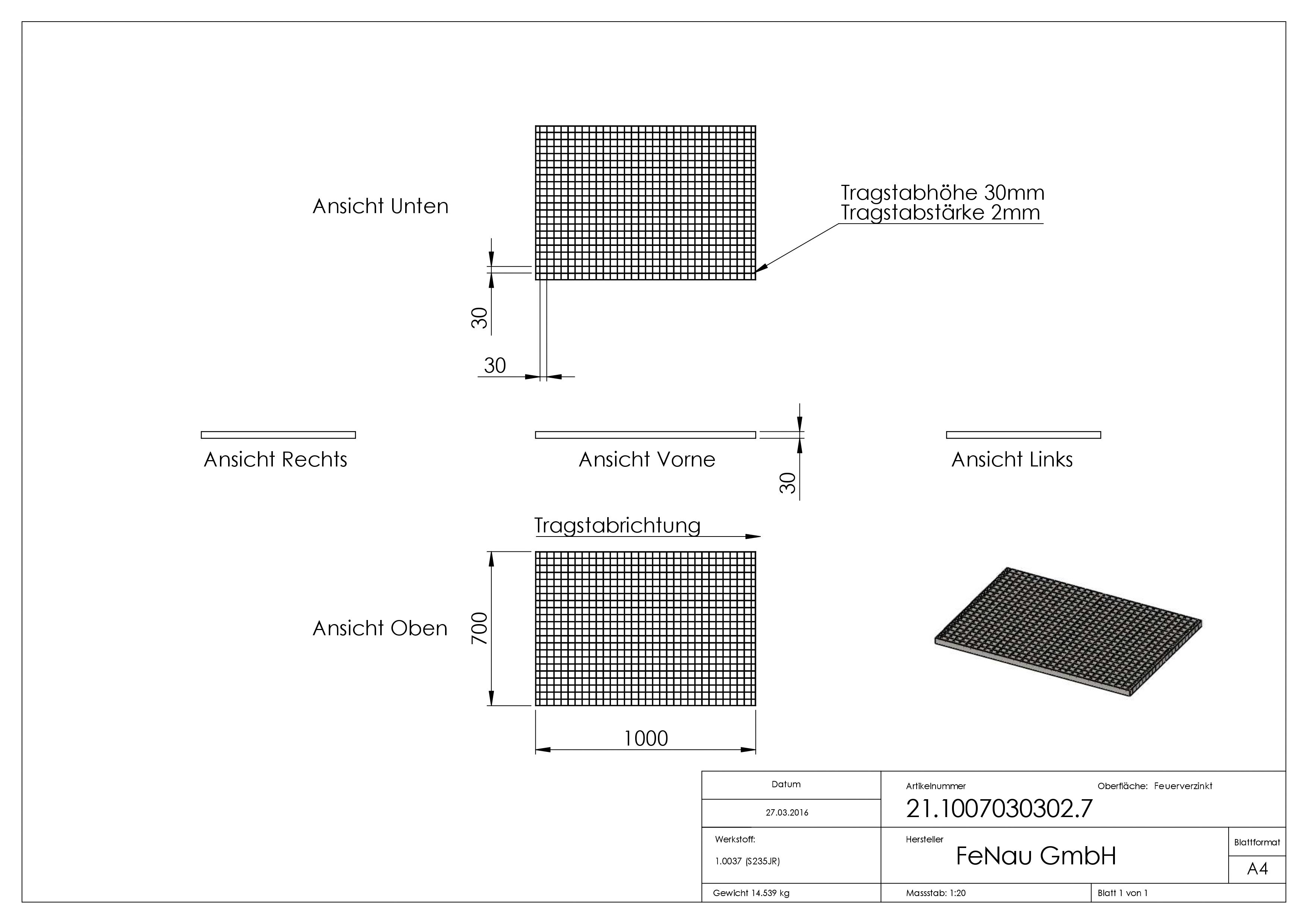

[ Specific details ] Length (support bar direction): 1000 mm; Width (filler bar direction): 700 mm; Grating height: 30 mm; Main bar (height/material thickness): 30/2 mm; Mesh spacing: 30/30 mm
[ Further specific details ] With flat bar edging
[ Application note ] Permissible surface load per m²: 7.84 kN; Permissible wheel load: 1.52 kN
Eigenschaften
| Breite: | 700 mm |
|---|---|
| Länge: | 1000 mm |
| Maschenweite | Steps | Drahtgewebe: | 30/30mm |
| Tragstab: | 30/2 |
