Industrial grating | Dimensions: 500x1000x30 mm; mesh size 30/30 mm; 30/3 mm | S235JR (St37-2), hot-dip galvanised
$106.60*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
6
Product number:
21.5010030303.7
EAN:
4251412942716
Gewicht:
14.49 kg
Description
Product information "Industrial grating | Dimensions: 500x1000x30 mm; mesh size 30/30 mm; 30/3 mm | S235JR (St37-2), hot-dip galvanised"

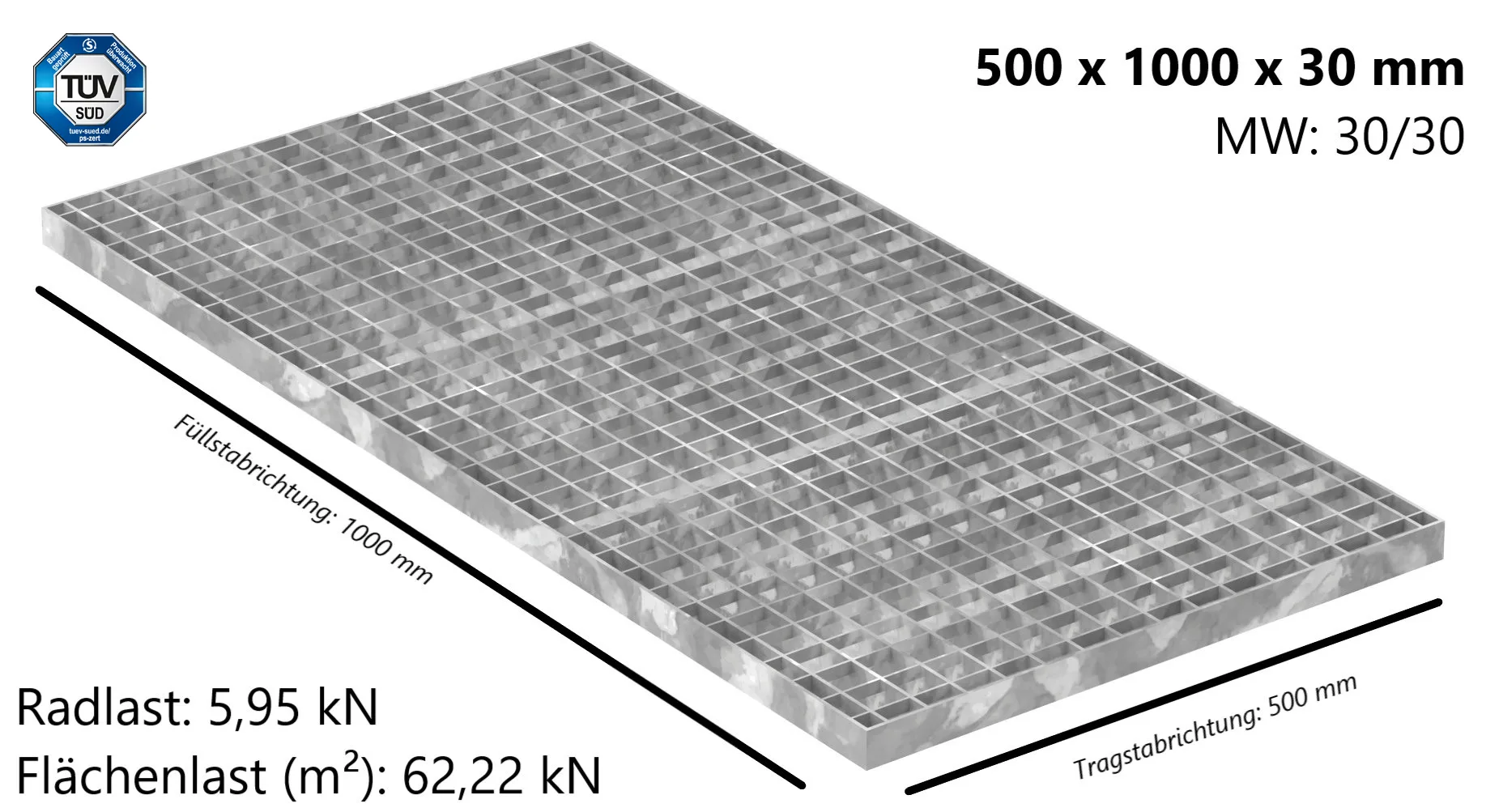

Industrial grating | Dimensions: 500x1000x30 mm; mesh size 30/30 mm; 30/3 mm | S235JR (St37-2), hot-dip galvanised
[ Technical details ] made from S235JR (St37-2), hot-dip galvanised
[ Material ] Pressed grating with bar-in-bar pressing

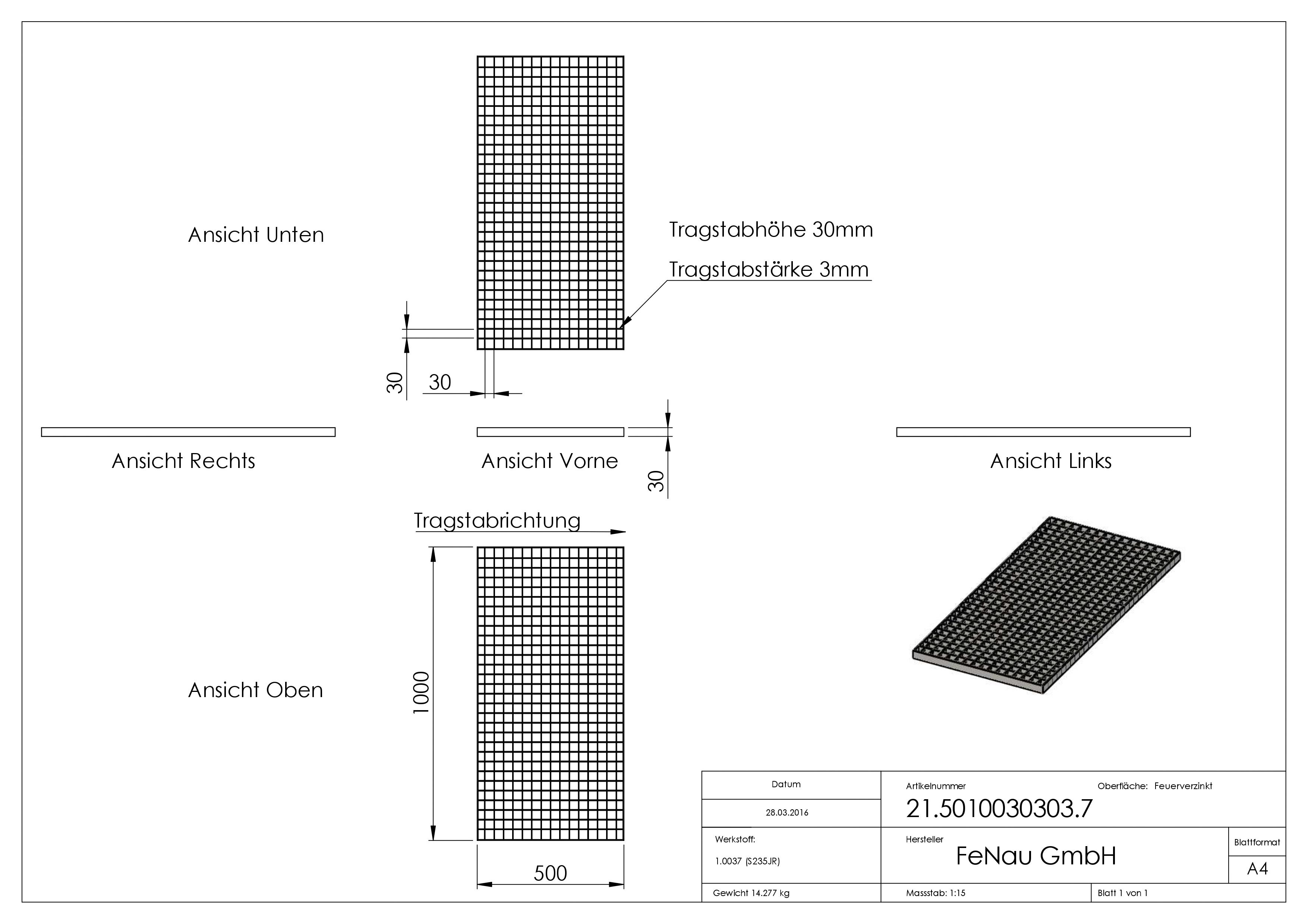

[ Specific details ] Length (support bar direction): 500 mm; Width (filler bar direction): 1000 mm; Grating height: 30 mm; Support bar (height/material thickness): 30/3 mm; Mesh size: 30/30 mm
[ Further specific details ] With flat bar edging
[ Application note ] Permissible surface load per m²: 62.22 kN; Permissible wheel load: 5.95 kN
Eigenschaften
| Breite: | 500 mm |
|---|---|
| Länge: | 1000 mm |
| Maschenweite | Steps | Drahtgewebe: | 30/30mm |
| Tragstab: | 30/3 |
