Industrial grating | Dimensions: 600x1000x30 mm; mesh size 30/30 mm; 30/3 mm | S235JR (St37-2), hot-dip galvanised
$119.64*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
62
Product number:
21.6010030303.7
EAN:
4251412942730
Gewicht:
16.88 kg
Description
Product information "Industrial grating | Dimensions: 600x1000x30 mm; mesh size 30/30 mm; 30/3 mm | S235JR (St37-2), hot-dip galvanised"
Industrial grating | Dimensions: 600x1000x30 mm; mesh size 30/30 mm; 30/3 mm | S235JR (St37-2), hot-dip galvanised
[ Technical details ] Made from S235JR (St37-2), hot-dip galvanised
[ Material ] Pressed grating with bar-in-bar pressing

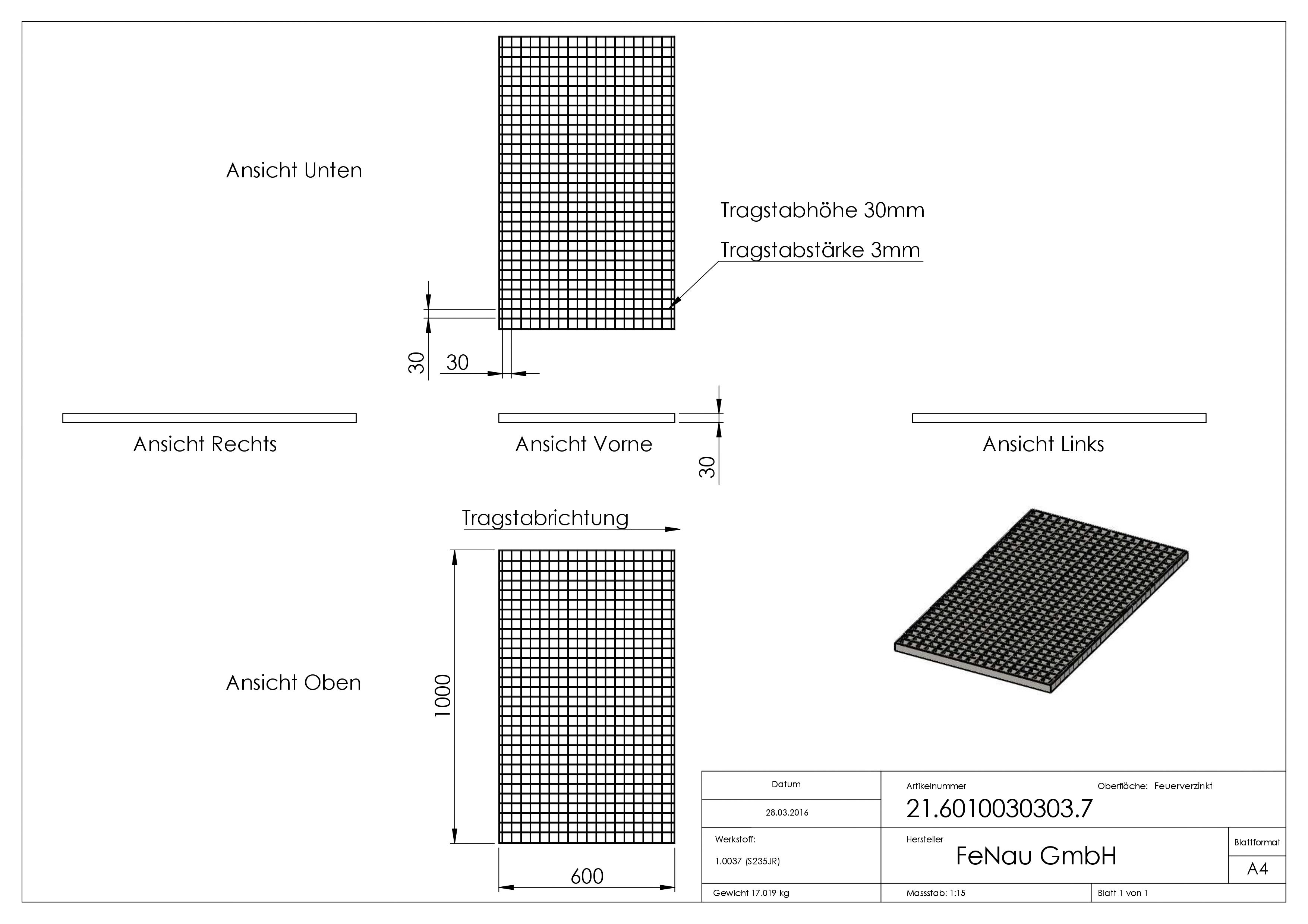

[ Specific details ] Length (support bar direction): 600 mm; Width (filler bar direction): 1000 mm; Grating height: 30 mm; Main bar (height/material thickness): 30/3 mm; Mesh size: 30/30 mm
[ Further specific details ] With flat bar edging
[ Application note ] Permissible surface load per m²: 43.21 kN; Permissible wheel load: 4.76 kN
Eigenschaften
| Breite: | 600 mm |
|---|---|
| Länge: | 1000 mm |
| Maschenweite | Steps | Drahtgewebe: | 30/30mm |
| Tragstab: | 30/3 |
