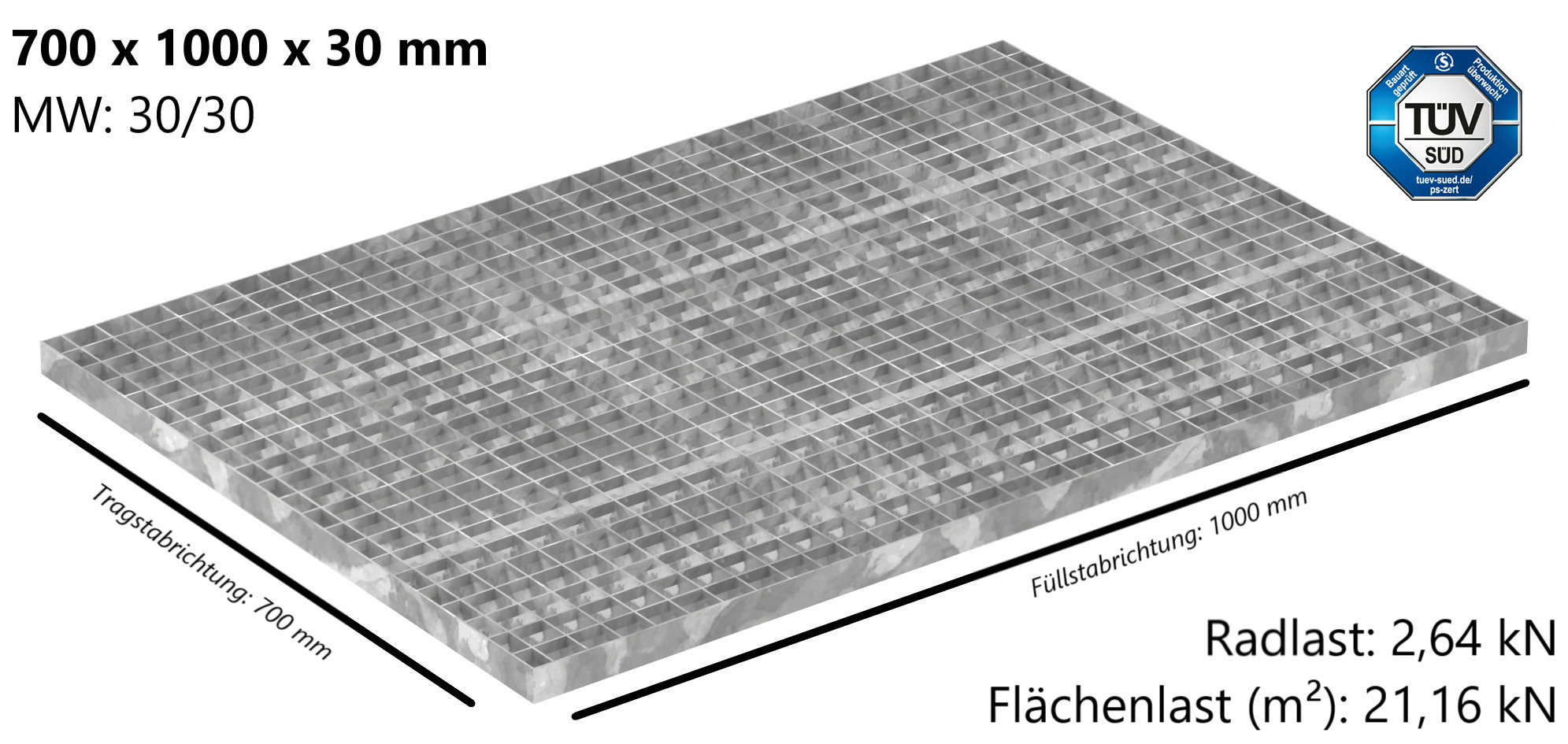

Industrial grating | Dimensions: 700x1000x30 mm; mesh size 30/30 mm; 30/2 mm | S235JR (St37-2), hot-dip galvanised

FeNau Ltd

Industrie-Gitterrost - Masse- 700x1000x30 mm; MW 30-30 mm; 30-2 mm - S235JR -St37-2- im Vollbad feuerverzinkt-21-7010030302.7

$113.12*

Prices exclude VAT and are subject to delivery charges

Available now, delivery time: Lieferzeit 1-2 Werktage

Stk

Stock: 26

Product number: 21.7010030302.7

EAN: 4251412942747

Weight: 12.86 kg

20,000 items in stock

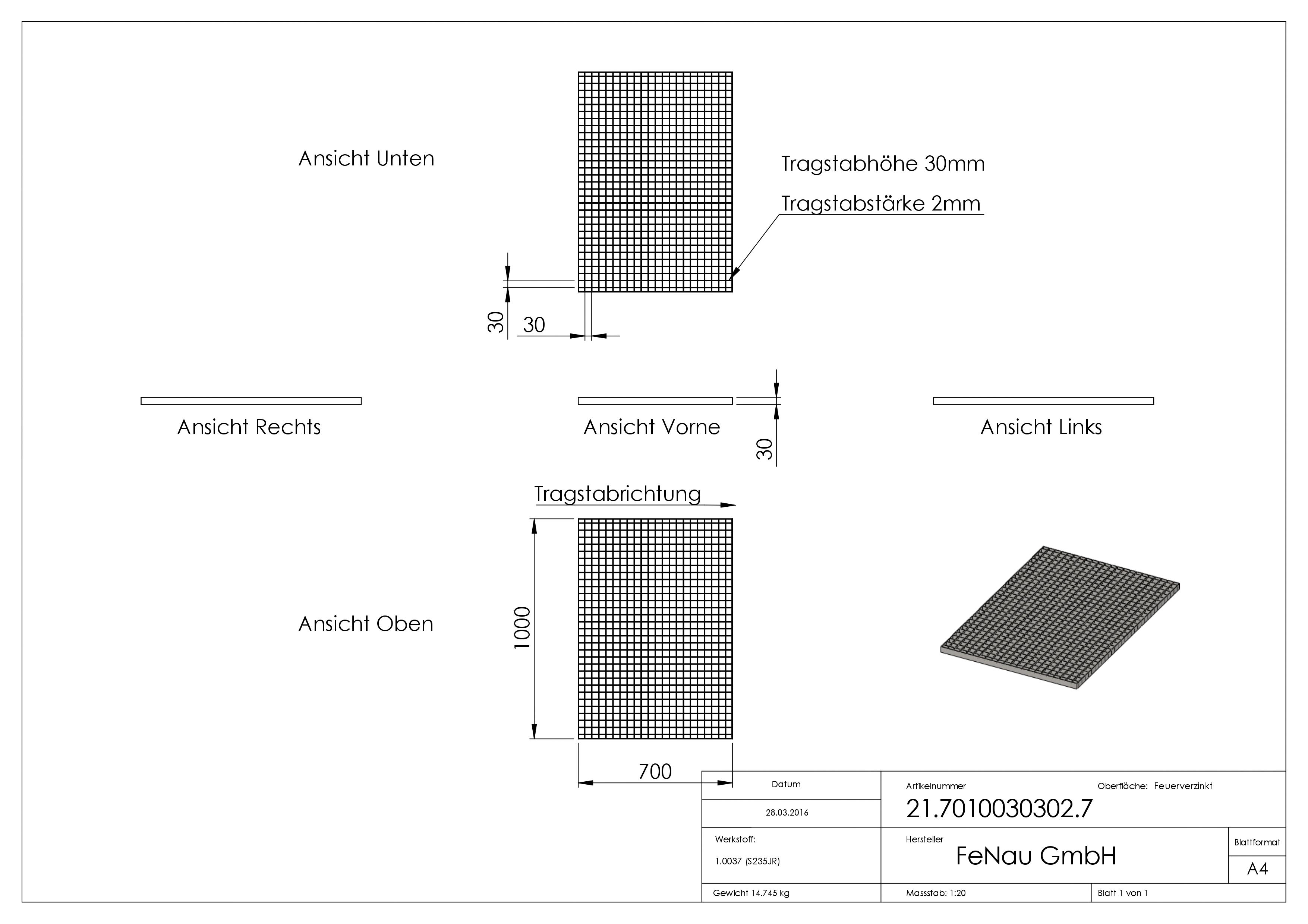

CAD data available after login

Over 200,000 satisfied customers

Worldwide delivery

Product information "Industrial grating | Dimensions: 700x1000x30 mm; mesh size 30/30 mm; 30/2 mm | S235JR (St37-2), hot-dip galvanised"

Industrial grating | Dimensions: 700x1000x30 mm; mesh size 30/30 mm; 30/2 mm | S235JR (St37-2), hot-dip galvanised

[ Technical details ] made from S235JR (St37-2), hot-dip galvanised
[ Material ] Pressed grating with bar-in-bar pressing
[ Specific details ] Length (support bar direction): 700 mm; Width (filler bar direction): 1000 mm; Grating height: 30 mm; Support bar (height/material thickness): 30/2 mm; Mesh spacing: 30/30 mm
[ Further specific details ] With flat bar edging
[ Application note ] Permissible surface load per m²: 21.16 kN; Permissible wheel load: 2.64 kN

Länge:	1000 mm
Maschenweite \| Steps \| Drahtgewebe:	30/30mm
Tragstab:	30/2
Breite:	700 mm

Product safety (GPSR)

Manufacturer / responsible person in the EU: FeNau GmbH, Veit-Stoß-Str. 20, 90579 Langenzenn, Germany · info@fenau.eu · +49 911 97917230

Safety information: metal products may have sharp edges – wear protective gloves. Observe permissible loads and installation instructions; secure components properly before use.

All product safety information → · Your legal guarantee rights →

Zubehör

Paar

26.S-KETTE.7

1 pair of safety chains for MW 30/30 mm grating made from St37 hot-dip galvanised steel

Safety chains | 1 pair | for grating with 30/30 mm mesh, and more | made from St37, hot-dip galvanised [ Technical details ] made from St37, hot-dip galvanised [ Specific details ] consisting of two chains, each 700 mm long, with mounting brackets, mounting brackets, split pins, screws and dowels [ Further specific details ] for mesh sizes: 20/20 – 20/50 mm | 30/20 – 30/60 mm | 40/30 – 40/60 mm

Available, : Lieferzeit 1-2 Werktage

$25.14*

Gitterrost-Klemme Rosthoehe 30mm MW- -30 mm - 30 mm- S235JR - ST37 – feuerverzinkt-26-KLEMME01.7

Stk

26.KLEMME01.7

Grating clamp, grating height 30 mm, MW: (30 mm / 30 mm) S235JR / ST37 – hot-dip galvanised

Complete Grating Clamp Set – Maximum Safety and Stability for Construction Projects Ensure the highest quality and reliability with our complete grating clamp set, ideal for a grating height of 30 mm. This set guarantees a durable and stable fastening for all types of gratings and is the perfect choice for professional construction projects. Technical Details Manufactured from high-quality S235JR / ST37 steel and hot-dip galvanised to offer maximum corrosion resistance and durability. This set is designed for a grating height of 30 mm and a mesh size of 30/30 mm, ensuring reliable installation. Complete set – everything you need for installation The complete grating clamp set includes: Upper bracket (swallowtail bracket) Clamp lower section Hexagon bolt M8 x 60 mm M8 square nut Applications and benefits This grating clamp is ideal for a wide range of applications in the construction industry and ensures a secure and firm connection between the grating and the substrate. In addition to high stability, it offers an aesthetically pleasing design and simple, quick installation. Order now and equip your construction projects with the highest quality and stability!

Available, : Lieferzeit 1-2 Werktage

$2.42*

Doppelklemme fuer Rosthoehe 30 mm MW 30-30 mm aus St37- feuerverzinkt-26-DKLEMME01.7

Stk

26.DKLEMME01.7

Double clamp for grating height 30 mm, MW 30/30 mm, made of St37 steel, hot-dip galvanised

Double grating clamp (complete set) | for grating height: 30 mm | MW 30/30 mm | made from S235JR / ST37 – hot-dip galvanised [ Technical details ] made from S235JR / ST37 - hot-dip galvanised; for grating height: 30 mm; for mesh size: 30/30 mm [ Specific details ] comprising: 2 upper brackets (swallow-tail brackets), lower clamp section (160/140 mm) with 2 slotted holes (45 mm), 2 M8 x 60 mm hexagon head bolts and 2 M8 square nuts

Available, : Lieferzeit 1-2 Werktage

$4.30*

Schwalbenlasche MW 30-30 mm Stahl- feuerverzinkt-26-SCHWALBEN.7

Stk

26.SCHWALBEN.7

Swallow-tail bracket, 30/30 mm, steel, hot-dip galvanised

Swallow-tail bracket | loose | for MW 30/30 mm | made from S235JR / ST37 – hot-dip galvanised [ Technical details ] made from S235JR / ST37 - hot-dip galvanised [ Specific details ] Standard top section for 33/34 mm spacing; minimum crossbar spacing 27 mm; use of M8 hexagon head bolts – DIN 933 for assembly [ further specific details ] crossbar thickness for 33.33 mm crossbar spacing: 2 to 4 mm; crossbar thickness for 34.33 mm crossbar spacing: 2 to 5 mm

Available, : Lieferzeit 1-2 Werktage

$0.72*
