Industrial grating | Dimensions: 800x1000x30 mm; mesh size 30/10 mm; 30/2 mm | S235JR (St37-2), hot-dip galvanised
$145.92*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
31
Product number:
21.8010031302.7
EAN:
4251412942792
Länge:
1000 mm
Gewicht:
18.63 kg
Description
Product information "Industrial grating | Dimensions: 800x1000x30 mm; mesh size 30/10 mm; 30/2 mm | S235JR (St37-2), hot-dip galvanised"

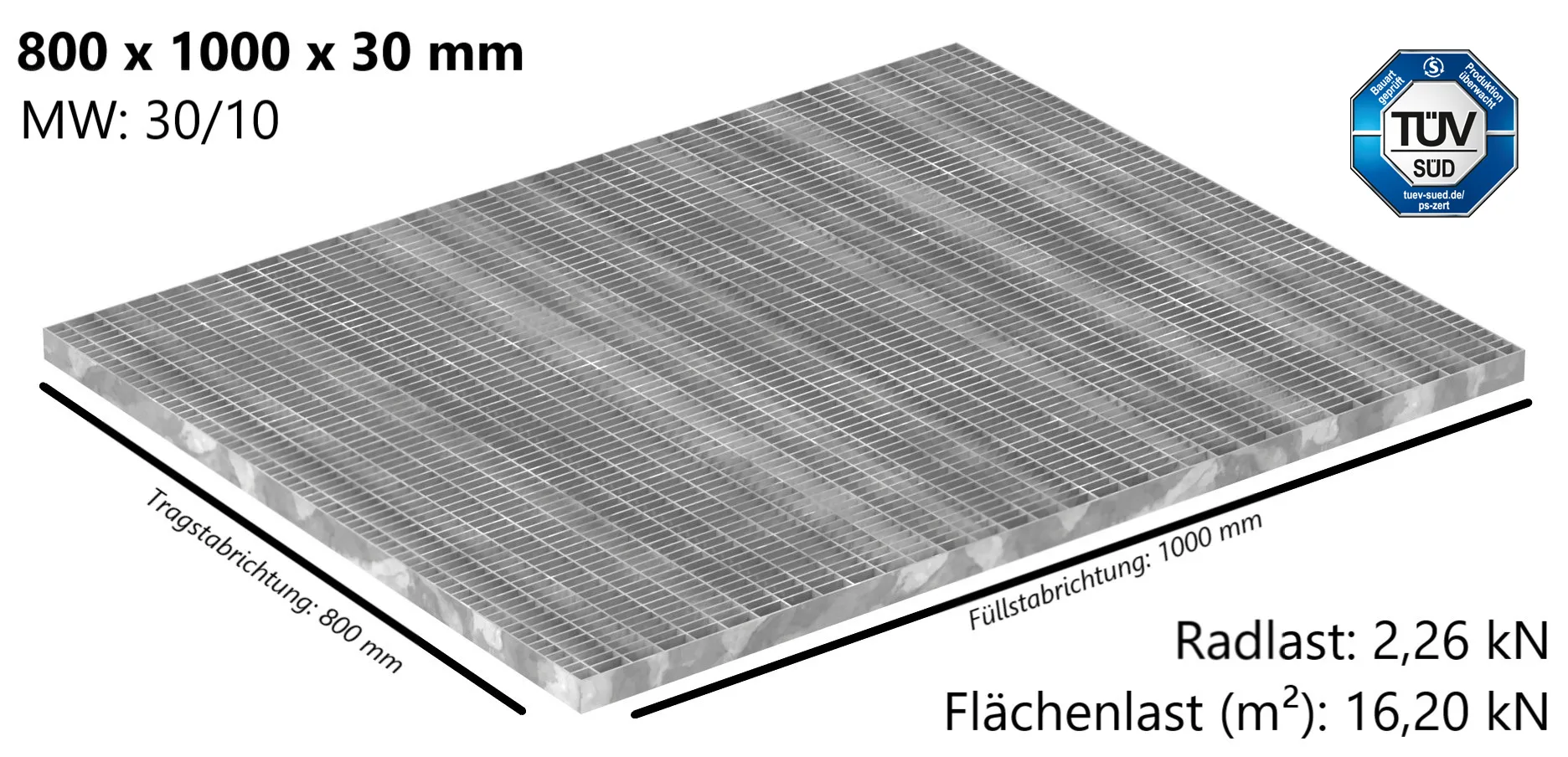

Industrial grating | Dimensions: 800x1000x30 mm; mesh size 30/10 mm; 30/2 mm | S235JR (St37-2), hot-dip galvanised
[ Technical details ] Made from S235JR (St37-2), hot-dip galvanised
[ Material ] Pressed grating with bar-in-bar pressing

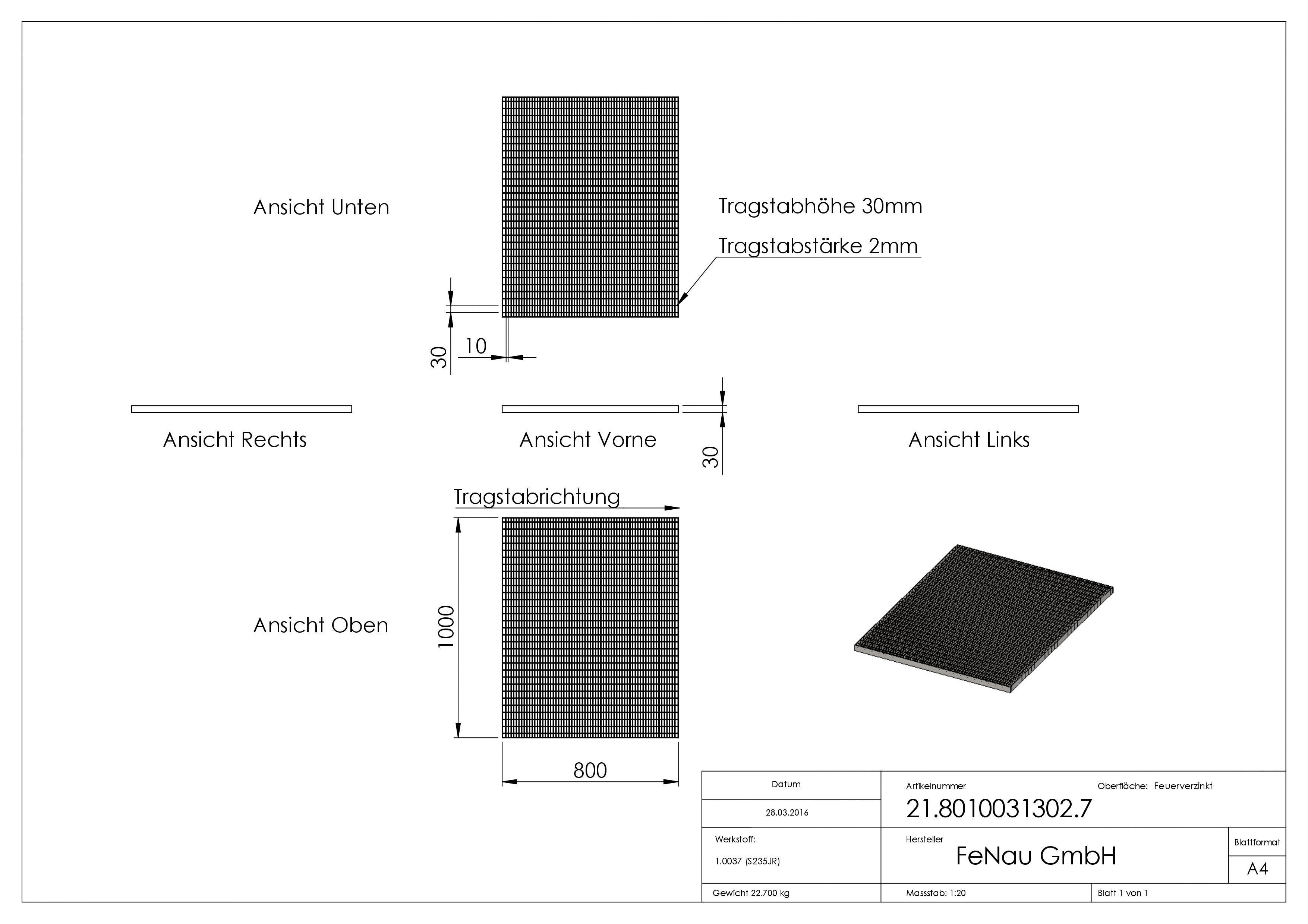

[ Specific details ] Length (support bar direction): 800 mm; Width (filler bar direction): 1000 mm; Grating height: 30 mm; Support bar (height/material thickness): 30/2 mm; Mesh size: 30/10 mm
[ Further specific details ] With flat bar edging
[ Application notes ] Permissible surface load per m²: 16.20 kN; Permissible wheel load: 2.26 kN; Note: Due to the hot-dip galvanising process, galvanising residues may remain in the mesh!
Eigenschaften
| Breite: | 800 mm |
|---|---|
| Länge: | 1000 mm |
| Maschenweite | Steps | Drahtgewebe: | 30/10mm |
| Tragstab: | 30/2 |
