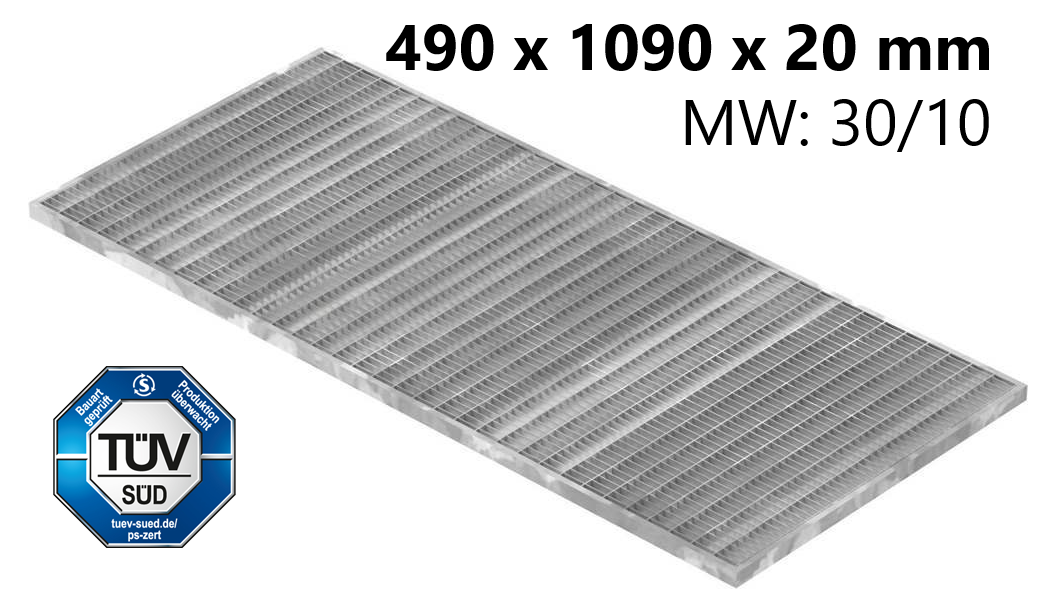

Light well grating, standard construction grade | Dimensions: 490 x 1090 x 20 mm, 30/10 mm | Made from S235JR (St37-2), hot-dip galvanised

Skip the photo gallery
Lichtschachtrost Baunormrost - Masse- 490x1090x20 mm 30-10 mm - aus S235JR -St37-2- im Vollbad feuerverzinkt-23-491093120.7
Lichtschachtrost Baunormrost - Masse- 490x1090x20 mm 30-10 mm - aus S235JR -St37-2- im Vollbad feuerverzinkt-23-491093120.7
Lichtschachtrost Baunormrost - Masse- 490x1090x20 mm 30-10 mm - aus S235JR -St37-2- im Vollbad feuerverzinkt-23-491093120.7
Lichtschachtrost Baunormrost - Masse- 490x1090x20 mm 30-10 mm - aus S235JR -St37-2- im Vollbad feuerverzinkt-23-491093120.7
Lichtschachtrost Baunormrost - Masse- 490x1090x20 mm 30-10 mm - aus S235JR -St37-2- im Vollbad feuerverzinkt-23-491093120.7
Lichtschachtrost Baunormrost - Masse- 490x1090x20 mm 30-10 mm - aus S235JR -St37-2- im Vollbad feuerverzinkt-23-491093120.7
Lichtschachtrost Baunormrost - Masse- 490x1090x20 mm 30-10 mm - aus S235JR -St37-2- im Vollbad feuerverzinkt-23-491093120.7
Lichtschachtrost Baunormrost - Masse- 490x1090x20 mm 30-10 mm - aus S235JR -St37-2- im Vollbad feuerverzinkt-23-491093120.7

$99.74*

Prices include VAT, plus delivery charges

Available now, delivery time: Lieferzeit 1-2 Werktage

Stk
Lagerbestand: 19
Product number: 23.491093120.7
EAN: 4251412900976
Gewicht: 9.7 kg
20,000 items in stock
CAD data available after login
Over 200,000 satisfied customers
Worldwide delivery
Description

Product information "Light well grating, standard construction grade | Dimensions: 490 x 1090 x 20 mm, 30/10 mm | Made from S235JR (St37-2), hot-dip galvanised"

Light well grating, standard construction grating | Dimensions: 490x1090x20 mm, 30/10 mm | Made from S235JR (St37-2), hot-dip galvanised

[ Technical details ] S235JR (St37-2), hot-dip galvanised
[ Specific details ] Length (support bar direction): 490 mm; Width (cross-bar direction): 1090 mm; Grating height: 20 mm; Cross-bar (height/gauge): 20/1.5 mm; Mesh size: 30/10 mm; Weight: 9.70 kg

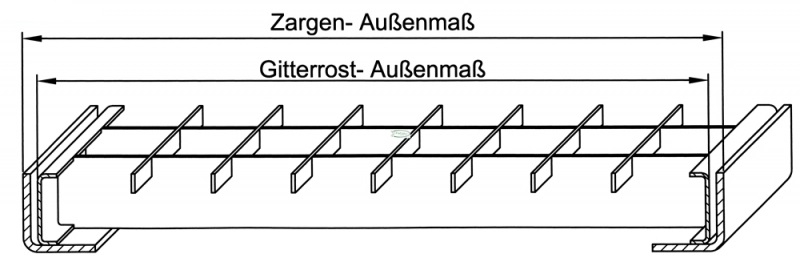

[ Further specific details ] With U-profile edging
[ Application note ] Caution: Cross-bar ends must be supported!

Eigenschaften
Breite: 490 mm
Höhe: 20 mm
Länge: 1090 mm
Maschenweite | Steps | Drahtgewebe: 30/10 mm
Oberfläche: Feuerverzinkt
Skip the product gallery

Accessories

Zarge - Masse- 500x1100x23 mm - fuer Rosthoehe 20 mm - aus S235JR -St37-2- bandverzinkt-23-5011020.7
Stk
23.5011020.7
Frame | Dimensions: 500x1100x23 mm | for grating height 20 mm | made from S235JR (St37-2), hot-dip galvanised
Frame | Dimensions: 500x1100x23 mm | for grating height 20 mm | made from S235JR (St37-2), hot-dip galvanised [ Technical details ] S235JR (St37-2), hot-dip galvanised [ Specific details ] Length: 500 mm; Width: 1100 mm; Height: 23 mm for grating height: 20 mm [ Further specific details ] Angle steel dimensions: 23/16/2 mm; with 2 small recesses (wall anchors) on each side

Available, : Lieferzeit 1-2 Werktage

$47.82*
1 Paar Sicherheitsketten fuer Gitterroste MW 30-10 mm aus St37- feuerverzinkt-26-S-KETTE3010.7 1 Paar Sicherheitsketten fuer Gitterroste MW 30-10 mm aus St37- feuerverzinkt-26-S-KETTE3010.7
Paar
26.S-KETTE3010.7
1 pair of safety chains for MW 30/10 mm grating made from St37 steel, hot-dip galvanised
Safety chains | 1 pair | for grating with mesh size 30/10 mm | made of St37, hot-dip galvanised [ Technical details ] made of St37, hot-dip galvanised [ Specific details ] consisting of two chains, each 700 mm long, with mounting brackets, fixing brackets, screws, dowels and split pins [ Further specific details ] for mesh size: 30/10 mm

Available, : Lieferzeit 1-2 Werktage

$31.40*
Sicherheitsketten fuer Gitterroste fuer MW 30-30 30-10 34-38 mm aus Stahl- feuerverzinkt- 1 Paar-26-S-KETTE-M.7 Sicherheitsketten fuer Gitterroste fuer MW 30-30 30-10 34-38 mm aus Stahl- feuerverzinkt- 1 Paar-26-S-KETTE-M.7
Stk
26.S-KETTE-M.7
Safety chains for grating, suitable for MW 30/30, 30/10 and 34/38 mm, made of steel, hot-dip galvanised, 1 pair
Safety chains | 1 pair | for grating with 30/30 mm mesh, and more | made from St37, hot-dip galvanised [ Technical details ] made from St37, hot-dip galvanised [ Specific details ] consisting of two chains, each 800 mm long, with mounting brackets, screws and wall plugs [ Further specific details ] for mesh sizes: 30/30 mm | 34/38 mm | 30/10 mm

Available, : Lieferzeit 1-2 Werktage

$17.96*
Oberteil fuer MW 30-10 mit Bohrung fuer M8 aus St37- feuerverzinkt-26-OBERTEIL3010.7
Stk
26.OBERTEIL3010.7
Top section for MW 30/10 with M8 hole, made from St37 steel, hot-dip galvanised
Top section / grating clamp | for MW 30/10 mm | made from S235JR / ST37 – hot-dip galvanised [ Technical details ] made from S235JR / ST37 - hot-dip galvanised [ Specific details ] is tensioned over 2 infill bars; max. infill bar spacing 12 mm; with hole for M8 screw

Available, : Lieferzeit 1-2 Werktage

$0.86*
Gitterrostklemme fuer Rosthoehe 30 mm MW 30-10 mm aus St37- feuerverzinkt-26-KLEMME02.7 Gitterrostklemme fuer Rosthoehe 30 mm MW 30-10 mm aus St37- feuerverzinkt-26-KLEMME02.7
Stk
26.KLEMME02.7
Grating clamp for grating height 30 mm, MW 30/10 mm, made of St37 steel, hot-dip galvanised
Grating clamp (complete set) | for grating height: 30 mm | mesh size 30/10 mm | made from S235JR / ST37 – hot-dip galvanised [ Technical details ] made from S235JR / ST37 - hot-dip galvanised; for grating height: 30 mm; for mesh size: 30/10 mm [ Specific details ] comprising: clamp base, cup head screw M8 x 60 mm (threaded to head) and square nut M8

Available, : Lieferzeit 1-2 Werktage

$3.04*
Doppelklemme fuer Rosthoehe 30 mm MW 30-10 mm aus St37- feuerverzinkt-26-DKLEMME02.7
Stk
26.DKLEMME02.7
Double clamp for grating height 30 mm, MW 30/10 mm, made of St37, hot-dip galvanised
Double grating clamp (complete set) | for grating height: 30 mm | mesh size 30/10 mm | made from S235JR / ST37 – hot-dip galvanised [ Technical details ] made from S235JR / ST37 - hot-dip galvanised; for grating height: 30 mm; for mesh size: 30/10 mm [ Specific details ] consisting of: Clamp base (160/140 mm) with 2 slotted holes (45 mm), 2 M8 x 60 mm flat-head screws (threaded to the head) and 2 M8 square nuts

Available, : Lieferzeit 1-2 Werktage

$5.34*
