M12 adjustable door hinge, slotted plate, steel (uncoated) S235JR
FeNau Ltd
$13.66*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
970
Product number:
30.3508.8
EAN:
4251412917301
Gewicht:
0.64 kg
Description
Product information "M12 adjustable door hinge, slotted plate, steel (uncoated) S235JR"

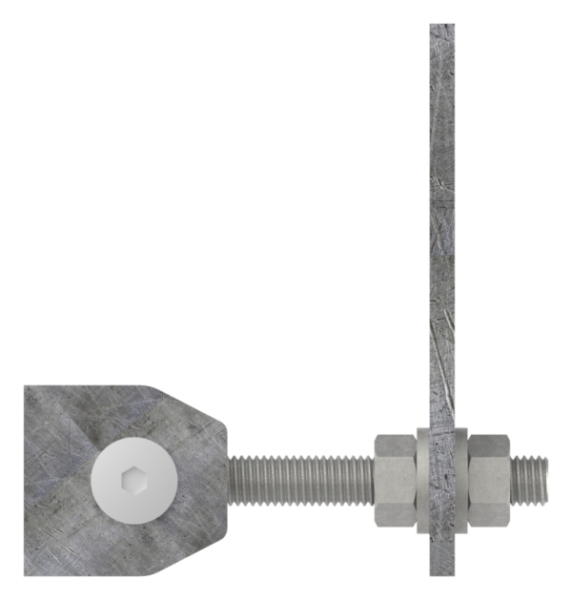

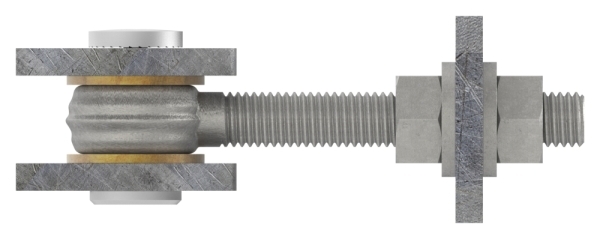

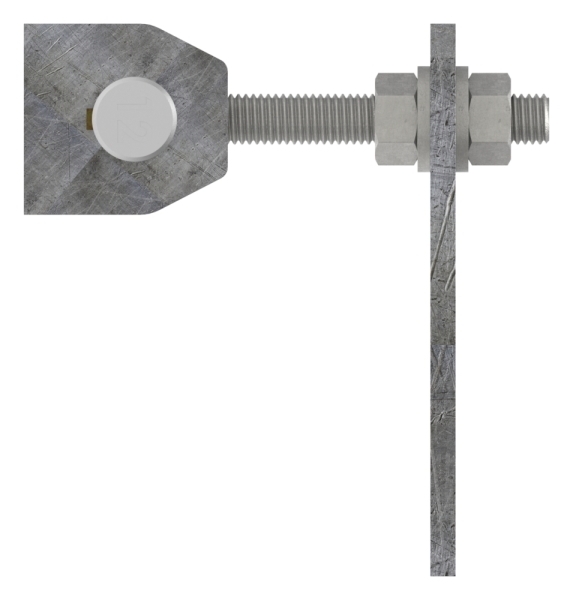

M12 door hinge | adjustable | slotted bracket | S235JR steel (unfinished)
[ Technical details ] Made from S235JR steel, raw
[ Specific details ] Dimension A: 45 mm; Dimension B: 48 mm; Dimension E: 45 mm; Dimension G: 28 mm; Dimension H: 44 mm; Dimension M: M12; Dimension R1: 43.87 mm; Dimension R2: 105 mm; Dimension S1: 6 mm; Dimension S2: 6 mm; Load capacity per pair: 50 kg

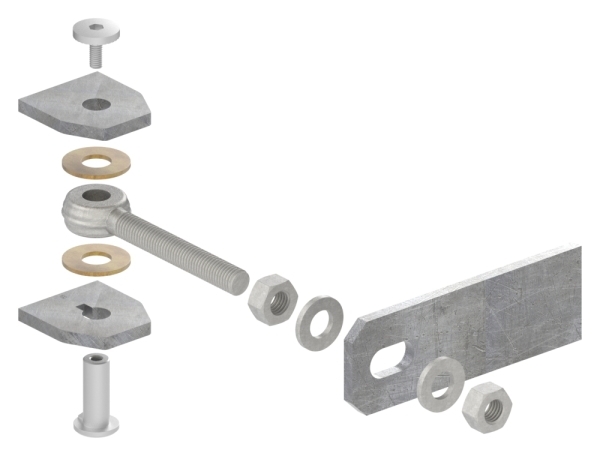

[ Further Specific Details ] Adjustable gate hinge, with slotted bracket, opening angle 180° / Eye bolts and pins hot-dip galvanised / with two brass washers / Pin rotation stop and locking screw
[ Application ] Position the gate hinge where required and fit as appropriate
Eigenschaften
| Gewinde : | M12 |
|---|---|
| Versand Gurtmasspflichtig: | Nein |
| Werkstoff: | Stahl roh |
