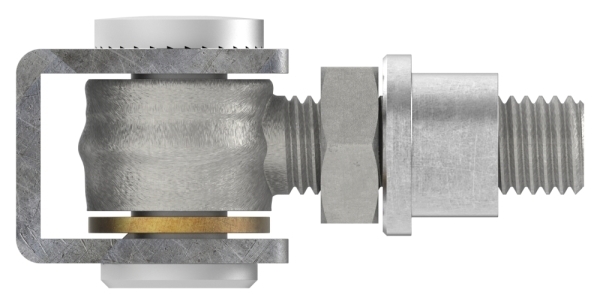

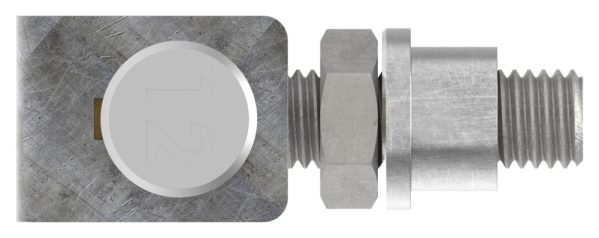

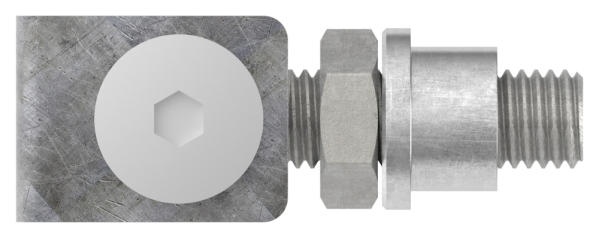

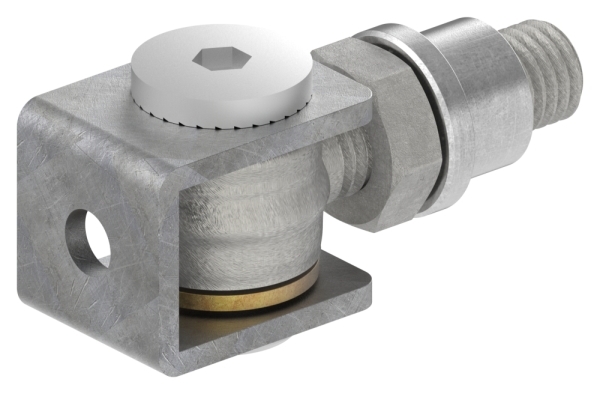

M12 adjustable weldable steel (uncoated) S235JR door hinge
FeNau Ltd
$8.90*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
1165
Product number:
30.3503.8
EAN:
4251412917257
Gewicht:
0.14 kg
Description
Product information "M12 adjustable weldable steel (uncoated) S235JR door hinge"
M12 hinge | adjustable | weldable | S235JR steel (uncoated)
[ Technical details ] S235JR steel, raw
[ Specific details ] Dimension A: 25 mm; Dimension B: 33 mm; Dimension C: 25 mm; Dimension E: 15 mm; Dimension F: Ø 18 mm; Dimension G: 20 mm; Dimension H: 22 mm; Dimension L: 65 mm; Dimension M: M12; Dimension R: 38–53 mm; Dimension S: 3 mm; Load capacity per pair: 50 kg

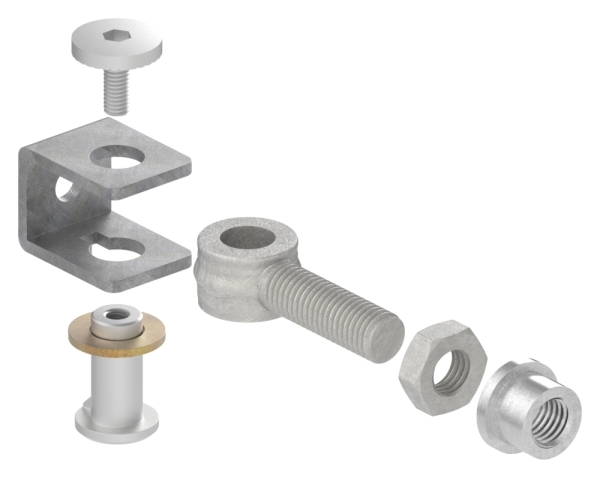

[ Further Specific Details ] Adjustable gate hinge with U-bracket / hot-dip galvanised eye bolts and pins / with a brass washer / pin rotation stop and locking screw
[ Application ] Position the gate hinge where required, adjust using the U-bracket
Eigenschaften
| Gewinde : | M12 |
|---|---|
| Versand Gurtmasspflichtig: | Nein |
| Werkstoff: | Stahl roh |
