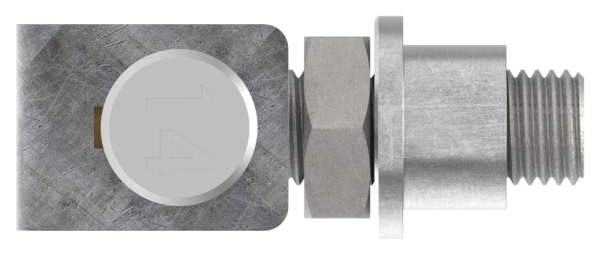

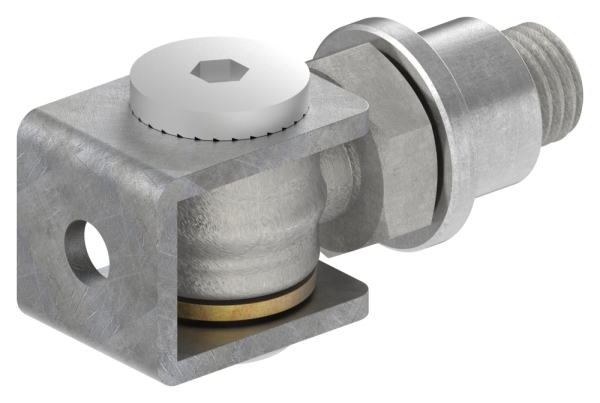

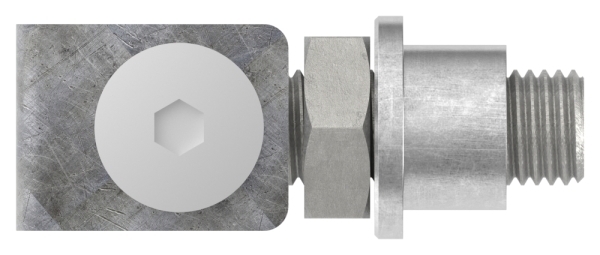

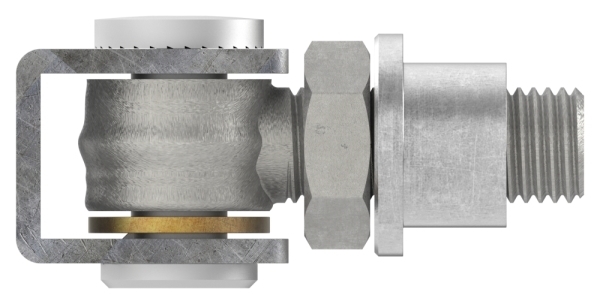

M14 adjustable weldable steel door hinge (unfinished) S235JR
FeNau Ltd
$9.44*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
447
Product number:
30.3504.8
EAN:
4251412917264
Gewicht:
0.19 kg
Description
Product information "M14 adjustable weldable steel door hinge (unfinished) S235JR"
M14 door hinge | adjustable | weldable | S235JR steel (uncoated)
[ Technical details ] S235JR steel, raw
[ Specific details ] Dimension A: 25 mm; Dimension B: 31 mm; Dimension C: 27 mm; Dimension E: 16 mm; Dimension F: Ø 20 mm; Dimension G: 19 mm; Dimension H: 35 mm; Dimension L: 65 mm; Dimension M: M14; Dimension R: 38–53 mm; Dimension S: 3 mm; Load capacity per pair: 75 kg

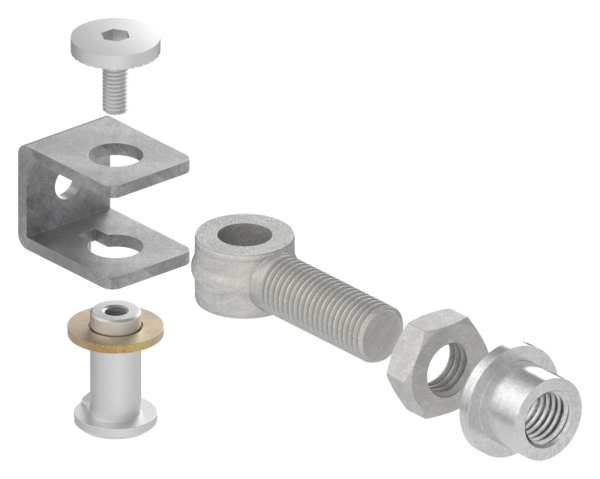

[ Further Specific Details ] Adjustable gate hinge with U-bracket / hot-dip galvanised eye bolts and pins / with a brass washer / pin rotation stop and locking screw
[ Application ] Position the gate hinge where required, adjust using the U-bracket
Eigenschaften
| Gewinde : | M14 |
|---|---|
| Versand Gurtmasspflichtig: | Nein |
| Werkstoff: | Stahl roh |
