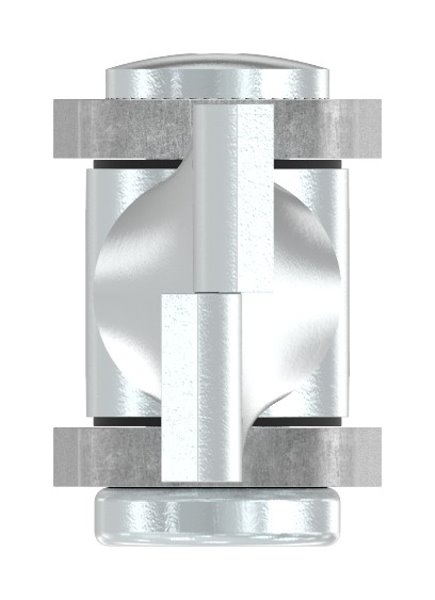

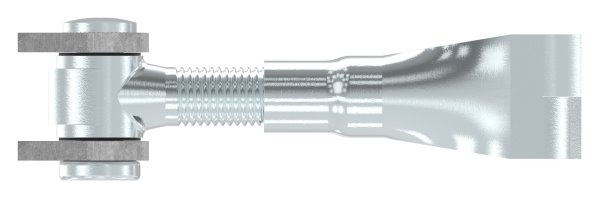

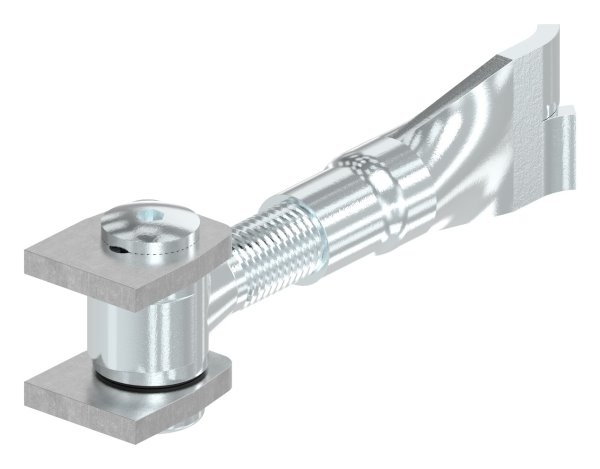

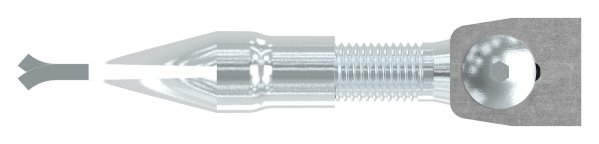

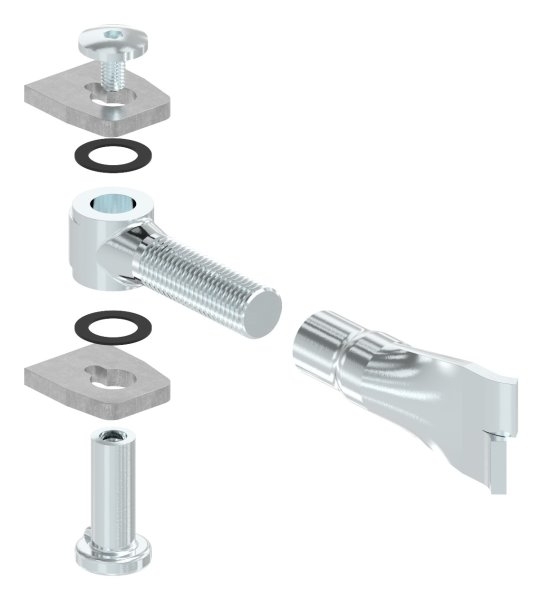

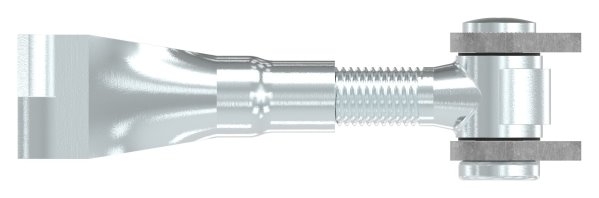

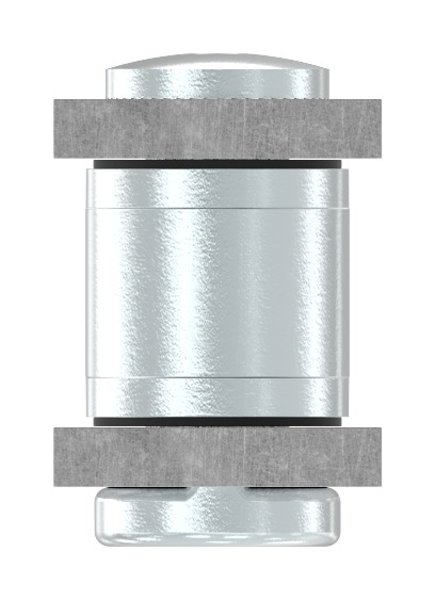

M18 adjustable door hinge for embedding, steel (unfinished) S235JR
Product information "M18 adjustable door hinge for embedding, steel (unfinished) S235JR"
[ Technical details ] S235JR steel, raw

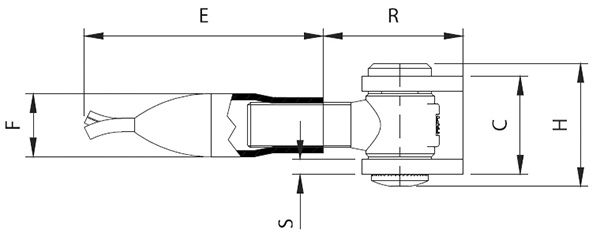

[ Specific details ] Dimension A: 33 mm; Dimension B: 40 mm; Dimension C: 39 mm; Dimension E: 95 mm; Dimension F: Ø 25 mm; Dimension G: 25 mm; Dimension H: 49 mm; Dimension M: M18; Dimension P: 38 mm; Dimension R: 45–65 mm; Dimension S: 6 mm; Load capacity per pair: 125 kg
[ Further specific details ] Gate hinge for embedding, adjustable, galvanised
[ Application ] Position the gate hinge where required and finish the installation accordingly
| Gewinde : | M18 |
|---|---|
| Werkstoff: | Stahl S235JR, roh |
Product safety (GPSR)
Manufacturer / responsible person in the EU: FeNau GmbH, Veit-Stoß-Str. 20, 90579 Langenzenn, Germany · info@fenau.eu · +49 911 97917230
Safety information: metal products may have sharp edges – wear protective gloves. Observe permissible loads and installation instructions; secure components properly before use.
All product safety information → · Your legal guarantee rights →
