M18 adjustable weldable steel (uncoated) S235JR door hinge
FeNau Ltd
$12.64*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
87
Product number:
30.3512.8
EAN:
4251412917349
Gewicht:
0.38 kg
Description
Product information "M18 adjustable weldable steel (uncoated) S235JR door hinge"
M18 door hinge | adjustable | weldable | S235JR steel (uncoated)
[ Technical details ] Steel S235JR, raw

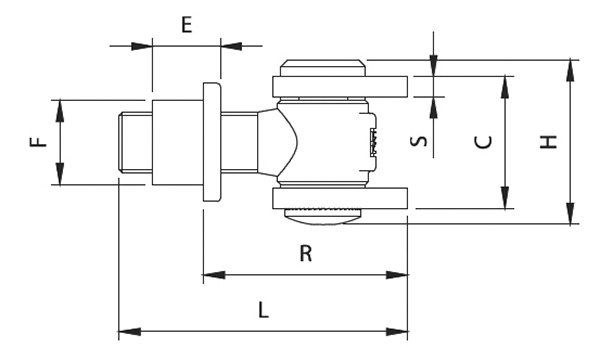

[ Specific details ] Dimension A: 33 mm; Dimension B: 40 mm; Dimension C: 39 mm; Dimension E: 20 mm; Dimension F: Ø25 mm; Dimension G: 25 mm; Dimension H: 49 mm; Dimension L: 85 mm; Dimension M: M18; Dimension R: 50–70 mm; Dimension S: 6 mm; Load capacity per pair: 125 kg
[ Further Specific Details ] Weld-on gate hinge, adjustable, galvanised
[ Application ] Position the gate hinge where required and proceed with further processing at the appropriate point
Eigenschaften
| Gewinde : | M18 |
|---|---|
| Versand Gurtmasspflichtig: | Nein |
| Werkstoff: | Stahl roh |
