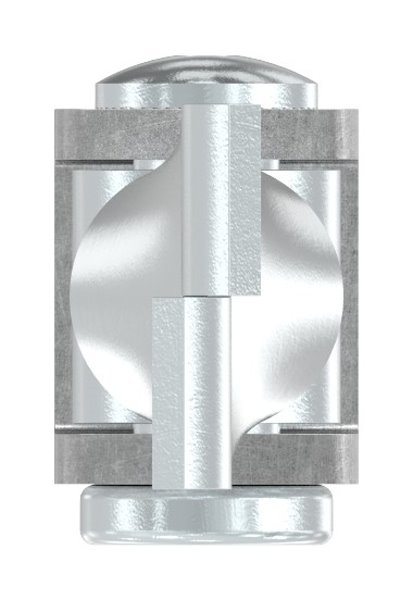

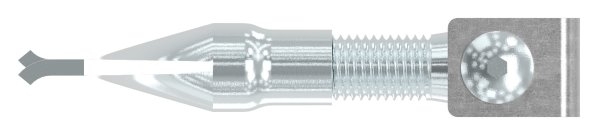

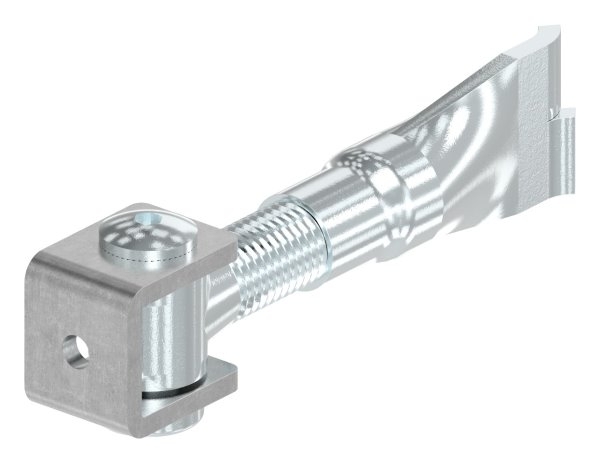

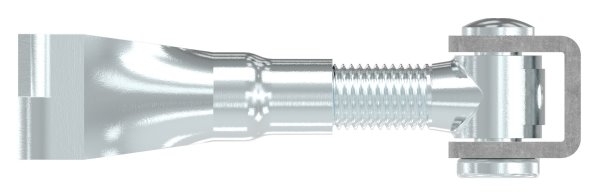

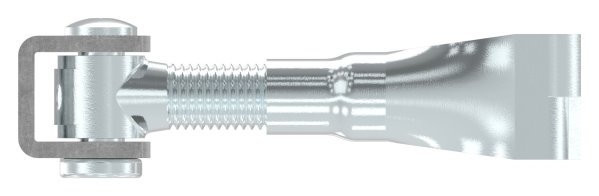

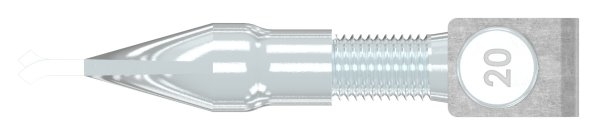

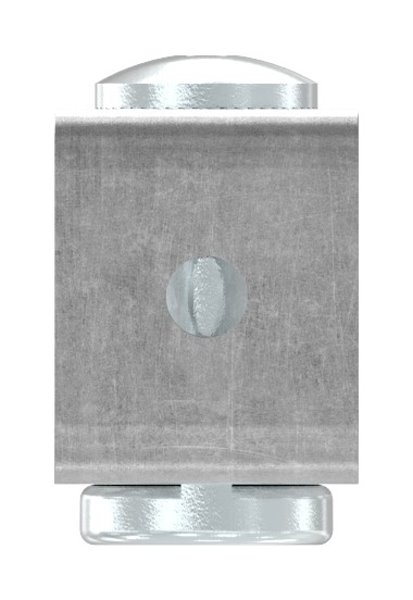

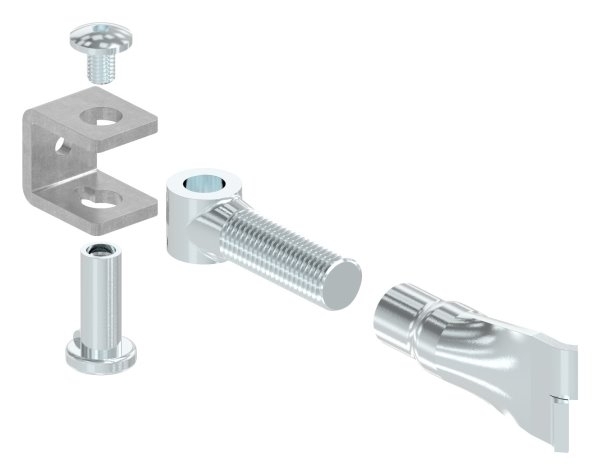

M20 adjustable door hinge for embedding, steel (uncoated) S235JR
$17.84*
Available now, delivery time: Lieferzeit 5-10 Werktage
Product information "M20 adjustable door hinge for embedding, steel (uncoated) S235JR"
[ Technical details ] Steel S235JR, raw
[ Specific details ] Dimension A: 30 mm; Dimension B: 40 mm; Dimension C: 37 mm; Dimension E: 95 mm; Dimension F: Ø 27 mm; Dimension G: 25 mm; Dimension H: 47 mm; Dimension M: M20; Dimension P: 38; Dimension R: 43 73; Dimension S: 5 mm; Load capacity per pair: 150 kg
[ Further Specific Details ] Gate hinge for embedding, adjustable, galvanised
[ Application ] Position the gate hinge where required and finish the installation accordingly
| Gewinde : | M20 |
|---|---|
| Werkstoff: | Stahl roh |
Product safety (GPSR)
Manufacturer / responsible person in the EU: FeNau GmbH, Veit-Stoß-Str. 20, 90579 Langenzenn, Germany · info@fenau.eu · +49 911 97917230
Safety information: metal products may have sharp edges – wear protective gloves. Observe permissible loads and installation instructions; secure components properly before use.
