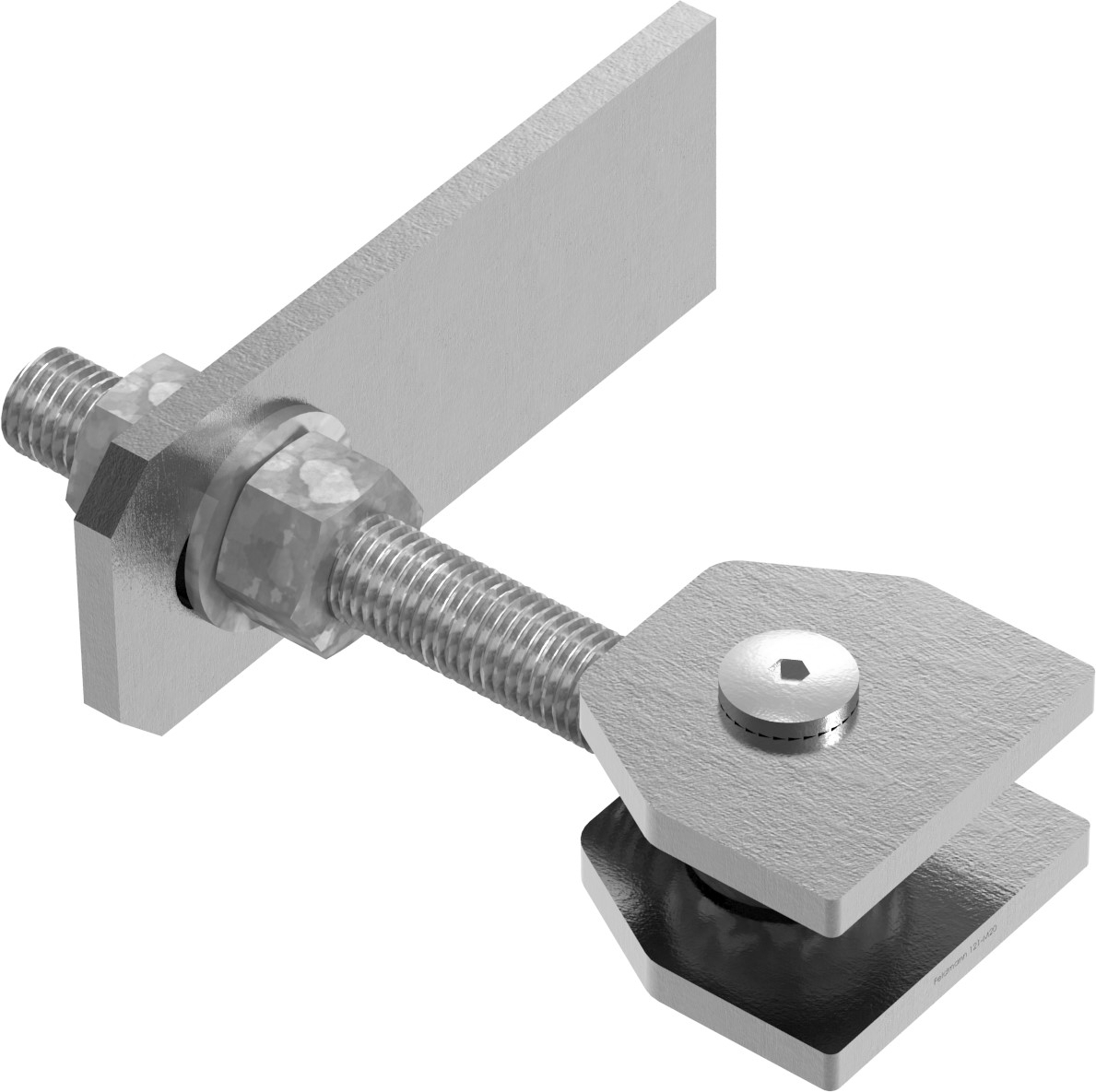

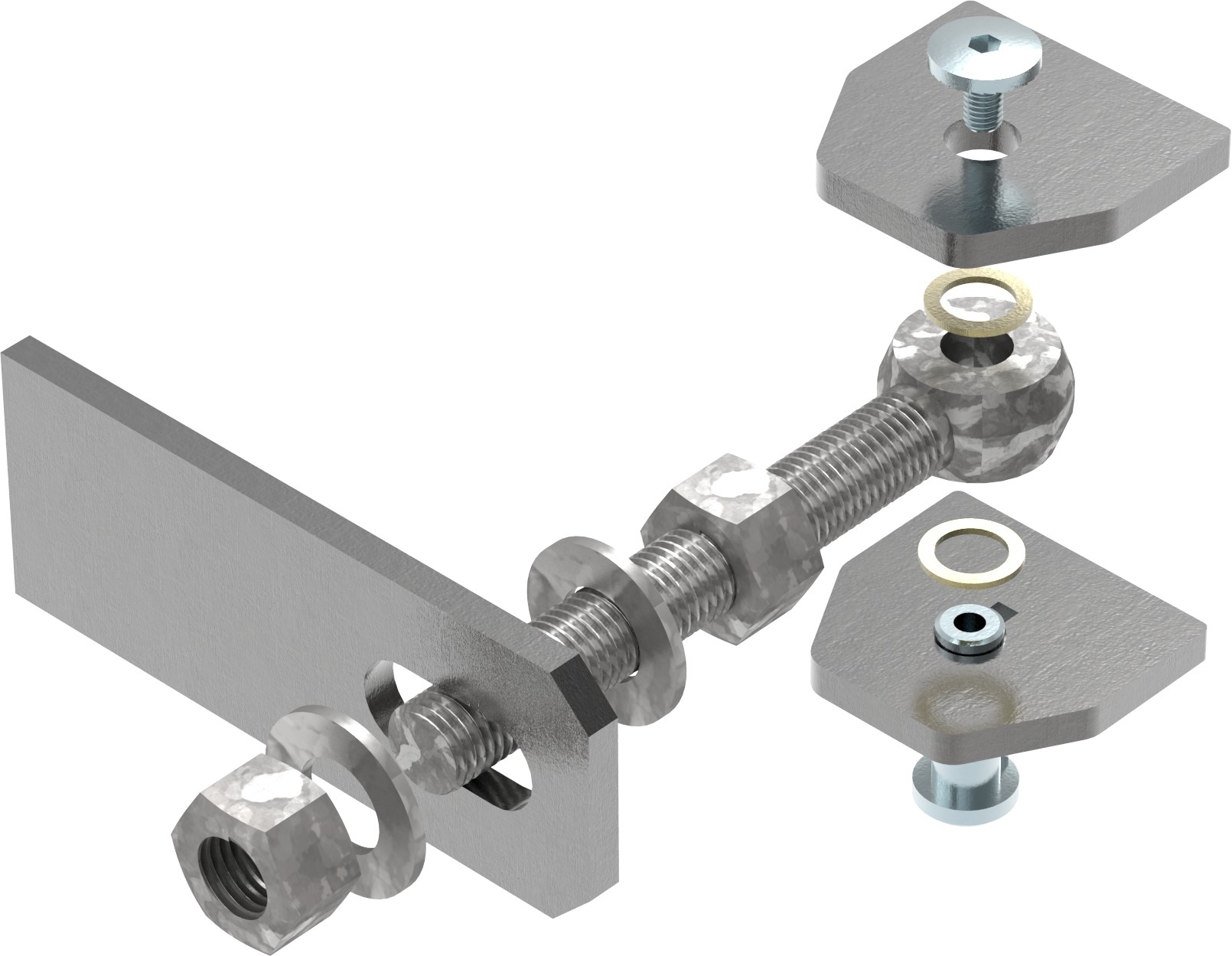

M20 adjustable door hinge, slotted plate, steel (uncoated) S235JR
$19.18*
Available now, delivery time: Lieferzeit 1-2 Werktage
Product information "M20 adjustable door hinge, slotted plate, steel (uncoated) S235JR"
Robust gate hinge made from S235JR steel in a raw finish for sturdy and durable gate fixings. The adjustable design with a slotted bracket allows for precise alignment of the gate.
Dimensioned drawings can be found below in the ‘Technical Documents’ section.
- Material: S235JR steel, raw
- Thread: M20
- Adjustable gate hinge with slotted bracket
- Opening angle up to 180°
- Eye bolts and bolts hot-dip galvanised
- Includes two brass washers
- With bolt rotation stop and locking screw
- Load capacity: 125 kg per pair
Opening angle 180° Hot-dip
galvanised eye bolts
and bolts including two brass washers as well as a bolt rotation stop and locking screw
Load capacity per pair 125 kg
| Gewinde : | M20 |
|---|---|
| Werkstoff: | Stahl roh |
