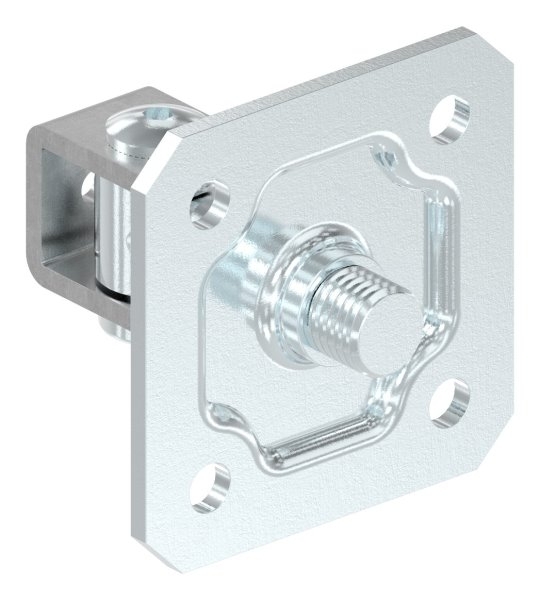

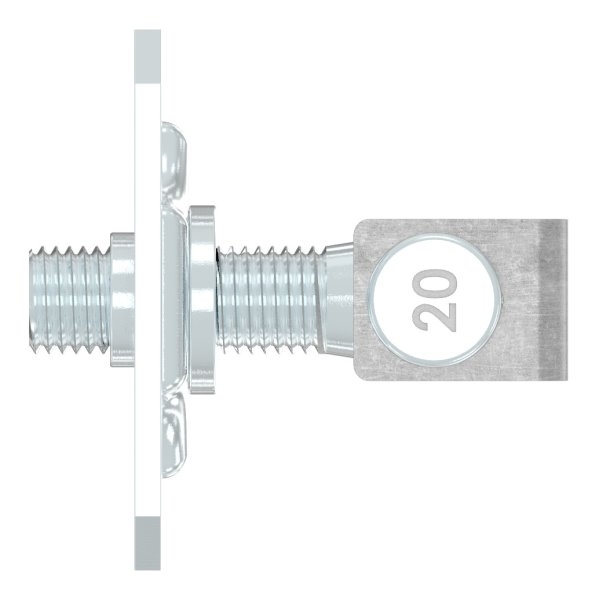

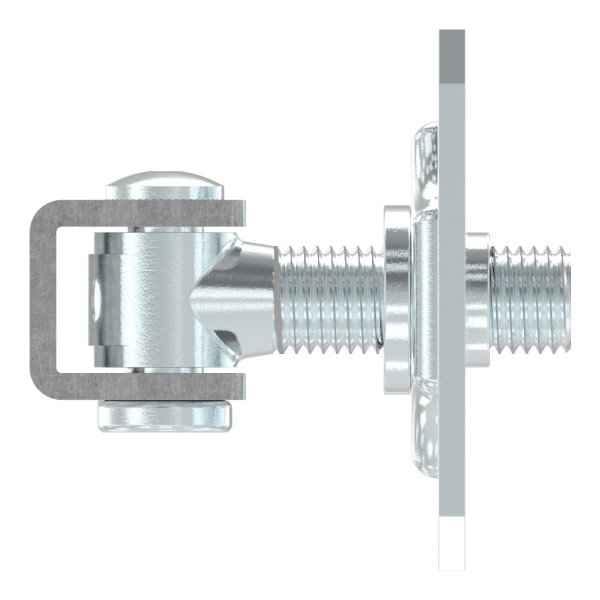

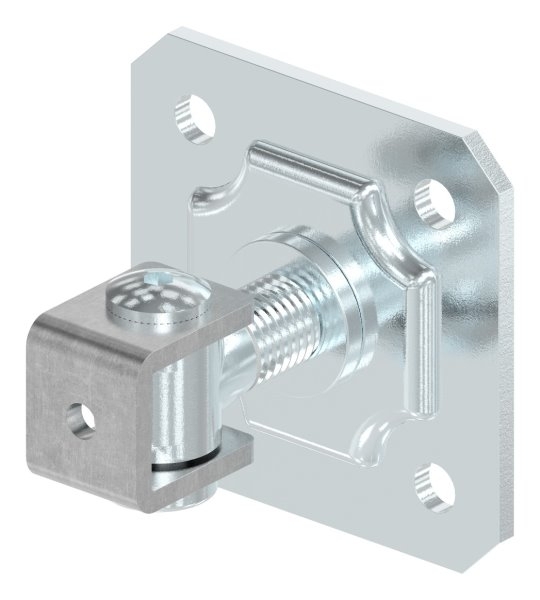

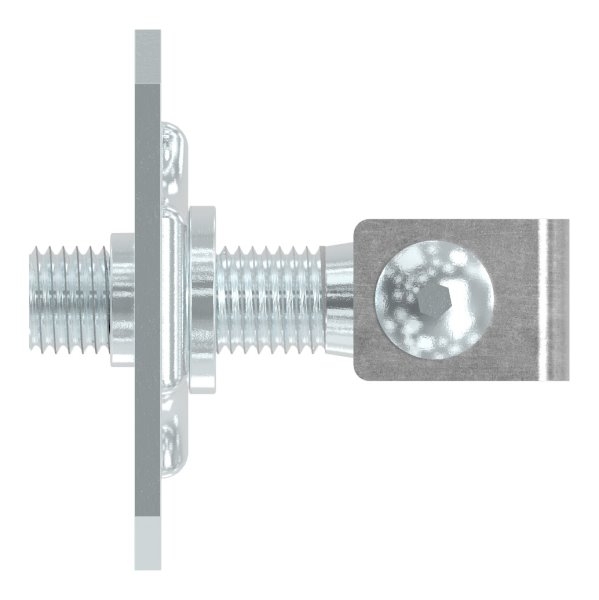

M20 adjustable door hinge with mounting plate, steel (uncoated) S235JR
FeNau Ltd
$22.26*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
355
Product number:
30.3535.7
EAN:
4251412917462
Gewicht:
0.81 kg
Description
Product information "M20 adjustable door hinge with mounting plate, steel (uncoated) S235JR"
M20 door hinge | adjustable | with mounting plate | S235JR steel (uncoated)
[ Technical details ] S235JR steel, raw

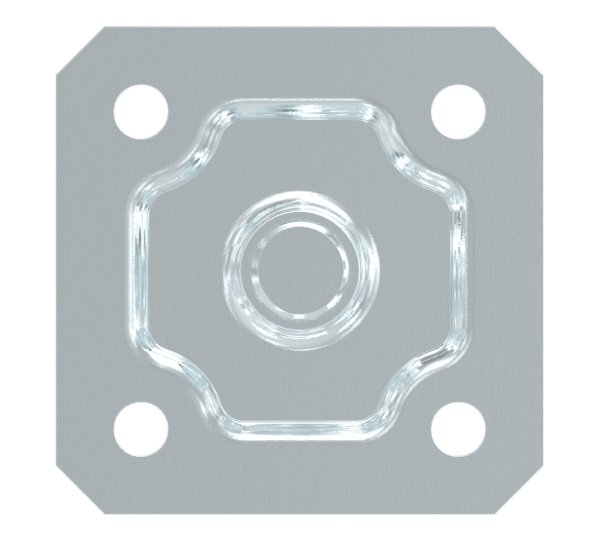

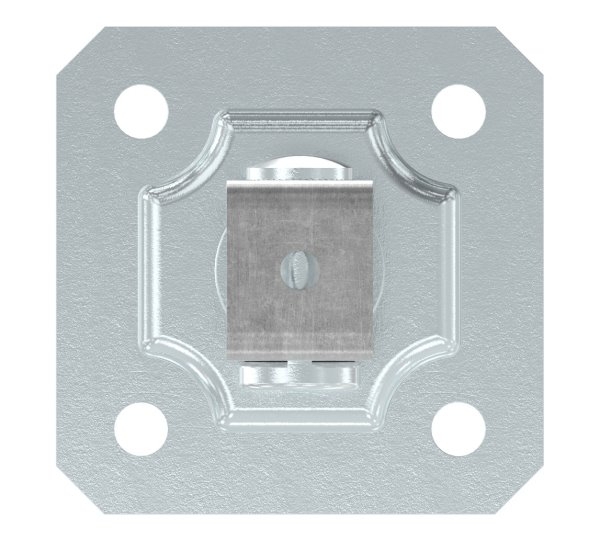

[ Specific details ] Plate: 100x100x5 mm; with 4 holes Ø 11 mm; Dimension A: 30 mm; Dimension B: 40 mm; Dimension C: 37 mm; Dimension G: 25 mm; Dimension H: 47 mm; Dimension L: 85 mm; Dimension M: M20; Dimension R: 60–85 mm; Dimension S: 5 mm; Load capacity per pair: 150 kg
[ Further Specific Details ] Gate hinge with mounting plate, adjustable, galvanised
[ Application ] Position the gate hinge where required, adjust at the lower end of the eye bolt
Eigenschaften
| Gewinde : | M20 |
|---|---|
| Versand Gurtmasspflichtig: | Nein |
| Werkstoff: | Stahl roh |
