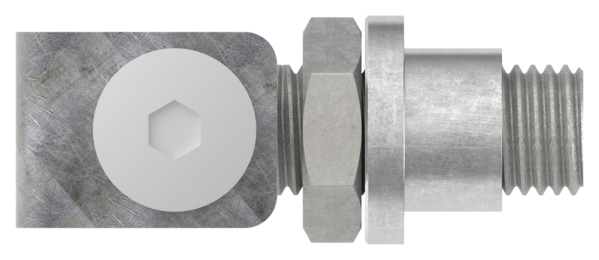

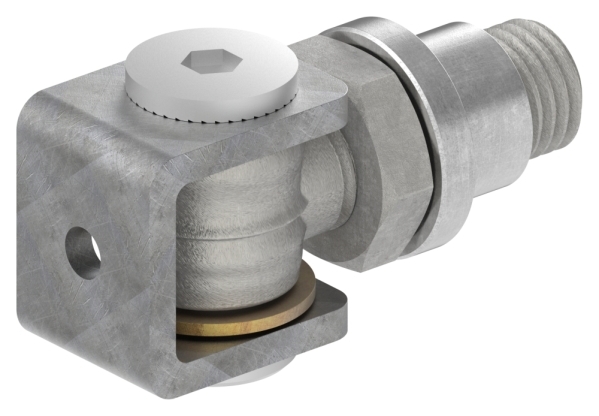

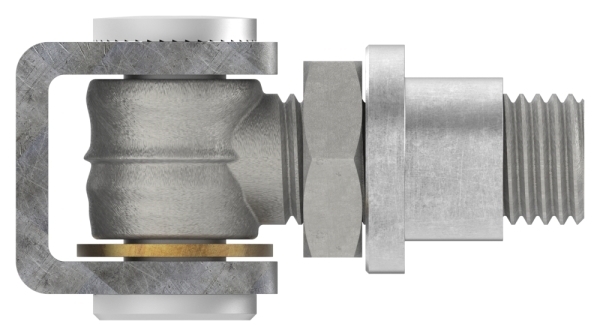

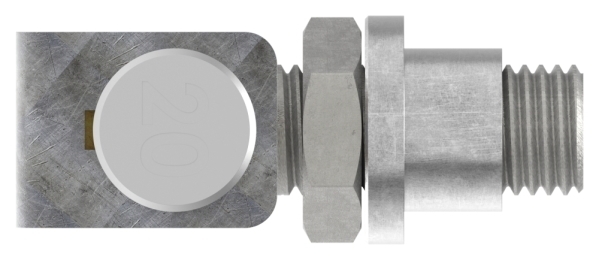

M20 adjustable weldable steel (uncoated) S235JR door hinge
FeNau Ltd
$11.18*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
1677
Product number:
30.3506.8
EAN:
4251412917288
Gewicht:
0.4 kg
Description
Product information "M20 adjustable weldable steel (uncoated) S235JR door hinge"
M20 hinge | adjustable | weldable | steel (uncoated) S235JR
[ Technical details ] Steel S235JR, raw
[ Specific details ] Dimension A: 30 mm; Dimension B: 40 mm; Dimension C: 37 mm; Dimension E: 20 mm; Dimension F: Ø 25 mm; Dimension G: 25 mm; Dimension H: 50 mm; Dimension L: 84 mm; Dimension M: M20; Dimension R: 49.75 mm; Dimension S: 5 mm; Load capacity per pair: 150 kg

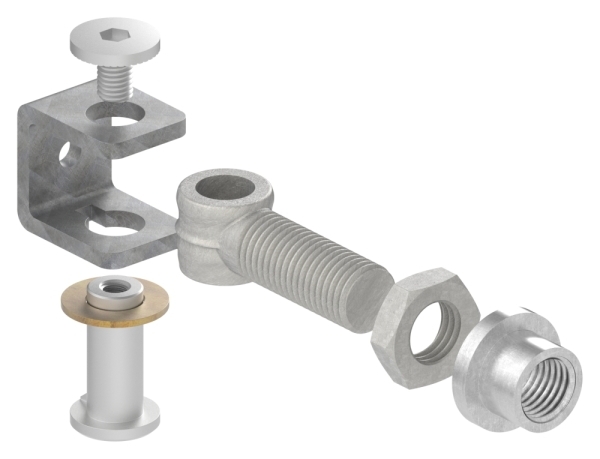

[ Further Specific Details ] Adjustable gate hinge with U-bracket / hot-dip galvanised eye bolts and pins / with a brass washer / pin rotation stop and locking screw
[ Application ] Position the gate hinge where required, adjust using the U-bracket
Eigenschaften
| Gewinde : | M20 |
|---|---|
| Versand Gurtmasspflichtig: | Nein |
| Werkstoff: | Stahl roh |
