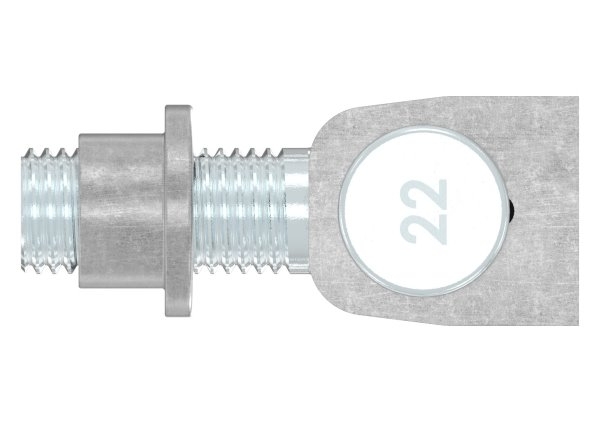

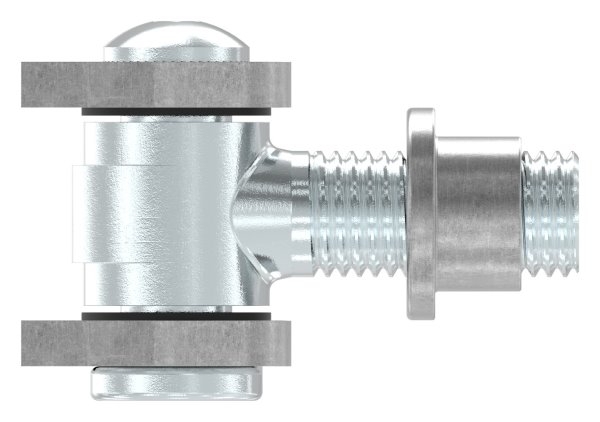

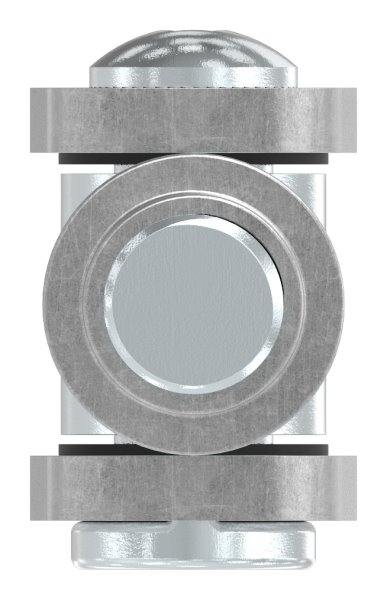

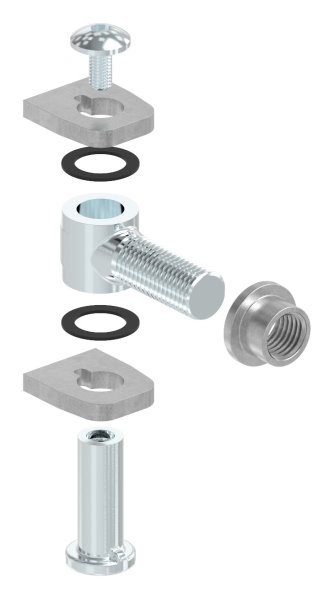

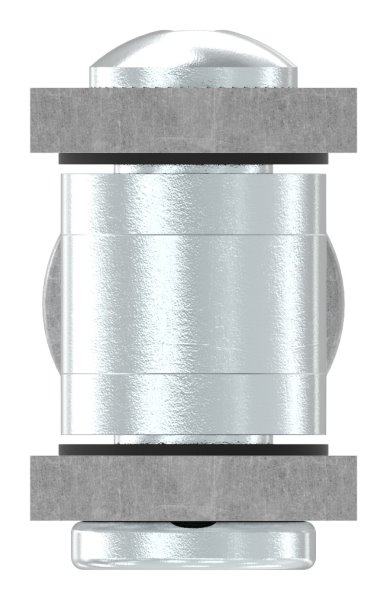

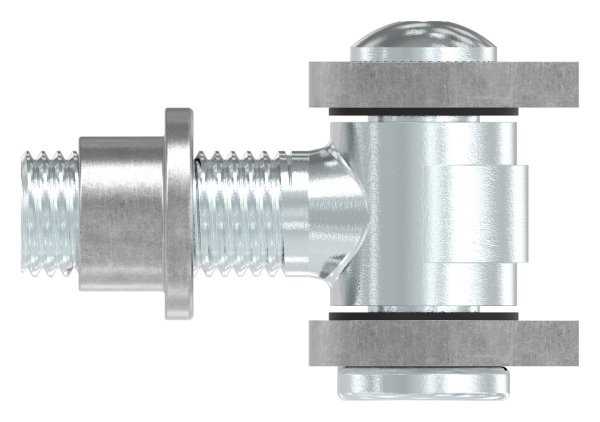

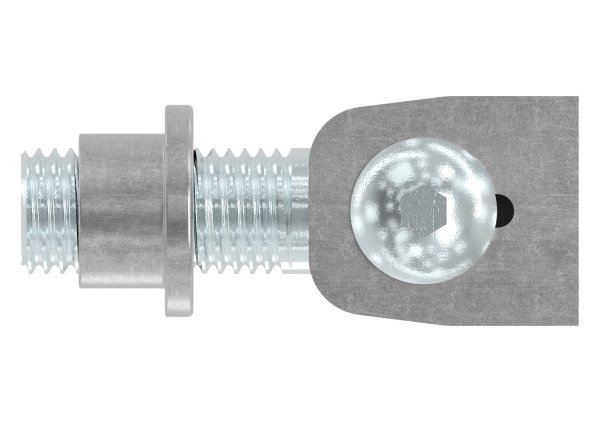

M22 adjustable weldable steel (uncoated) S235JR door hinge
FeNau Ltd
$25.10*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
68
Product number:
30.3513.8
EAN:
4251412917356
Gewicht:
0.69 kg
Description
Product information "M22 adjustable weldable steel (uncoated) S235JR door hinge"
M22 door hinge | adjustable | weldable | S235JR steel (uncoated)
[ Technical details ] Steel S235JR, raw
[ Specific details ] Dimension A: 40 mm; Dimension B: 47 mm; Dimension C: 53 mm; Dimension E: 20 mm; Dimension F: Ø27 mm; Dimension G: 27 mm; Dimension H: 64 mm; Dimension L: 95 mm; Dimension M: M22; Dimension R: 55–80 mm; Dimension S: 8 mm; Load capacity per pair: 220 kg
[ Further Specific Details ] Gate hinge for welding, adjustable, galvanised
[ Application ] Position the gate hinge where required and proceed with further processing at the appropriate point
Eigenschaften
| Gewinde : | M22 |
|---|---|
| Versand Gurtmasspflichtig: | Nein |
| Werkstoff: | Stahl roh |
