M24 adjustable door hinge, slotted plate, steel (uncoated) S235JR
$33.58*
Available now, delivery time: Lieferzeit 1-2 Werktage
Product information "M24 adjustable door hinge, slotted plate, steel (uncoated) S235JR"
Robust gate hinge made from S235JR steel in a raw finish for sturdy and durable gate fixings. The adjustable design with a slotted bracket allows for precise alignment of the gate.

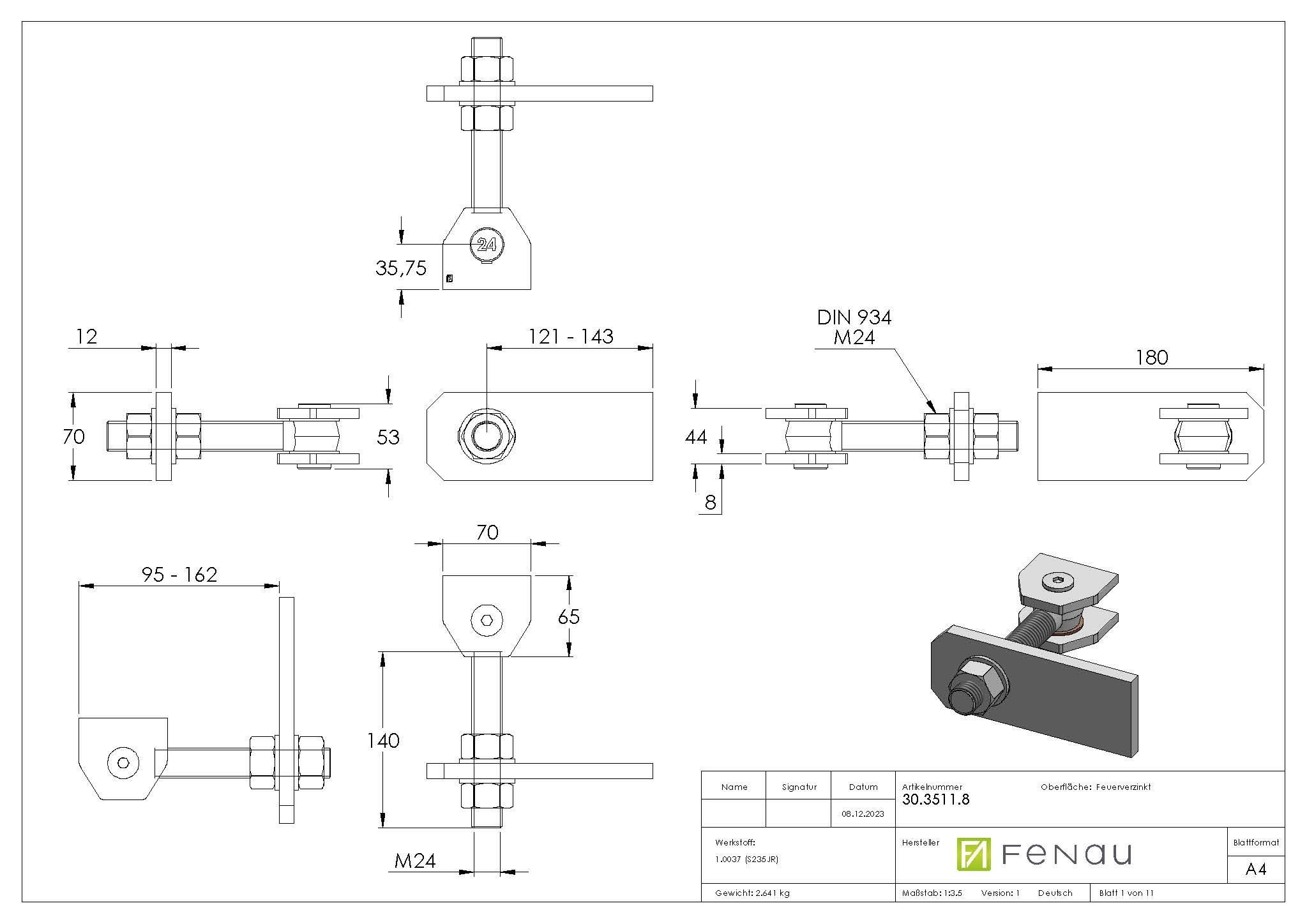

Dimensioned drawings can be found below in the ‘Technical Documents’ section.
- Material: S235JR steel, raw
- Thread: M24

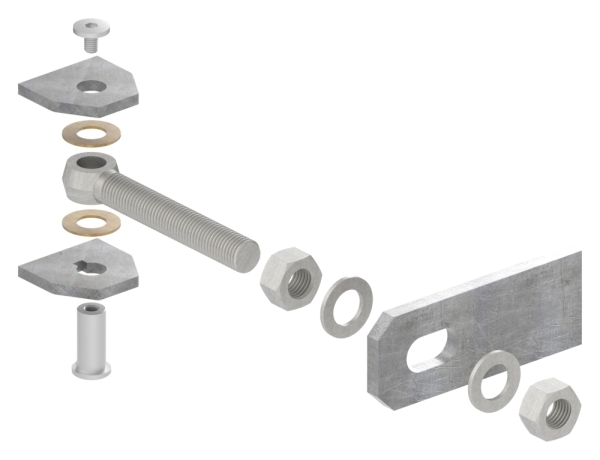

- Adjustable gate hinge with slotted bracket
- Opening angle up to 180°
- Eye bolts and bolts hot-dip galvanised
- Includes two brass washers
- With bolt rotation stop and locking screw
- Load capacity: 200 kg per pair
Opening angle 180° Hot-dip
galvanised eye bolts
and bolts including two brass washers as well as a bolt rotation stop and locking screw
Load capacity per pair 200 kg
| Gewinde : | M24 |
|---|---|
| Werkstoff: | Stahl roh |
Product safety (GPSR)
Manufacturer / responsible person in the EU: FeNau GmbH, Veit-Stoß-Str. 20, 90579 Langenzenn, Germany · info@fenau.eu · +49 911 97917230
Safety information: metal products may have sharp edges – wear protective gloves. Observe permissible loads and installation instructions; secure components properly before use.
All product safety information → · Your legal guarantee rights →
