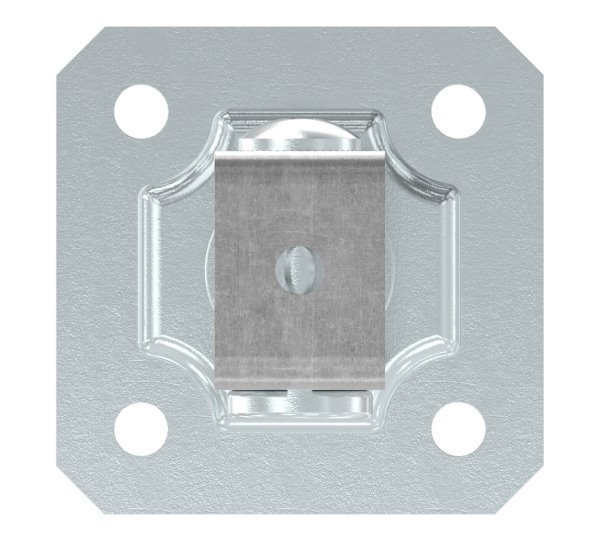

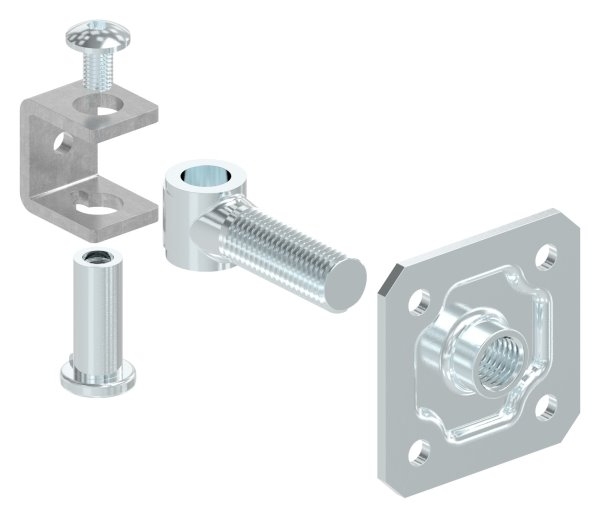

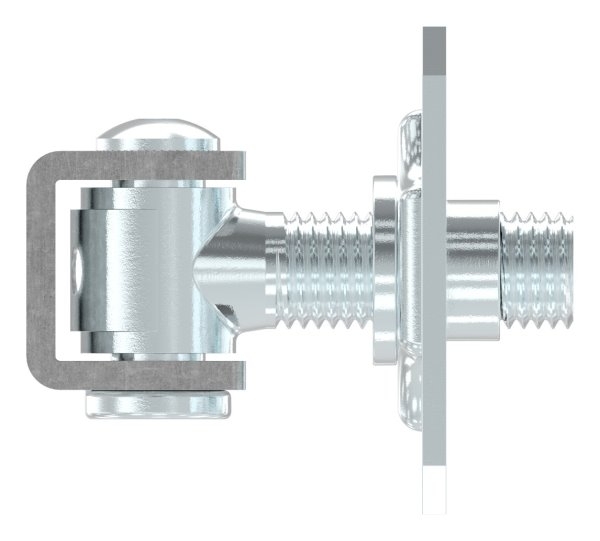

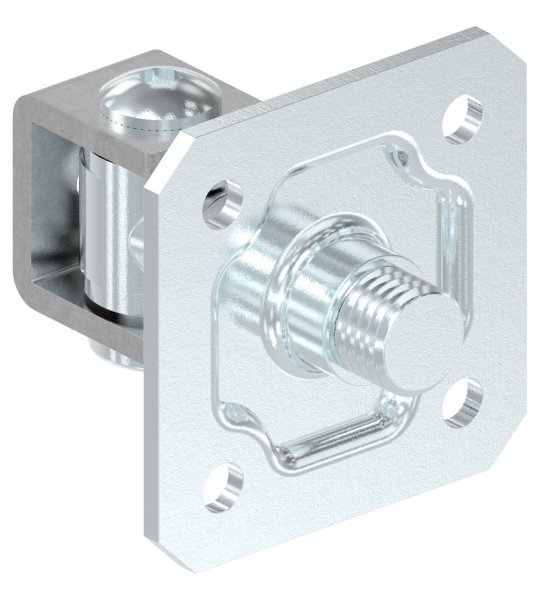

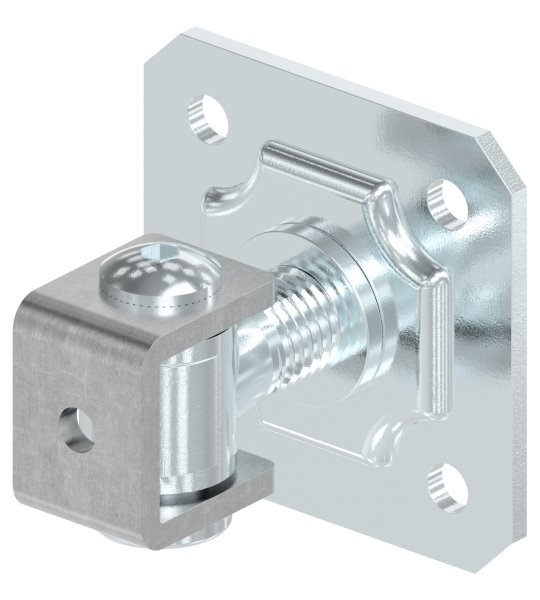

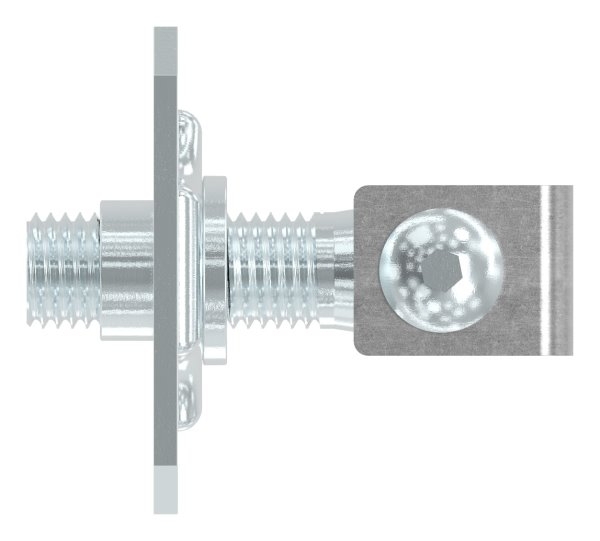

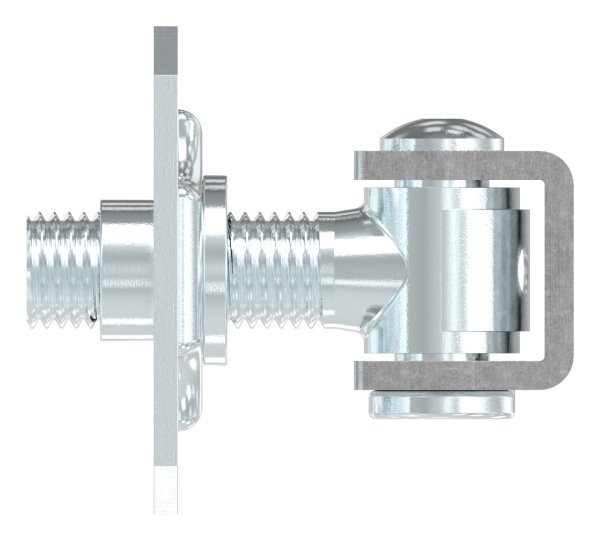

M24 adjustable door hinge with mounting plate, steel (uncoated) S235JR
FeNau Ltd
$44.98*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
37
Product number:
30.3536.7
EAN:
4251412917479
Gewicht:
1.1 kg
Description
Product information "M24 adjustable door hinge with mounting plate, steel (uncoated) S235JR"
M24 door hinge | adjustable | with mounting plate | S235JR steel (uncoated)
[ Technical details ] S235JR steel, raw

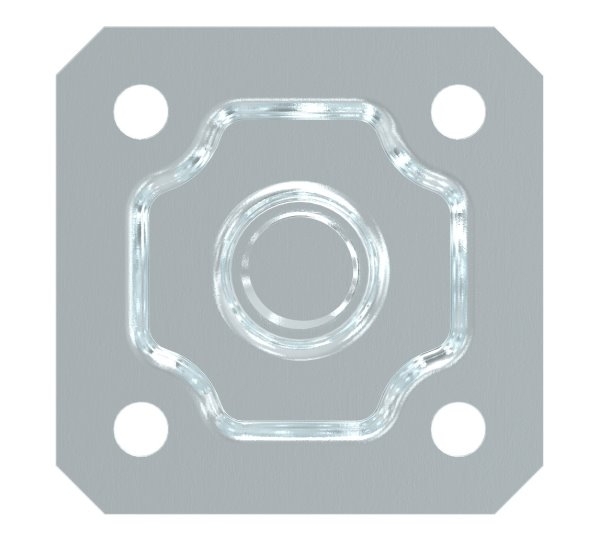

[ Specific details ] Plate: 100x100x5 mm; with 4 holes Ø 11 mm; Dimension A: 35 mm; Dimension B: 45 mm; Dimension C: 49 mm; Dimension G: 27 mm; Dimension H: 59 mm; Dimension L: 100 mm; Dimension M: M24; Dimension R: 70–100 mm; Dimension S: 8 mm; Load capacity per pair: 225 kg
[ Further Specific Details ] Gate hinge with mounting plate, adjustable, galvanised
[ Application ] Position the gate hinge where required, adjust at the lower end of the eye bolt
Eigenschaften
| Gewinde : | M24 |
|---|---|
| Versand Gurtmasspflichtig: | Nein |
| Werkstoff: | Stahl roh |
