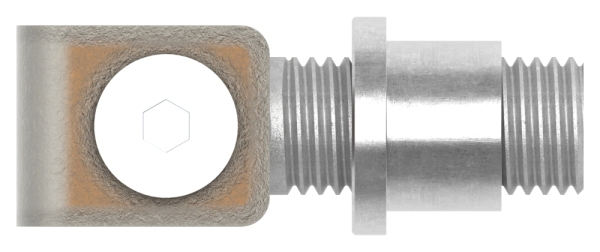

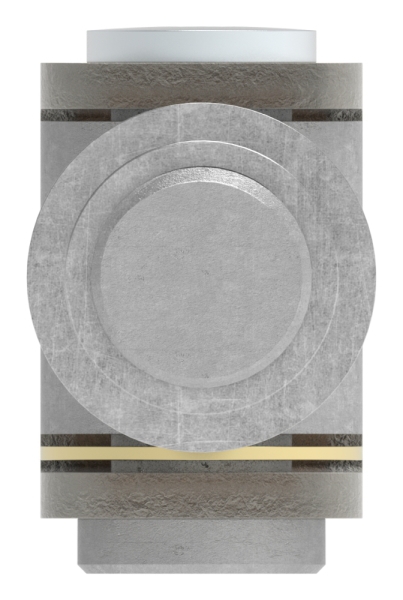

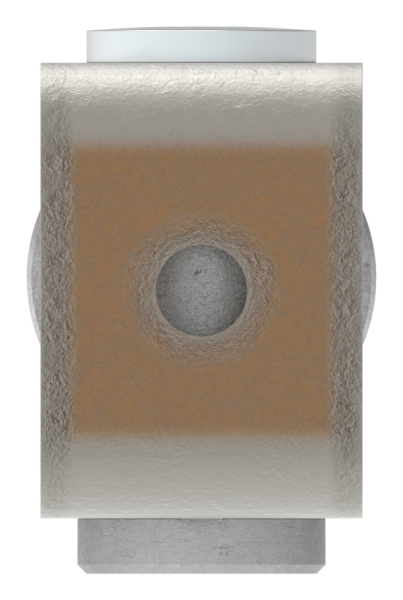

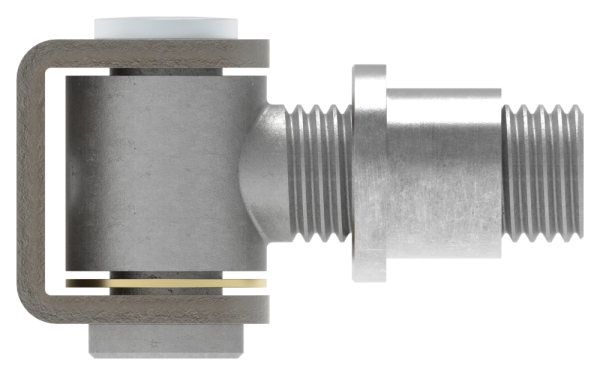

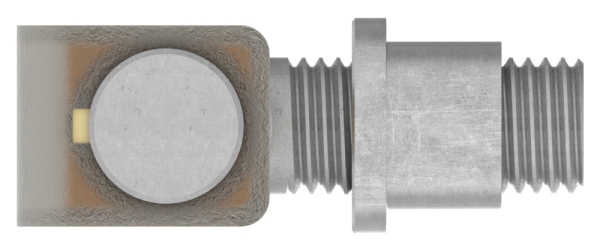

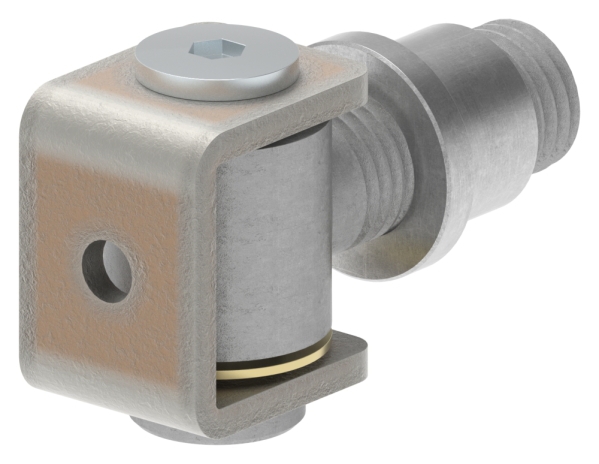

M24 adjustable weldable steel door hinge (uncoated) S235JR
FeNau Ltd
$17.68*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
512
Product number:
30.3507.8
EAN:
4251412917295
Gewicht:
0.65 kg
Description
Product information "M24 adjustable weldable steel door hinge (uncoated) S235JR"
M24 hinge | adjustable | weldable | steel (uncoated) S235JR
[ Technical details ] Steel S235JR, raw
[ Specific details ] Dimension A: 35.5 mm; Dimension B: 43.5 mm; Dimension C: 50 mm; Dimension E: 26 mm; Dimension F: Ø 30 mm; Dimension G: 27 mm; Dimension H: 60 mm; Dimension L: 94 mm; Dimension M: M24; Dimension R: 55–75 mm; Dimension S: 6 mm; Load capacity per pair: 225 kg

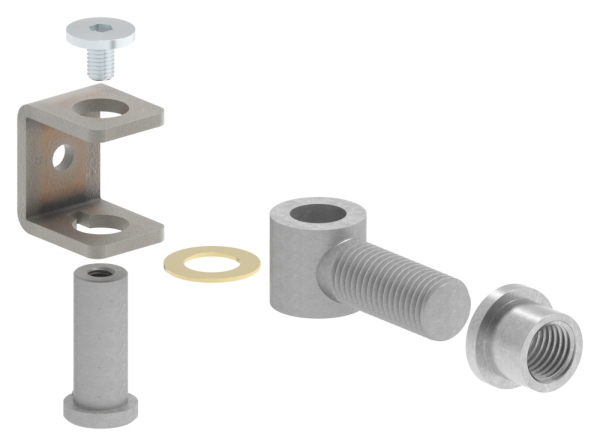

[ Further Specifications ] Adjustable gate hinge with U-bracket / hot-dip galvanised eye bolts and pins / with a brass washer / pin rotation stop and locking screw
[ Application ] Position the gate hinge where required and adjust using the U-bracket
Eigenschaften
| Gewinde : | M24 |
|---|---|
| Versand Gurtmasspflichtig: | Nein |
| Werkstoff: | Stahl roh |
