Mounting plate | 64x24x4 mm | for round tube Ø 42.4 mm | S235JR steel, untreated
$2.48*
Available now, delivery time: Lieferzeit 1-2 Werktage
Lagerbestand:
12657
Product number:
30.1405.8
EAN:
4251412944994
Gewicht:
0.04 kg
Description
Product information "Mounting plate | 64x24x4 mm | for round tube Ø 42.4 mm | S235JR steel, untreated"

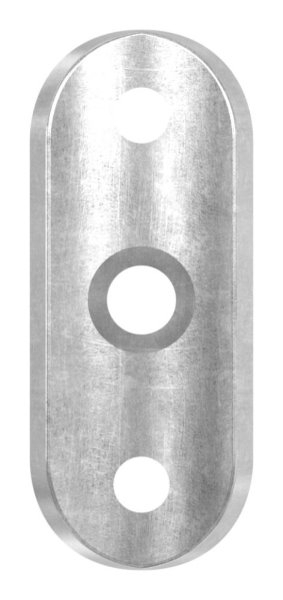

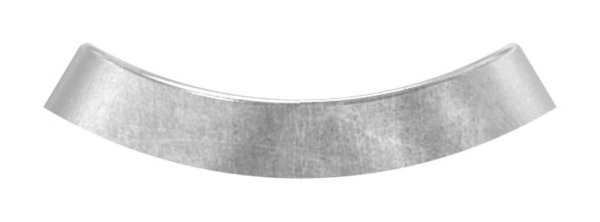

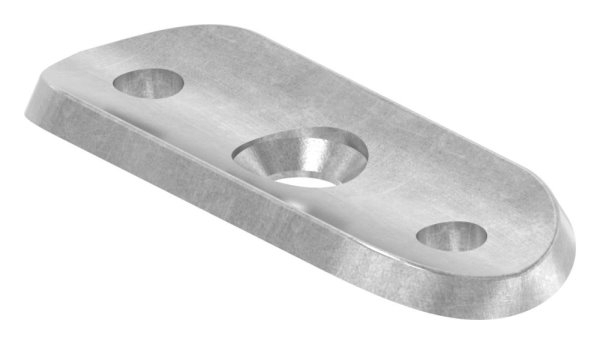

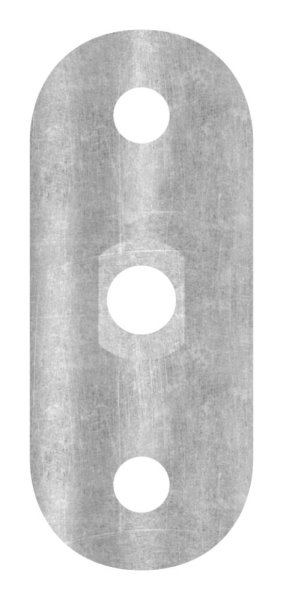

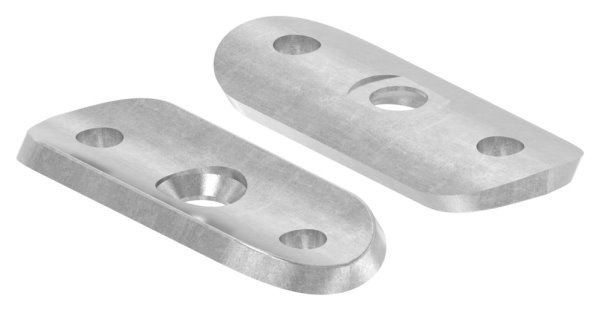

Mounting plate | 64x24x4 mm | for round tube Ø 42.4 mm | S235JR steel, untreated
[ Technical details ] S235JR steel, raw

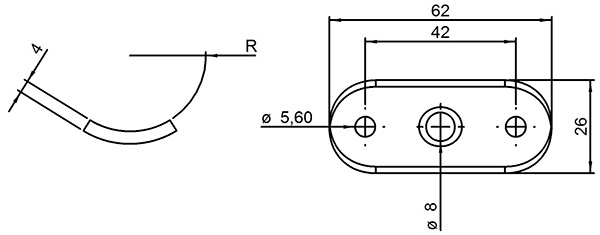

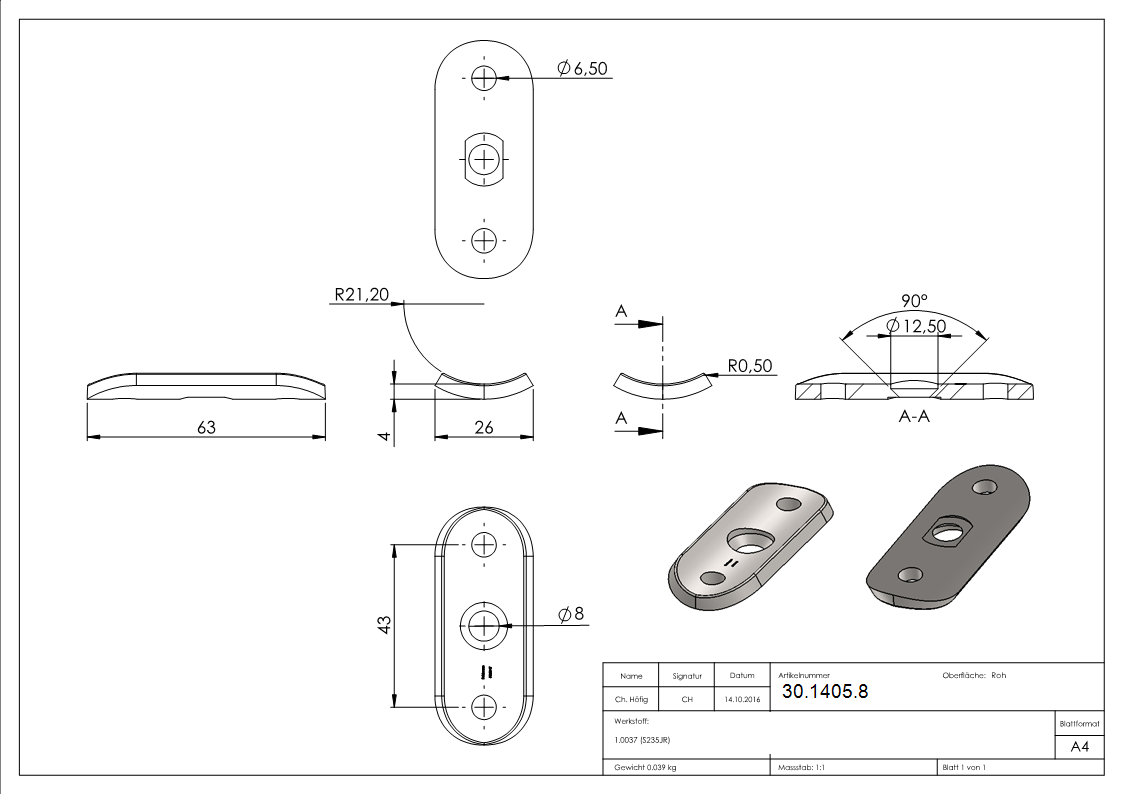

[ Specific details ] Handrail mounting plate 62x26x4 mm with 3 holes, centre hole countersunk for M6
[ Further specific details ] Dimensions: 64 x 24 x 4 mm; centre hole countersunk for M6; 2 outer holes 6.5 mm
[ Application ] For mounting handrail brackets
Eigenschaften
| Gewinde : | für M6 gesenkt |
|---|---|
| Länge: | 64 mm |
| Werkstoff: | S235JR (ST37), roh |
| Ø Für Rohr | Ø Außendurchmesser | Ø Anschluss: | 42,4 mm |
