Pipe connector | high-wall mounting, round with through-hole | 131TXB34 | 33.7 mm | 1" | Hot-dip galvanised and electro-galvanised

Rohraußendurchmesser: Ø 33,7 mm

FeNau Ltd

Rohrverbinder hohe Wandbefestigung rund mit Durchgangsbohrung Ø 33-7 mm -1- - Temperguss verzinkt - 131TXB34-131TXB34

$9.88*

Prices exclude VAT and are subject to delivery charges

Available now, delivery time: Lieferzeit 1-2 Werktage

Rohraußendurchmesser

Ø 21,3 mm

Ø 26,9 mm

Ø 33,7 mm

Stk

Stock: 208

Product number: 131TXB34

EAN: 4067014011985

Weight: 0.44 kg

20,000 items in stock

CAD data available after login

Over 200,000 satisfied customers

Worldwide delivery

Product information "Pipe connector | high-wall mounting, round with through-hole | 131TXB34 | 33.7 mm | 1" | Hot-dip galvanised and electro-galvanised"

Pipe connector | small round wall bracket with through-hole | 131TXB34 | 33.7 mm | 1" | malleable cast iron, hot-dip galvanised and electro-galvanised

[ Technical details ] Material: malleable cast iron; hot-dip galvanised and electro-galvanised with stainless steel clamping and cutting screws

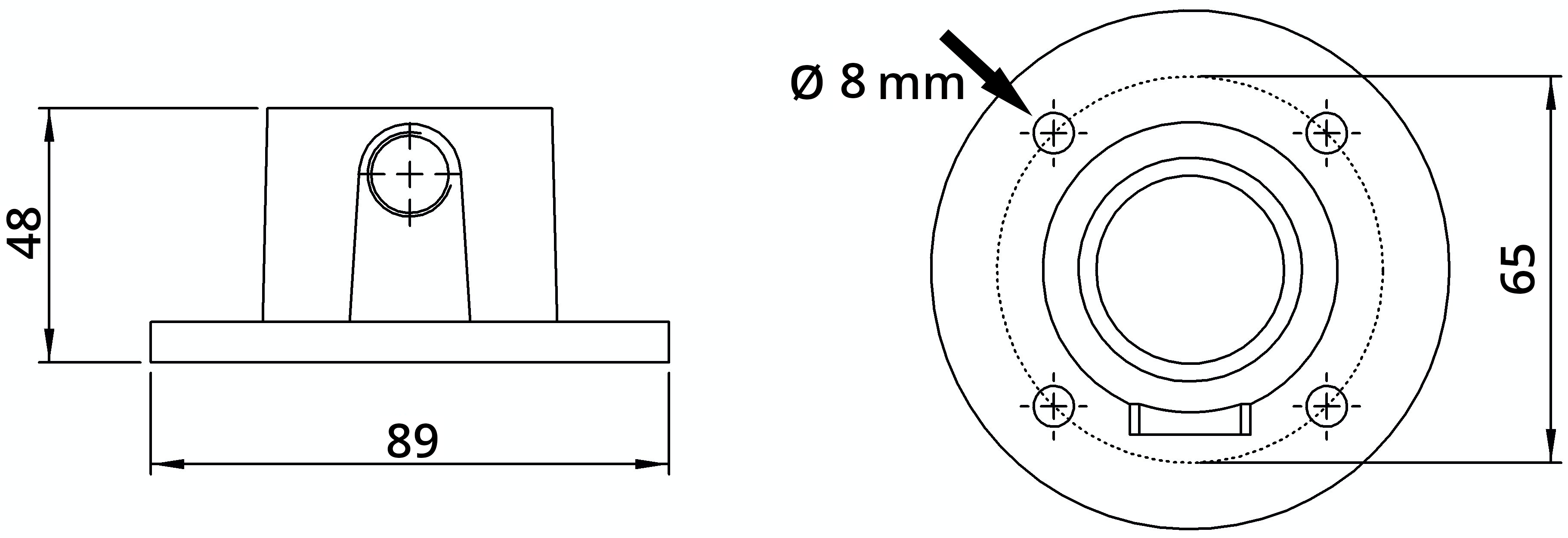

[ Specific details ] for pipe Ø: 33.7 mm (1"); dimension b: 48 mm; dimension c: 89 mm; dimension d: 65 mm
[ Further specific details ] required Allen key: Item No.: 301AB

Ø Für Rohr \| Ø Außendurchmesser \| Ø Anschluss:	Ø 33.7mm (1″)

Product safety (GPSR)

Manufacturer / responsible person in the EU: FeNau GmbH, Veit-Stoß-Str. 20, 90579 Langenzenn, Germany · info@fenau.eu · +49 911 97917230

Safety information: metal products may have sharp edges – wear protective gloves. Observe permissible loads and installation instructions; secure components properly before use.

All product safety information → · Your legal guarantee rights →
