Sheet metal profile step | Type N | Dimensions: 800x240x70 mm | S235JR, hot-dip galvanised
Stufe Breite x Tiefe:
800x240 mm
Product number:
40.M-BLECH-SB-D-8024.7
EAN:
4251412989568
Gewicht:
5.18 kg
Description
Product information "Sheet metal profile step | Type N | Dimensions: 800x240x70 mm | S235JR, hot-dip galvanised"
Sheet metal profile step | Type N | Dimensions: 800x240x70 mm | S235JR, hot-dip galvanised
[ Technical details ] S235JR, hot-dip galvanised

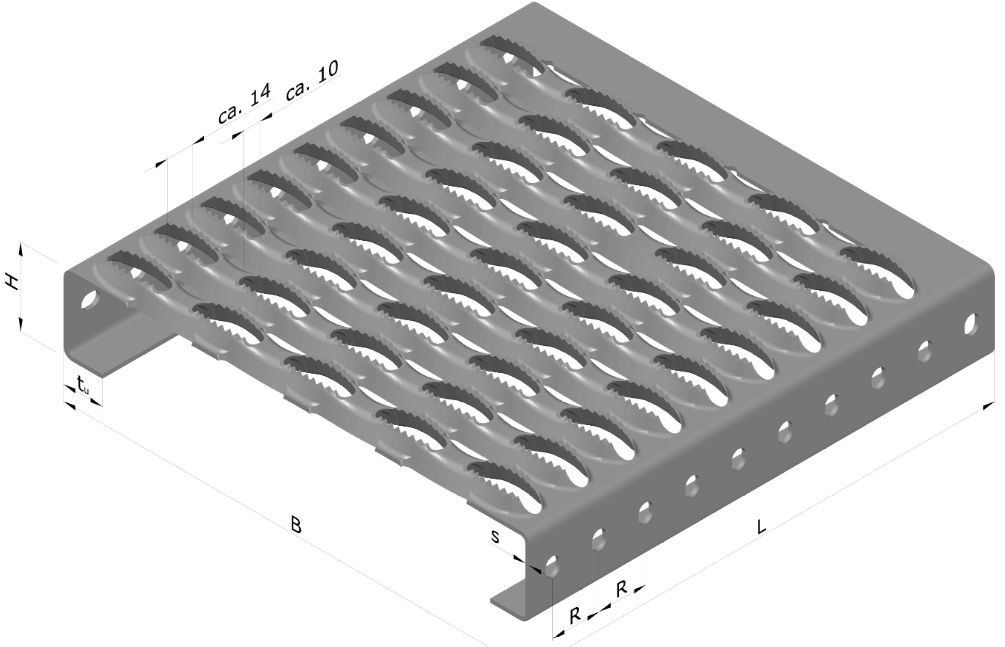

[ Dimensions ] Length: 800 mm; Depth: 240 mm; Height: 70 mm
[ Hole dimensions ] Notched slotted holes with anti-slip serrations; Centre perforation 14 mm deep, edge perforation 10 mm deep
[ Slip resistance ] Slip resistance class R13 (tested for DD11 hot-dip galvanised)
[ Load capacity ] Steps with point load 2.0 kN on a 100x100 load cube at the tread and 5.0 kN/m² distributed live load
