Retaining plate, for 42.4 mm pipe
FeNau Ltd
$6.00*
Available now, delivery time: Lieferzeit 5-10 Werktage
Stock:
63
Product number:
88.1160182.240.G.L
EAN:
4067014007490
Weight:
0.052 kg
Description
Product information "Retaining plate, for 42.4 mm pipe"

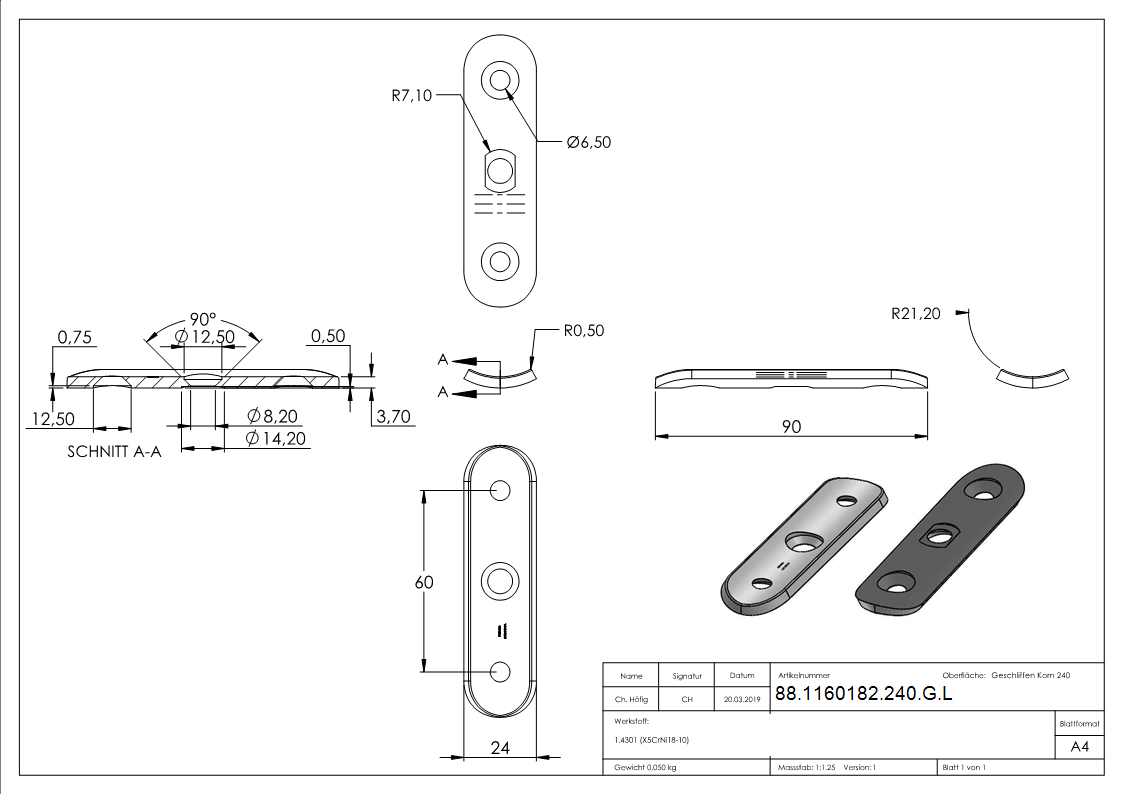

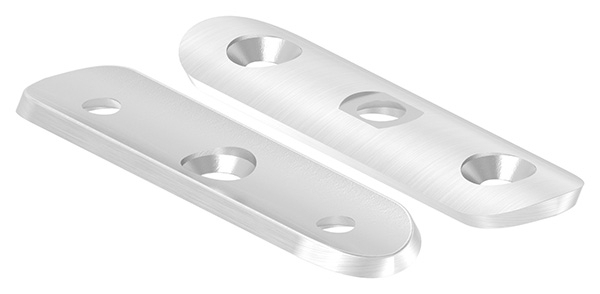

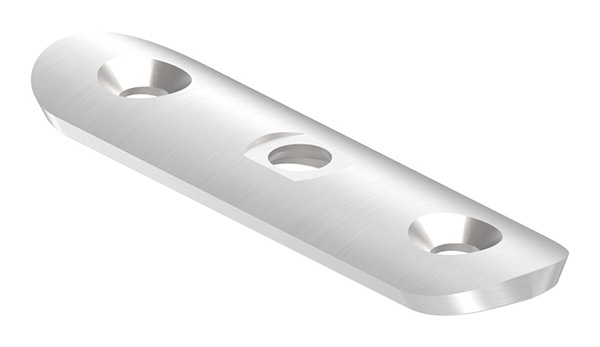

Long handrail mounting plate, 90 x 25 x 4 mm, for 42.4 mm tube, 3 x 6.5 mm holes, all holes countersunk for M6, V2A
Product features
| Werkstoff: | V2A |
|---|---|
| Ø Für Rohr | Ø Außendurchmesser | Ø Anschluss: | Ø 42.4mm (11⁄4″) |
Skip the product gallery
$0.70*
$10.74*
Zubehör
13.0001.4
Countersunk screw M6x10 mm, V2A
Countersunk screw M6x10 mm V2A
made of AISI 304 or 1.4301
stainless steel with hexagon socket
Weight: 0.01 kg
Available, : Lieferzeit 1-2 Werktage
11.2182.4
Stainless steel swivel pin Ø 14 x 76 mm – adjustable | External and internal threads (V2A)
Pin | Dimensions: 76 x 14 mm | with joint | external and internal threads | V2A
[ Technical details ] Made from 1.4301/V2A/AISI 304 stainless steel – 240-grit finish
[ Specific details ] Length (excluding threads): 76 mm; Diameter: 14 mm; External thread: M8 x 15 mm; Internal thread: M6 x 15 mm
Available, : Lieferzeit 1-2 Werktage
