Rubber seal set | for glass: 16.76–17.52 mm | Length: 3000 mm

Gummiset - fuer Glas- 16-76-17-52 mm - Laenge- 3000 mm-12-2221.0

$124.12*

Prices include VAT, plus delivery charges

Available now, delivery time: Lieferzeit 1-2 Werktage

Stk

Lagerbestand: 389

Product number: 12.2221.0

EAN: 4251412940774

Länge: 237 mm

Gewicht: 1.69 kg

20,000 items in stock

CAD data available after login

Over 200,000 satisfied customers

Worldwide delivery

Product information "Rubber seal set | for glass: 16.76–17.52 mm | Length: 3000 mm"

Rubber set | for glass: 16.76–17.52 mm | Length: 3000 mm

[ Specific details ] Length: 3000 mm; for glass thickness: 16.76–17.52 mm; 10x rubber spacers; 12x wedges (colour = yellow)

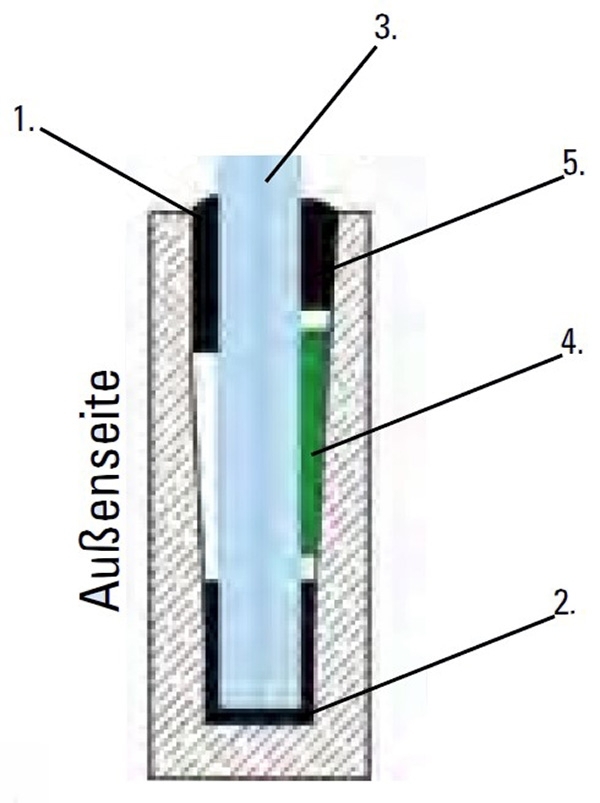

[ Application ] Place the rubber spacers on the profile to the appropriate length or according to the number of panes. Then position the pane (as you do so, the rubber spacers are automatically pressed into the aluminium profile in a ‘U’ shape) and insert the thin end seal into the profile, securing it by pressing it against the pane. Now align the pane using the wedges and, to finish, insert the thicker end seals between the glass and the profile.

Form:	Gummiset
Länge:	3000 mm

Accessories

Alu-Profil - MASSIV2 - Laenge- 6000 mm - seitliche Montage - Aluminium-12-2200.6

Stk

12.2200.6

Aluminium profile | MASSIV2 | Length: 6000 mm | Side mounting | Aluminium

Aluminium profile | MASSIV2 | Length: 6000 mm | Side mounting | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–21.52 mm; Length: 6000 mm; for rail load: 0.5–3.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ Further specific details ] Class 20 DIN 17611 for outdoor use; profile weight per running metre: 11.21 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

$2,165.82*

Alu-Profil - MASSIV2 - Laenge- 3000 mm - seitliche Montage - Aluminium-12-2201.6

Stk

12.2201.6

Aluminium profile | MASSIV2 | Length: 3000 mm | Side mounting | Aluminium

Aluminium profile | MASSIV2 | Length: 3000 mm | Side mounting | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–21.52 mm; Length: 3000 mm; for rail load: 0.5–3.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for external use; profile weight per running metre: 11.21 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

$1,112.56*

Alu-Profil - MASSIV2 - Laenge- 6000 mm - aufgesetzte Montage - Aluminium-12-2204.6

Stk

12.2204.6

Aluminium profile | MASSIV2 | Length: 6000 mm | Surface-mounted | Aluminium

Aluminium profile | MASSIV2 | Length: 6000 mm | Surface-mounted installation | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–21.52 mm; Length: 6000 mm; for rail load: 0.5–3.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for external use; profile weight per running metre: 7.08 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

$1,408.42*

Alu-Profil - MASSIV2 - Laenge- 3000 mm - aufgesetzte Montage - Aluminium-12-2205.6

Stk

12.2205.6

Aluminium profile | MASSIV2 | Length: 3000 mm | Surface-mounted | Aluminium

Aluminium profile | MASSIV2 | Length: 3000 mm | Surface-mounted installation | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–21.52 mm; Length: 3000 mm; for rail load: 0.5–3.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for external use; profile weight per running metre: 7.08 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

$760.70*

Alu-Profil - KOMPAKT - Laenge- 3000 mm - seitliche Montage - Aluminium-12-2212.6

Stk

12.2212.6

Aluminium profile | KOMPAKT | Length: 3000 mm | Side mounting | Aluminium

Aluminium profile | KOMPAKT | Length: 3000 mm | Side mounting | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–17.52 mm; Length: 3000 mm; for rail load: 0.5–1.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ Further specific details ] Class 20 DIN 17611 for outdoor use; profile weight per running metre: 4.88 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

$596.36*

Alu-Profil - KOMPAKT - Laenge- 6000 mm - seitliche Montage - Aluminium-12-2213.6

Stk

12.2213.6

Aluminium profile | KOMPAKT | Length: 6000 mm | Side mounting | Aluminium

Aluminium profile | KOMPAKT | Length: 6000 mm | Side mounting | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–17.52 mm; Length: 6000 mm; for rail load: 0.5–1.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for outdoor use; profile weight per running metre: 4.88 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

$1,053.36*

Alu-Profil - MASSIV - Laenge- 3000 mm - seitliche Montage - Aluminium-12-2208.6

Stk

12.2208.6

Aluminium profile | SOLID | Length: 3000 mm | Side mounting | Aluminium

Aluminium profile | SOLID | Length: 3000 mm | Side mounting | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–21.52 mm; Length: 3000 mm; for rail load: 0.5–3.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for external use; profile weight per running metre: 7.02 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

$822.14*

Alu-Profil - MASSIV - Laenge- 6000 mm - seitliche Montage - Aluminium-12-2209.6

Stk

12.2209.6

Aluminium profile | SOLID | Length: 6000 mm | Side mounting | Aluminium

Aluminium profile | SOLID | Length: 6000 mm | Side mounting | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–21.52 mm; Length: 6000 mm; for rail load: 0.5–3.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ Further specific details ] Class 20 DIN 17611 for outdoor use; profile weight per running metre: 7.02 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

$1,526.74*

Alu-Profil - KOMPAKT - Laenge- 3000 mm - aufgesetzte Montage - Aluminium-12-2215.6

Stk

12.2215.6

Aluminium profile | KOMPAKT | Length: 3000 mm | Surface-mounted | Aluminium

Aluminium profile | KOMPAKT | Length: 3000 mm | Surface-mounted | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–17.52 mm; Length: 3000 mm; for rail load: 0.5–1.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for external use; profile weight per metre: 6.55 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

$796.40*

Alu-Profil - KOMPAKT - Laenge- 6000 mm - aufgesetzte Montage - Aluminium-12-2214.6

Stk

12.2214.6

Aluminium profile | KOMPAKT | Length: 6000 mm | Surface-mounted | Aluminium

Aluminium profile | KOMPAKT | Length: 6000 mm | Surface-mounted | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–17.52 mm; Length: 6000 mm; for rail load: 0.5–1.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for external use; profile weight per running metre: 6.55 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

$1,408.42*

Alu-Profil - MASSIV - Laenge- 3000 mm - aufgesetzte Montage - Aluminium-12-2206.6

Stk

12.2206.6

Aluminium profile | SOLID | Length: 3000 mm | Surface-mounted | Aluminium

Aluminium profile | SOLID | Length: 3000 mm | Surface-mounted | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–21.52 mm; Length: 3000 mm; for rail load: 0.5–3.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for outdoor use; profile weight per running metre: 9.14 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

$993.04*

Alu-Profil - MASSIV - Laenge- 6000 mm - aufgesetzte Montage - Aluminium-12-2207.6

Stk

12.2207.6

Aluminium profile | SOLID | Length: 6000 mm | Surface-mounted | Aluminium

Aluminium profile | SOLID | Length: 6000 mm | Surface-mounted | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–21.52 mm; Length: 6000 mm; for rail load: 0.5–3.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for external use; profile weight per running metre: 9.14 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

$1,787.12*
