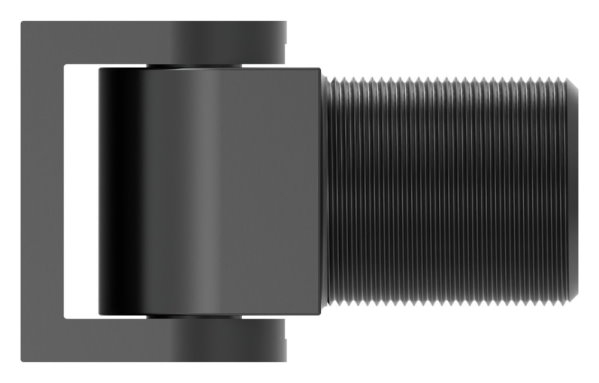

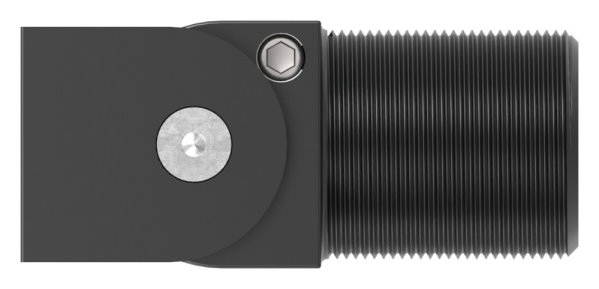

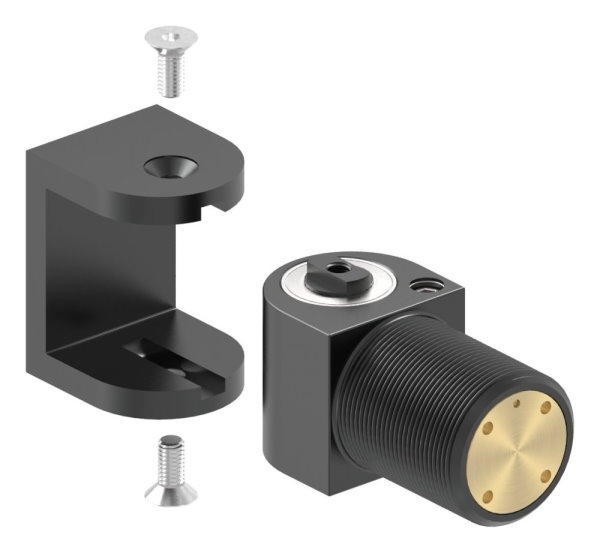

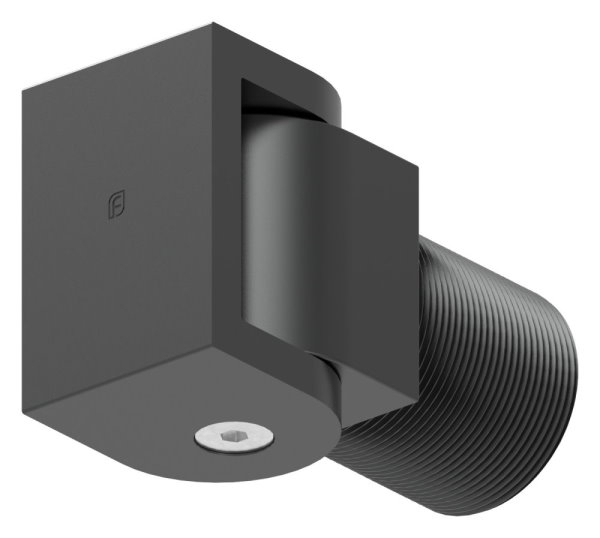

Aluminium hinge without self-closing function, suitable for welding[Description] Without self-closing function, conventional gate hinge [Technical details] With axial thrust bearing, opening angle 180° [Notes] Weld-on version: The weld-on bracket must be protected against corrosion afterwards! Welding is only possible after galvanising! Self-closing gate hinges – Ariete series for pedestrian gates The Ariete series offers high-quality, hydraulically assisted gate hinges for self-closing pedestrian gates. These hinges enable automatic, gentle and safe closing – without any electricity or external control. Suitable for gate leaves up to 120 kg and up to 1000 mm wide, available in two versions: S version: With aluminium bracket for screw mounting W version: With iron bracket for welding Mounting plates for fixing to the gate are available separately. Advantages at a glance: Hydraulic self-closing function Adjustable closing speed (models 57 & 108) Additional end stop adjustable (Model 108) Weather-resistant & durable Quiet, controlled closing action Model overview – Ariete gate hinges Model Function Special features Version without hold-open function Ariete SM Mechanical, without hydraulics Can be combined with Ariete 57/108 – Ariete 57 Hydraulic, with adjustable closing speed Smooth, automatic closing 57 SF – without hold-open function Ariete 108 Hydraulic, with two adjustment functions (speed & final stroke) Ideal for gates with an electric lock 108 SF – without hold-open function Technical data: Max. gate weight: 120 kg Max. gate width: 1000 mm Mounting types: Screws (S) or welding (W) Material: Aluminium or steel, corrosion-protected Applications: Garden and courtyard gates Private homes and apartment blocks Commercial access areas Gates with access control or electric locking Thanks to hydraulic self-closing without an external power supply, Ariete gate hinges offer a secure, durable and convenient gate experience. These high-quality hinges prove their worth in practice, particularly at frequently used entrances or in security-related applications. Tip: For optimum performance, we recommend combining a hydraulic hinge (Ariete 57 or 108) with a mechanical Ariete SM as the load-bearing hinge.

Rectangular steel mounting plate for welding to round tubing, nominal diameter 4"-5". Dimensions: 70 x 120 mm. Suitable for the following models: SM-W / 57-W / 57SF-W / 108-W / 108SF-W Note: Ensure the mounting plate is protected against corrosion after installation!!

Rectangular steel mounting plate for welding. Dimensions: 70 x 120 mm. Suitable for the following belts: SM-W / 57-W / 57SF-W / 108-W / 108SF-W Note: Ensure the mounting plate is protected against corrosion after installation!!

Oval aluminium mounting plate for screw fixing. Dimensions: 65 x 140 mm. 2 holes, diameter 6.5 mm. Suitable for the following hinges: SM-S / 57-S / 57SF-S / 108-S / 108SF-S

Rectangular aluminium mounting plate for screw fixing. Dimensions: 65 x 100 mm. 4 holes, diameter 6.5 mm Suitable for the following hinges: SM-S / 57-S / 57SF-S / 108-S / 108SF-S

Rectangular aluminium mounting plate for screw fixing. Dimensions: 100 x 100 mm. 4 holes, diameter 6.5 mm Suitable for the following hinges: SM-S / 57-S / 57SF-S / 108-S / 108SF-S

Rectangular aluminium mounting plate for screw fixing. Dimensions: 65 x 100 mm. 4 holes, diameter 6.5 mm For use only with belts: 57-S / 57SF-S

Rectangular aluminium mounting plate for screw fixing. Dimensions: 45 x 100 mm. 2 holes, diameter 6.5 mm Suitable for all screw-fixing hinges.
