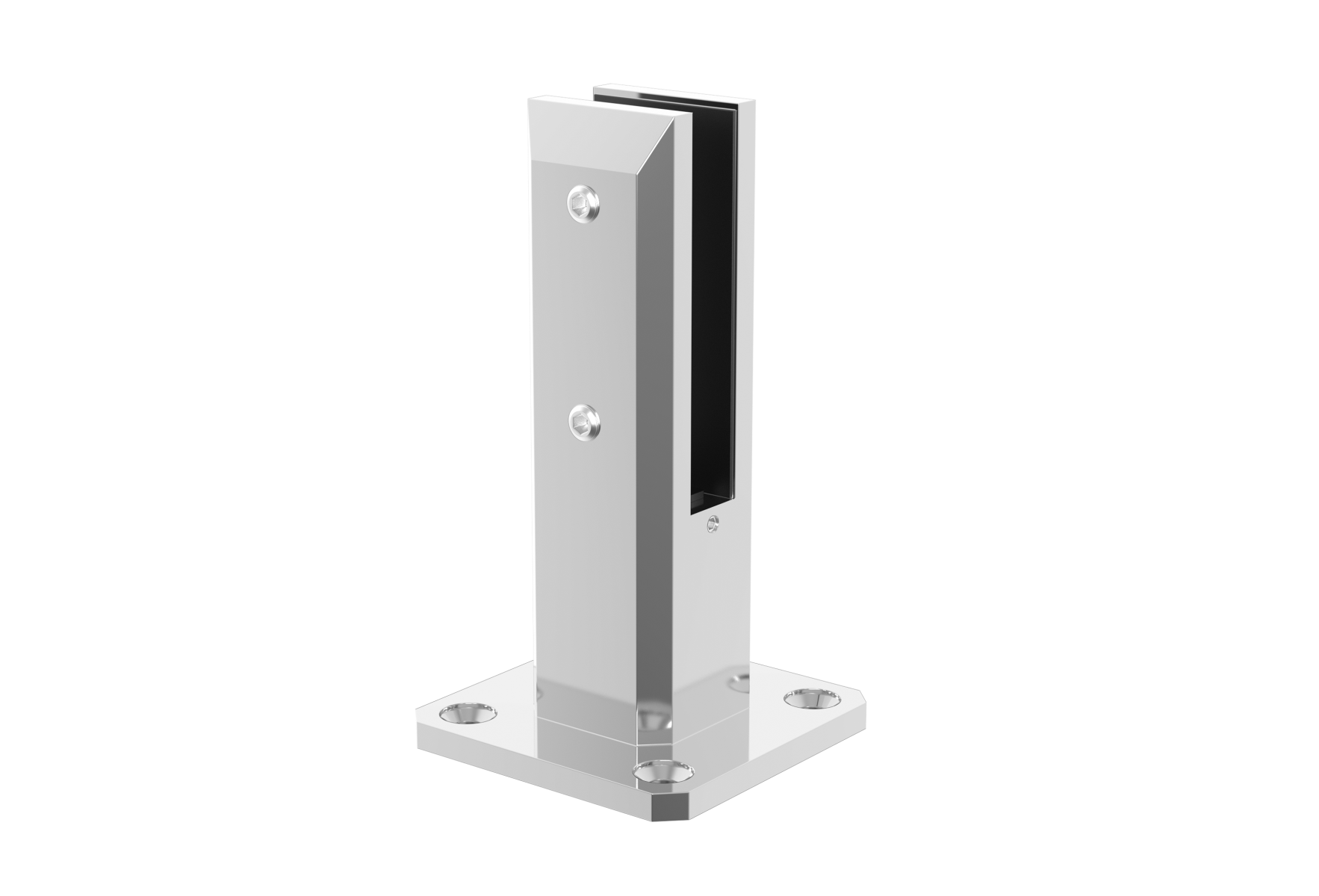

Standing glass holder in AISI 316 stainless steel for glass 12–17.52 mm thick, polished
$150.08*
Available now, delivery time: Lieferzeit 1-2 Werktage
Product information "Standing glass holder in AISI 316 stainless steel for glass 12–17.52 mm thick, polished"
The standing glass holder, also known as a spigot holder, is an innovative solution for securing glass panes safely and aesthetically without the need to drill holes in the glass. This component enables a modern, frameless look whilst ensuring maximum stability and safety in your structure. The minimalist and unobtrusive design blends seamlessly into any environment and emphasises the transparency of the glass.
Technical details and material
- Material: High-quality AISI 316 (V4A) stainless steel
- Surface finish: Mirror-polished for an elegant appearance and increased corrosion resistance
- Suitable for glass thicknesses: From 12 mm to 17.52 mm
- Mounting: Top mounting via flange holes (recess for M8 screws)
- Load capacity (G/h): 0.5 kN
- Glass fixing: Carried out using reliable crimp connections
Installation instructions
The glass holder is anchored using the holes provided on the flange. Please note that the recess on the flange is designed for M8 screws (not for M10). For optimum fastening, we recommend using two A4-DIN 913 M10x16 screws per pin, particularly for glass thicknesses of 12 mm. For an even more secure fixing of the glass, we recommend the additional use of glass clamps for pins.
Advantages and applications
This spigot holder is the ideal choice for projects where clean lines and maximum transparency are required. It is ideal for:
- Modern glass railings and balustrades
- Elegant glass partitions for indoor and outdoor use
- Sophisticated architectural applications
Benefit from easy installation, exceptional durability thanks to the use of AISI 316 stainless steel, and a look that takes your glass projects to a whole new level.
