V2A glass clamp for 48.3 mm diameter tubing, for 8–12.76 mm glass, set of 4, polished
$97.10*
Available now, delivery time: Lieferzeit 10-13 Werktage
Product information "V2A glass clamp for 48.3 mm diameter tubing, for 8–12.76 mm glass, set of 4, polished"
Set of 4 glass clamps made from V2A stainless steel
This set contains four robust Model 26 glass clamps, manufactured from high-quality V2A stainless steel (AISI 304). Thanks to their polished finish, the clamps have a modern, satin-matt appearance that blends perfectly into contemporary building projects. The clamps are specifically designed for mounting on round balusters with a diameter of 48.3 mm and are ideal for constructing glass balustrades in both indoor and outdoor settings, such as on balconies, terraces or staircases.
Technical details and compatibility
The glass clamps offer a flexible solution for various glass thicknesses and ensure a secure hold thanks to a stable clamping connection. For increased safety, particularly with side mounting, the clamp can be supplemented with a locking pin or a locking plate.
- Material: V2A stainless steel (AISI 304)
- Surface: Polished
- Connection: For round tube Ø 48.3 mm
- Suitable glass thicknesses: 8 mm, 8.76 mm, 10 mm, 10.76 mm, 12 mm, 12.76 mm
- Fastening: Clamp connection

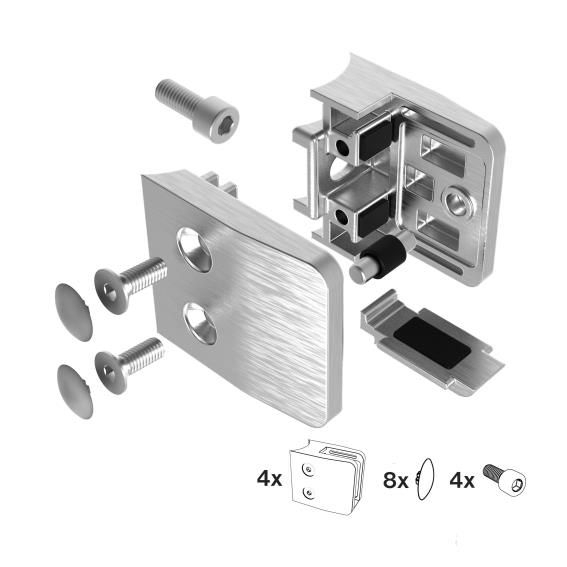

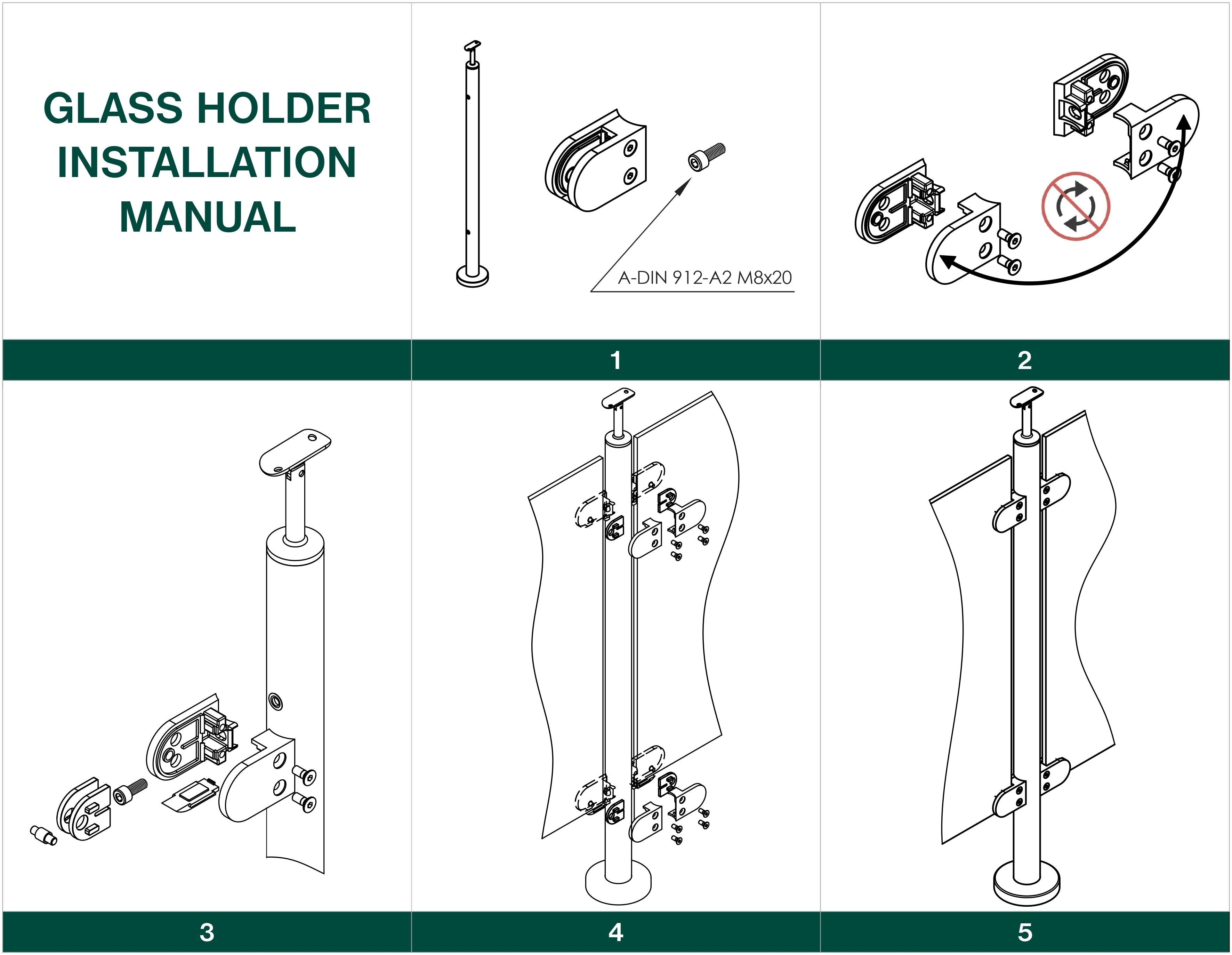

Contents and installation instructions
The set is supplied ready for installation and contains all the necessary screws for fixing the holders. Please note that the rubber seals suitable for your glass thickness are not included and must be ordered separately. Two seals are required per glass holder.
- 4 x glass holders (Model 26)
- 8 x A2 DIN7991 M6x16 screw
- 8 x PVC covers for screws
- 4 x A2 DIN 7380 M8x20 screw
| Höhe: | 52 mm |
|---|---|
| Länge: | 52 mm |
| Werkstoff: | V2A |
| Ø Für Rohr | Ø Außendurchmesser | Ø Anschluss: | 48,3 mm |
| Breite: | 32 mm |
