Wedge | for aluminium profile | for glass 16.76–17.52 mm

Keil - fuer Aluprofil - fuer Glas 16-76-17-52 mm-12-3087.6

$6.12*

Prices include VAT, plus delivery charges

Available now, delivery time: Lieferzeit 1-2 Werktage

Stk

Lagerbestand: 1315

Product number: 12.3087.6

EAN: 4251412962431

Länge: 77 mm

Gewicht: 0.03 kg

20,000 items in stock

CAD data available after login

Over 200,000 satisfied customers

Worldwide delivery

Product information "Wedge | for aluminium profile | for glass 16.76–17.52 mm"

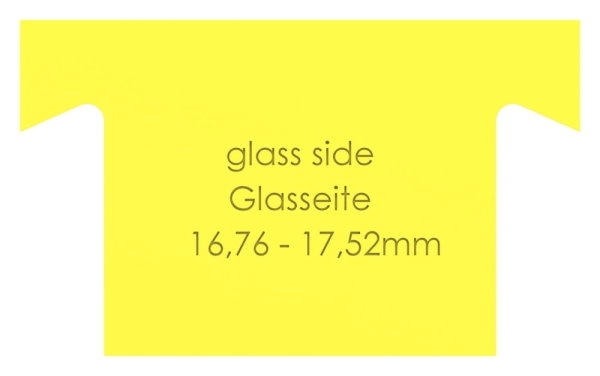

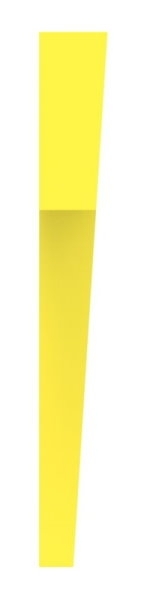

Wedge | for aluminium profile | for glass 16.76–17.52 mm

[ Specific details ] for glass: 16.76–17.52 mm; Colour: yellow
[ Further specific details ] for rubber set 12.2221.0

Form:	Keil

Accessories

Alu-Profil - MASSIV2 - Laenge- 6000 mm - seitliche Montage - Aluminium-12-2200.6

Stk

12.2200.6

Aluminium profile | MASSIV2 | Length: 6000 mm | Side mounting | Aluminium

Aluminium profile | MASSIV2 | Length: 6000 mm | Side mounting | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–21.52 mm; Length: 6000 mm; for rail load: 0.5–3.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ Further specific details ] Class 20 DIN 17611 for outdoor use; profile weight per running metre: 11.21 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

$2,165.82*

Alu-Profil - MASSIV2 - Laenge- 3000 mm - seitliche Montage - Aluminium-12-2201.6

Stk

12.2201.6

Aluminium profile | MASSIV2 | Length: 3000 mm | Side mounting | Aluminium

Aluminium profile | MASSIV2 | Length: 3000 mm | Side mounting | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–21.52 mm; Length: 3000 mm; for rail load: 0.5–3.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for external use; profile weight per running metre: 11.21 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

$1,112.56*

Alu-Profil - MASSIV2 - Laenge- 6000 mm - aufgesetzte Montage - Aluminium-12-2204.6

Stk

12.2204.6

Aluminium profile | MASSIV2 | Length: 6000 mm | Surface-mounted | Aluminium

Aluminium profile | MASSIV2 | Length: 6000 mm | Surface-mounted installation | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–21.52 mm; Length: 6000 mm; for rail load: 0.5–3.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for external use; profile weight per running metre: 7.08 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

$1,408.42*

Alu-Profil - MASSIV2 - Laenge- 3000 mm - aufgesetzte Montage - Aluminium-12-2205.6

Stk

12.2205.6

Aluminium profile | MASSIV2 | Length: 3000 mm | Surface-mounted | Aluminium

Aluminium profile | MASSIV2 | Length: 3000 mm | Surface-mounted installation | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–21.52 mm; Length: 3000 mm; for rail load: 0.5–3.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for external use; profile weight per running metre: 7.08 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

$760.70*

Alu-Profil - KOMPAKT - Laenge- 6000 mm - seitliche Montage - Aluminium-12-2213.6

Stk

12.2213.6

Aluminium profile | KOMPAKT | Length: 6000 mm | Side mounting | Aluminium

Aluminium profile | KOMPAKT | Length: 6000 mm | Side mounting | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–17.52 mm; Length: 6000 mm; for rail load: 0.5–1.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for outdoor use; profile weight per running metre: 4.88 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

$1,053.36*

Alu-Profil - KOMPAKT - Laenge- 3000 mm - seitliche Montage - Aluminium-12-2212.6

Stk

12.2212.6

Aluminium profile | KOMPAKT | Length: 3000 mm | Side mounting | Aluminium

Aluminium profile | KOMPAKT | Length: 3000 mm | Side mounting | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–17.52 mm; Length: 3000 mm; for rail load: 0.5–1.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ Further specific details ] Class 20 DIN 17611 for outdoor use; profile weight per running metre: 4.88 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

$596.36*

Alu-Profil - KOMPAKT - Laenge- 6000 mm - aufgesetzte Montage - Aluminium-12-2214.6

Stk

12.2214.6

Aluminium profile | KOMPAKT | Length: 6000 mm | Surface-mounted | Aluminium

Aluminium profile | KOMPAKT | Length: 6000 mm | Surface-mounted | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–17.52 mm; Length: 6000 mm; for rail load: 0.5–1.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for external use; profile weight per running metre: 6.55 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

$1,408.42*

Alu-Profil - KOMPAKT - Laenge- 3000 mm - aufgesetzte Montage - Aluminium-12-2215.6

Stk

12.2215.6

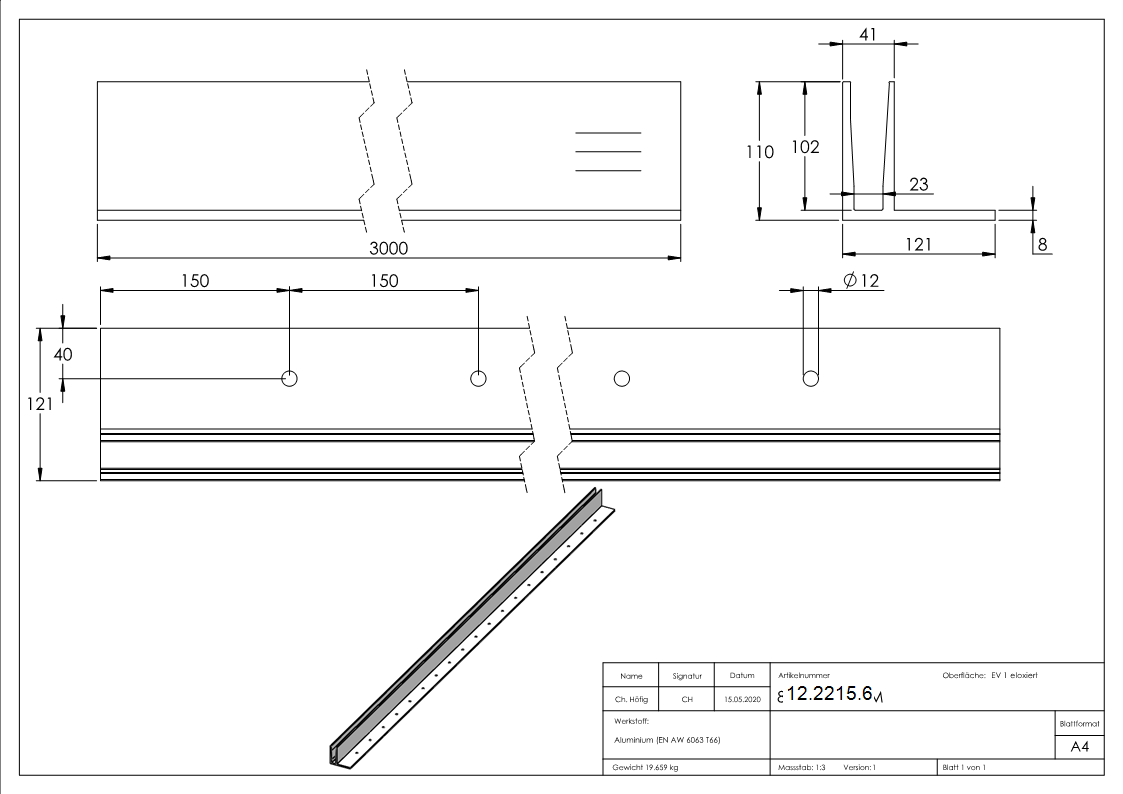

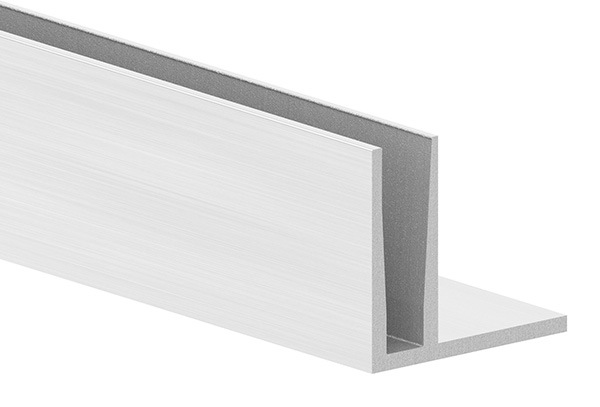

Aluminium profile | KOMPAKT | Length: 3000 mm | Surface-mounted | Aluminium

Aluminium profile | KOMPAKT | Length: 3000 mm | Surface-mounted | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–17.52 mm; Length: 3000 mm; for rail load: 0.5–1.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for external use; profile weight per metre: 6.55 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

$796.40*

Unterleggummi 100x100x3mm- fuer Gummiset 80501-GU-88-1180501-GU.UG

Stk

88.1180501.GU.UG

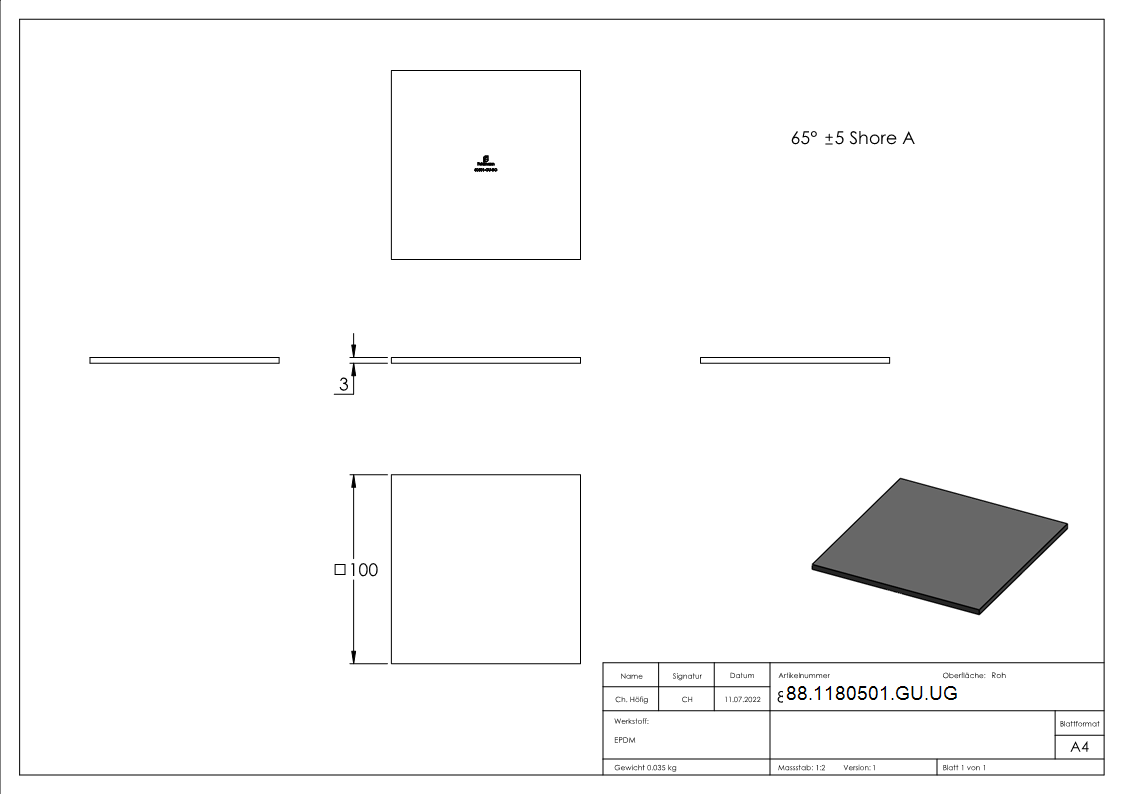

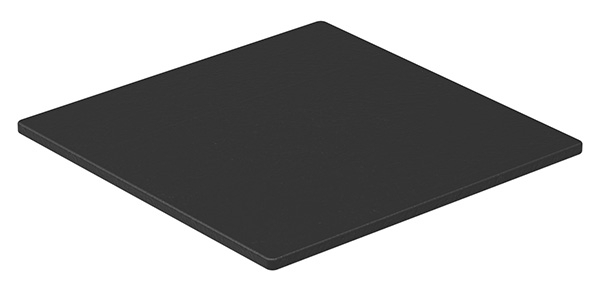

Rubber spacer 100x100x3mm, for rubber set 80501-GU

Rubber spacer 100x100x3mm EPDM, 65±5 Shore A, black, for rubber set 80501-GU

Available, : Lieferzeit 1-2 Werktage

$4.24*
