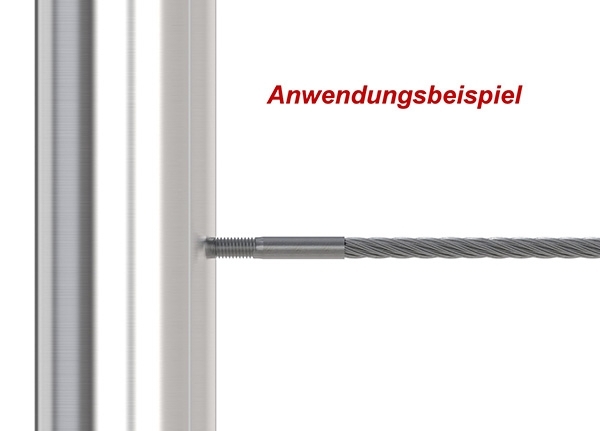

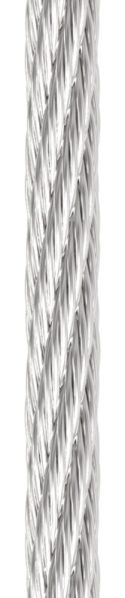

7x7 stainless steel cable | flexible | Ø 3 mm | Price per metre | V4A

Ø-Seil: Ø 3 mm

FeNau Ltd

$1.86*

Prices exclude VAT and are subject to delivery charges

Available now, delivery time: Lieferzeit 5-10 Werktage

Ø-Seil

Ø 2 mm

Ø 3 mm

Ø 4 mm

Ø 5 mm

Ø 6 mm

Ø 8 mm

Stock: 646

Product number: 11.2799.1

EAN: 4251412933684

Weight: 0.05 kg

20,000 items in stock

CAD data available after login

Over 200,000 satisfied customers

Worldwide delivery

Product information "7x7 stainless steel cable | flexible | Ø 3 mm | Price per metre | V4A"

7x7 stainless steel cable | flexible | Ø 3 mm | Price per metre | V4A

[ Technical details ] Manufactured from stainless steel 1.
4401/04/V4A/AISI 316 [ Specific details ] Ø 3 mm; cleaned and pre-tensioned; Nominal tensile strength 1570 N/mm²
[ Further specific details ] Ø 3 mm wire: breaking strength 5.07 kN
[ Note on the ordering process ] Price per metre; simply order the number of metres you require

Durchmesser:	Ø 3 mm
Werkstoff:	V4A

Product safety (GPSR)

Manufacturer / responsible person in the EU: FeNau GmbH, Veit-Stoß-Str. 20, 90579 Langenzenn, Germany · info@fenau.eu · +49 911 97917230

Safety information: metal products may have sharp edges – wear protective gloves. Observe permissible loads and installation instructions; secure components properly before use.

All product safety information → · Your legal guarantee rights →

Accessories

11.2804.4

Threaded terminal for self-assembly | For cable: Ø 3 mm | with external thread | V2A

Threaded terminal for self-assembly | For cable: Ø 3 mm | with external thread | V2A [ Technical details ] Made from stainless steel 1.4301/V2A/AISI 304[ Specific details ] Suitable for a rope with a diameter of 3 mm; with external thread; for self-assembly; M5 thread [ Further specific details ] Dimensions of threaded terminal for Ø 3 mm rope: A: M5; B: 60 mm; C: 40 mm; D: Ø 12 mm; E: 15 mm; F: 45 mm [ Application ] Insert the cable into the terminal and secure it with the included Allen clamp screw

Available, : Lieferzeit 5-10 Werktage

$8.56*

Gewindeterminal zur Selbstmontage - Fuer Seil Ø 3 mm - mit Innengewinde - V2A-11-2809.4

Stk

11.2809.4

Threaded terminal for self-assembly | For 3 mm cable | with internal thread | V2A

Threaded terminal for self-assembly | For cables with a diameter of 3 mm to 8 mm | with internal thread | V2A [ Technical details ] Made from stainless steel 1.4301/V2A/AISI 304[ Specific details ] Suitable for a cable with a diameter of 3 mm to 8 mm; with internal thread; for self-assembly; threads from M5 to M8 [ Application ] Insert the cable into the terminal and secure it with the included Allen clamp screw [ Further specific details ] Dimensions of threaded terminal for Ø 3 mm rope: A: M5; B: 60 mm; C: 40 mm; D: Ø 12 mm; E: 15 mm Dimensions of threaded terminal for Ø 4 mm rope: A: M5; B: 60 mm; C: 40 mm; D: Ø 12 mm; E: 15 mm Dimensions of threaded terminal for Ø 5 mm cable: A: M5; B: 70 mm; C: 40 mm; D: Ø 14 mm; E: 20 mm Dimensions of threaded terminal for Ø 6 mm cable: A: M6; B: 70 mm; C: 40 mm; D: Ø 14 mm; E: 20 mm Dimensions of threaded terminal for Ø 8 mm rope: A: M8; B: 80 mm; C: 60 mm; D: Ø 16 mm; E: 15 mm

Available, : Lieferzeit 5-10 Werktage

$8.30*

11.2960.4

Threaded terminal with external thread | Right-hand thread | For cable Ø 3 mm | V2A

Threaded terminal with external thread | Right-hand thread | For cable with a diameter of 3 mm | V2A [ Technical details ] Made from stainless steel 1.4301/V2A/AISI 304[ Specific details ] Suitable for a cable with a diameter of 3 mm; for self-crimping; with M5 thread [ Further specific details ] Dimensions of threaded terminal for Ø 3 mm cable: A: M5; B: 70 mm; C: 30 mm; D: 6 mm; E: 35 mm [ Application ] Insert the rope into the terminal and crimp using a suitable tool

Available, : Lieferzeit 5-10 Werktage

$3.56*

11.2965.4

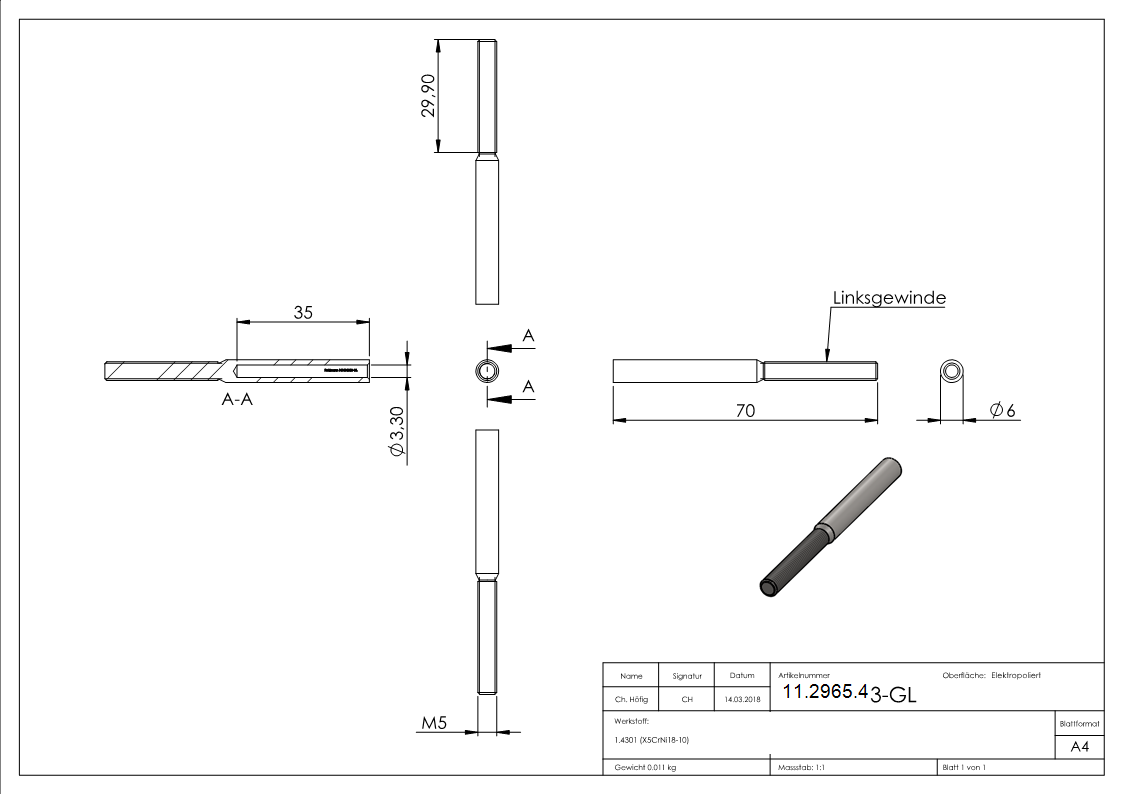

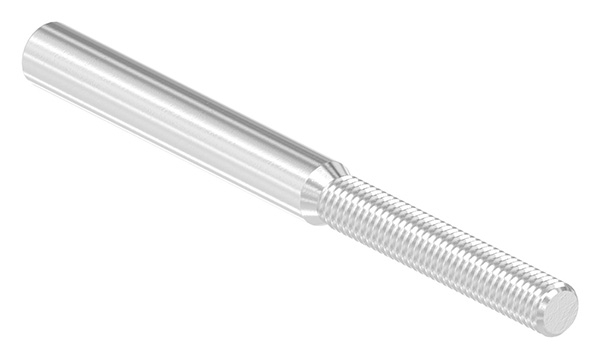

Threaded terminal with external thread | Left-hand thread | For cable Ø 3 mm | V2A

Threaded terminal with external thread | Left-hand thread | For cable with a diameter of 3 mm | V2A [ Technical details ] Made from stainless steel 1.4301/V2A/AISI 304[ Specific details ] Suitable for a cable with a diameter of 3 mm; for self-crimping; with M5 thread [ Further specific details ] Dimensions of threaded terminal for Ø 3 mm cable: A: M5; B: 70 mm; C: 30 mm; D: 6 mm; E: 35 mm [ Application ] Insert the rope into the terminal and crimp using a suitable tool

Available, : Lieferzeit 5-10 Werktage

$3.56*

11.2970.4

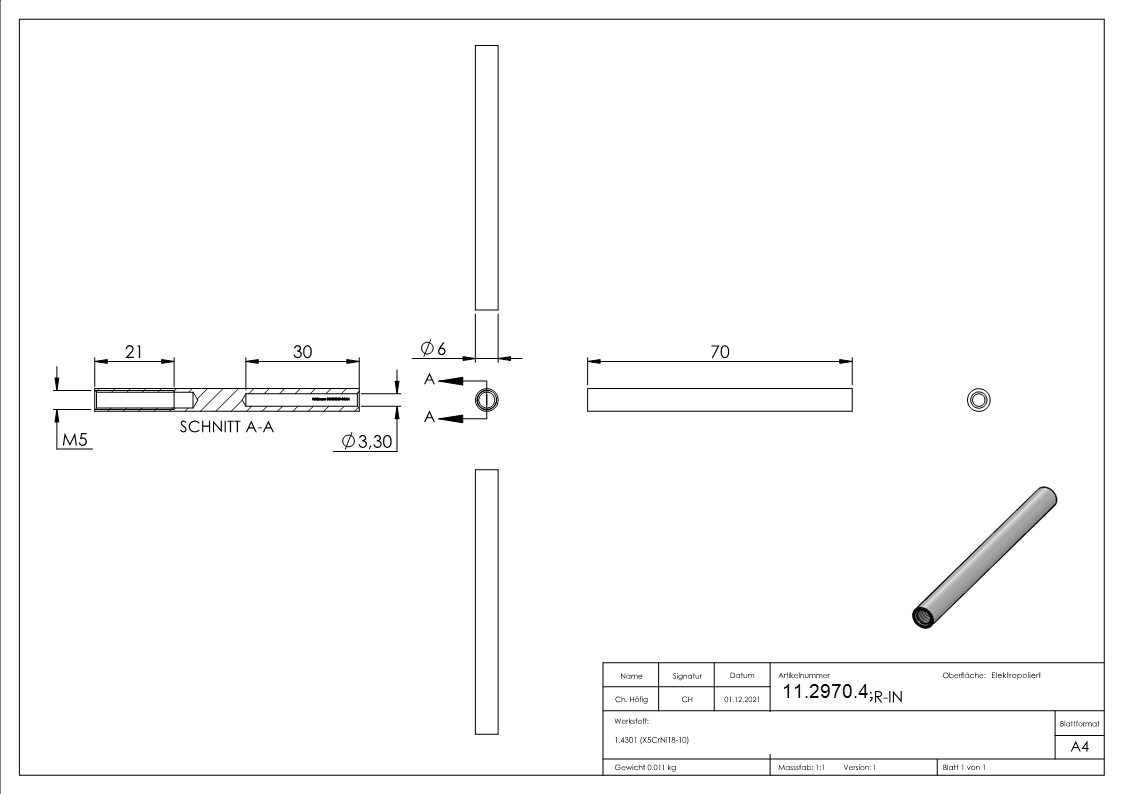

Threaded terminal with internal thread | Right-hand thread | For cable Ø 3 mm | V2A

Threaded terminal with internal thread | Right-hand thread | For cable with a diameter of 3 mm | V2A [ Technical details ] Made from stainless steel 1.4301/V2A/AISI 304[ Specific details ] Suitable for a cable with a diameter of 3 mm; for self-crimping; with M5 thread [ Further specific details ] Dimensions of threaded terminal for Ø 3 mm cable: A: M5; B: 70 mm; C: 21 mm; D: 6 mm; E: 35 mm [ Application ] Insert the rope into the terminal and crimp using a suitable tool

Available, : Lieferzeit 5-10 Werktage

$3.74*

11.2975.4

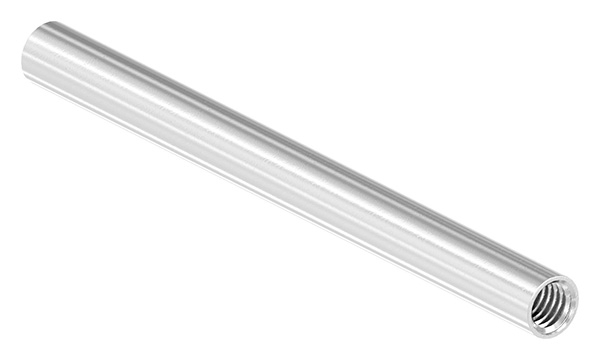

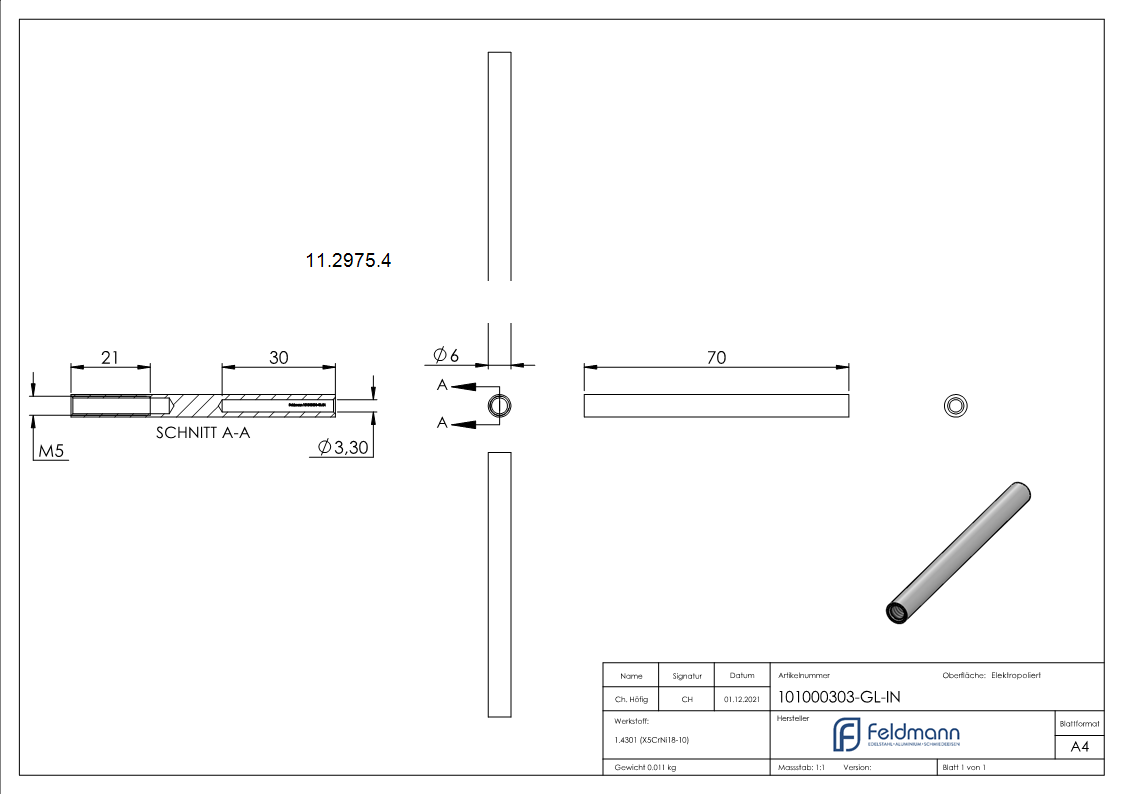

Threaded terminal with internal thread | Left-hand thread | For cable Ø 3 mm | V2A

Threaded terminal with internal thread | Left-hand thread | For cable with a diameter of 3 mm | V2A [ Technical details ] Made from stainless steel 1.4301/V2A/AISI 304[ Specific details ] Suitable for a rope with a diameter of 3 mm; for self-crimping; with M5 thread [ Further specific details ] Dimensions of threaded terminal for Ø 3 mm rope: A: M5; B: 70 mm; C: 21 mm; D: 6 mm; E: 35 mm [ Application ] Insert the rope into the terminal and crimp using a suitable tool

Available, : Lieferzeit 5-10 Werktage

$3.74*

11.2985.1

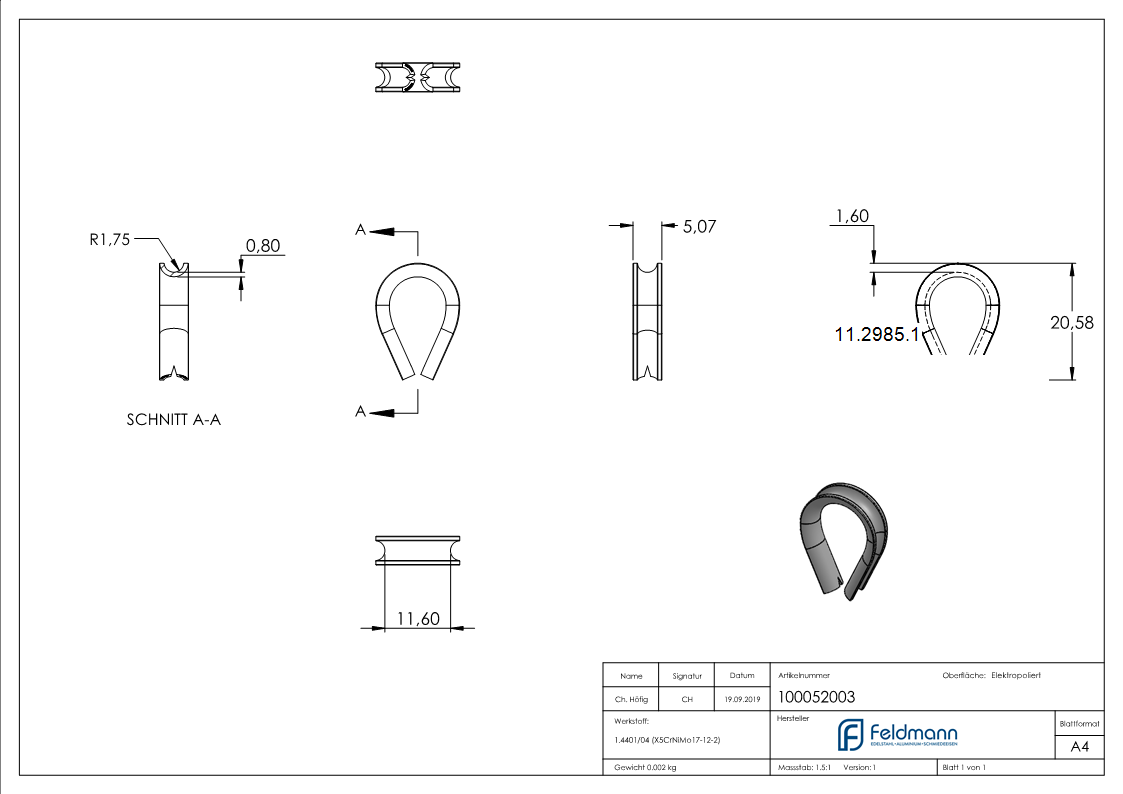

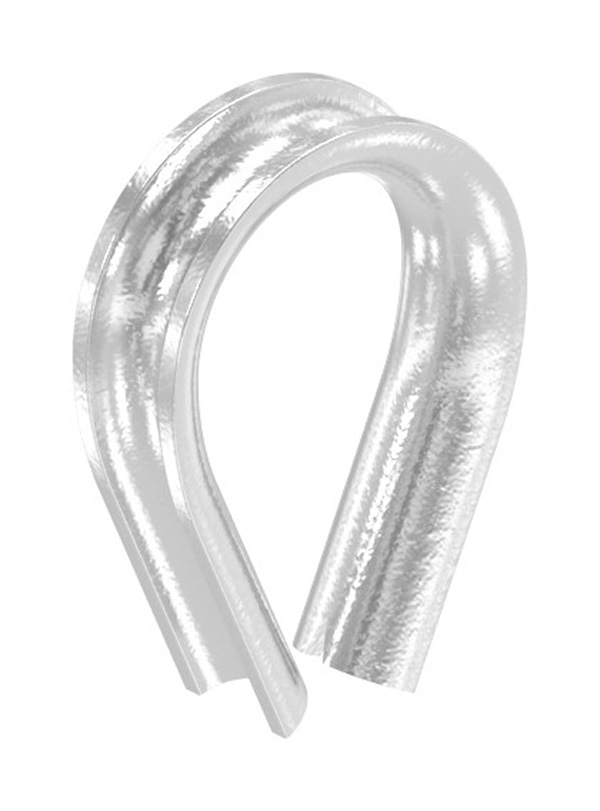

Thimble | for rope Ø: 3 mm | V4A

Thimble | for rope Ø 3 mm | V4A[ Technical details ] made of stainless steel 1.4401/04/V4A/AISI 316[ Specific details ] A: 12 mm; B: 19 mm; C: 6 mm; D: 16 mm

Variants from $0.98*

$1.30*

11.2920.12

Simplex clamp | for rope Ø 3 mm | V4A

Simplex clamp | for rope Ø 3 mm | V4A[ Technical details ] made of stainless steel 1.4401/04/V4A/AISI 316[ specific details ] A: 9 mm; B: 17 mm; C: 6.5 mm

Available, : Lieferzeit 5-10 Werktage

$1.64*

11.2929.1

Duplex clamp | for cable Ø 3 mm | V4A

Duplex clamp | for cable Ø 3 mm | V4A[ Technical details ] made of stainless steel 1.4401/04/V4A/AISI 316[ Specific details ] A: 16 mm; B: 35 mm; C: 6 mm

Variants from $2.84*

Available, : Lieferzeit 5-10 Werktage

$3.08*

Stk

11.2959.4

rope clamp

Cable pliers for cutting steel cables up to 20 mm

Available, : Lieferzeit 5-10 Werktage

$103.24*

Stk

88.1160620.240

60 kN wire rope press

60 kN wire rope press, for crimping threaded sleeves onto stainless steel cables, diameters 3 mm, 4 mm, 5 mm, 6 mm, 8 mm

Available, : Lieferzeit 5-10 Werktage

$2,079.90*
