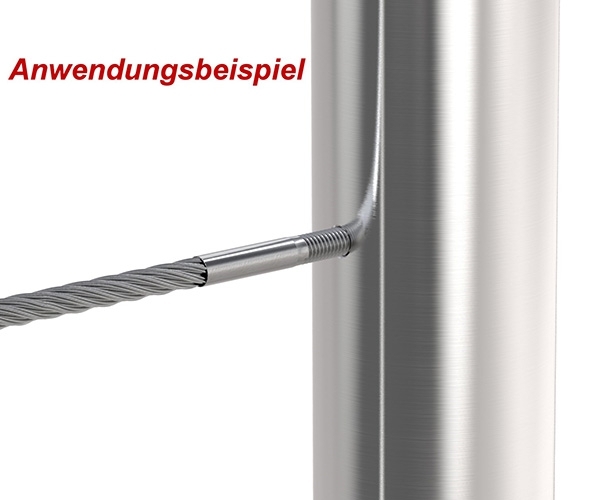

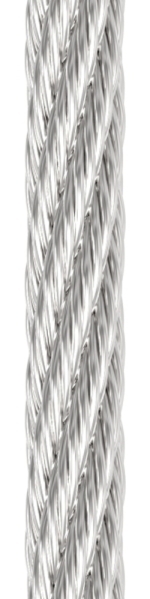

7x7 stainless steel cable | flexible | Ø 4 mm | Price per metre | V4A

Ø-Seil: Ø 4 mm

$4.12*

Prices include VAT, plus delivery charges

Available now, delivery time: Lieferzeit 1-2 Werktage

Ø-Seil

Ø 2 mm

Ø 3 mm

Ø 4 mm

Ø 5 mm

Ø 6 mm

Ø 8 mm

Lagerbestand: 4989

Product number: 11.2800.1

EAN: 4251412911736

Gewicht: 0.06 kg

20,000 items in stock

CAD data available after login

Over 200,000 satisfied customers

Worldwide delivery

Product information "7x7 stainless steel cable | flexible | Ø 4 mm | Price per metre | V4A"

7x7 stainless steel cable | flexible | Ø 4 mm | Price per metre | V4A

[ Technical details ] Manufactured from stainless steel 1.
4401/04/V4A/AISI 316 [ Specific details ] Ø 4 mm; cleaned and pre-tensioned; Nominal tensile strength 1570 N/mm²
[ Further specific details ] Ø 4 mm wire: Breaking force 9.10 kN
[ Note on the ordering process ] Price per metre; simply order the number of metres you require

Durchmesser:	4 mm
Länge:	Wählbar
Werkstoff:	V4A (AISI316) 1.4401/04

Accessories

11.2805.4

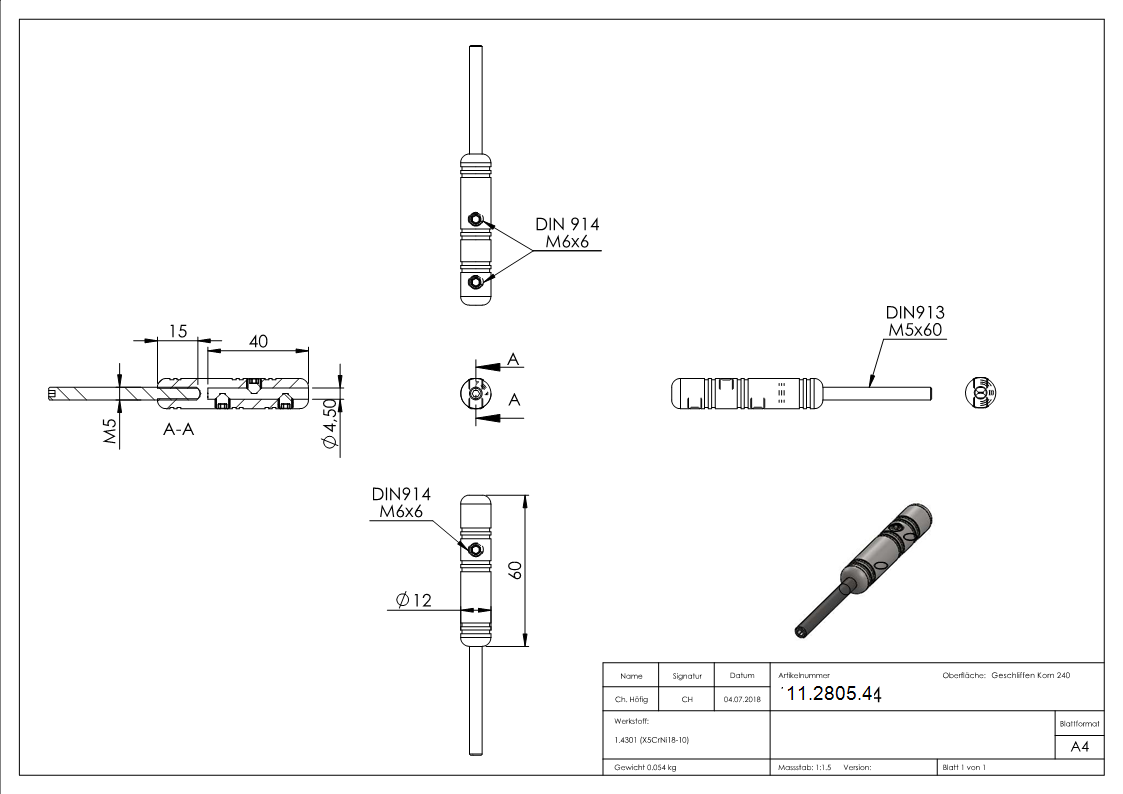

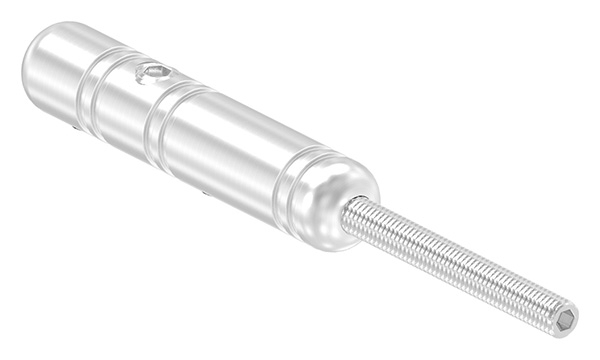

Threaded terminal for self-assembly | For cable: Ø 4 mm | with external thread | V2A

Threaded terminal for self-assembly | For cable: Ø 4 mm | with external thread | V2A [ Technical details ] Made from stainless steel 1.4301/V2A/AISI 304[ Specific details ] Suitable for a rope with a diameter of 4 mm; with external thread; for self-assembly; M5 thread [ Further specific details ] Dimensions of threaded terminal for Ø 4 mm rope: A: M5; B: 60 mm; C: 40 mm; D: Ø 12 mm; E: 15 mm; F: 45 mm [ Application ] Insert the cable into the terminal and secure it with the included Allen clamp screw

Available, : Lieferzeit 1-2 Werktage

$10.18*

Gewindeterminal zur Selbstmontage - Fuer Seil Ø 4 mm - mit Innengewinde - V2A-11-2810.4

Stk

11.2810.4

Threaded terminal for self-assembly | For 4 mm cable | with internal thread | V2A

Threaded terminal for self-assembly | For 4 mm diameter cable | with internal thread | V2A [ Technical details ] Made from stainless steel 1.4301/V2A/AISI 304[ Specific details ] Suitable for a cable with a diameter of Ø 4 mm; with internal thread; for self-assembly; threads from M5 to M8 [ Application ] Insert the cable into the terminal and secure it with the included Allen clamp screw [ Further specific details ] Dimensions of threaded terminal for Ø 3 mm rope: A: M5; B: 60 mm; C: 40 mm; D: Ø 12 mm; E: 15 mm Dimensions of threaded terminal for Ø 4 mm rope: A: M5; B: 60 mm; C: 40 mm; D: Ø 12 mm; E: 15 mm Dimensions of threaded terminal for Ø 5 mm rope: A: M5; B: 70 mm; C: 40 mm; D: Ø 14 mm; E: 20 mm Dimensions of threaded terminal for Ø 6 mm rope: A: M6; B: 70 mm; C: 40 mm; D: Ø 14 mm; E: 20 mm Dimensions of threaded terminal for Ø 8 mm rope: A: M8; B: 80 mm; C: 60 mm; D: Ø 16 mm; E: 15 mm

Available, : Lieferzeit 1-2 Werktage

$9.88*

11.2900.4

Threaded terminal with swivel joint | For 4 mm diameter cable | For self-assembly on 42.4 mm diameter posts | V2A

Threaded terminal with swivel | For 4 mm diameter cable | For self-assembly on 42.4 mm diameter posts | V2A [ Technical details ] Made from stainless steel 1.4301/V2A/AISI 304[ Specific details ] Suitable for a cable with a diameter of 4 mm [ Application ] For self-assembly on a post with a diameter of 42.4 mm

Available, : Lieferzeit 1-2 Werktage

$18.34*

11.2961.4

Threaded terminal with external thread | Right-hand thread | For cable Ø 4 mm | V2A

Threaded terminal with external thread | Right-hand thread | For cable with a diameter of 4 mm | V2A [ Technical details ] Made from stainless steel 1.4301/V2A/AISI 304[ Specific details ] Suitable for a cable with a diameter of 4 mm; for self-crimping; with M6 thread [ Further specific details ] Dimensions of threaded terminal for Ø 4 mm cable: A: M6; B: 70 mm; C: 30 mm; D: 7 mm; E: 35 mm [ Application ] Insert the rope into the terminal and crimp using a suitable tool

Variants from $5.52*

Available, : Lieferzeit 1-2 Werktage

$6.10*

11.2966.4

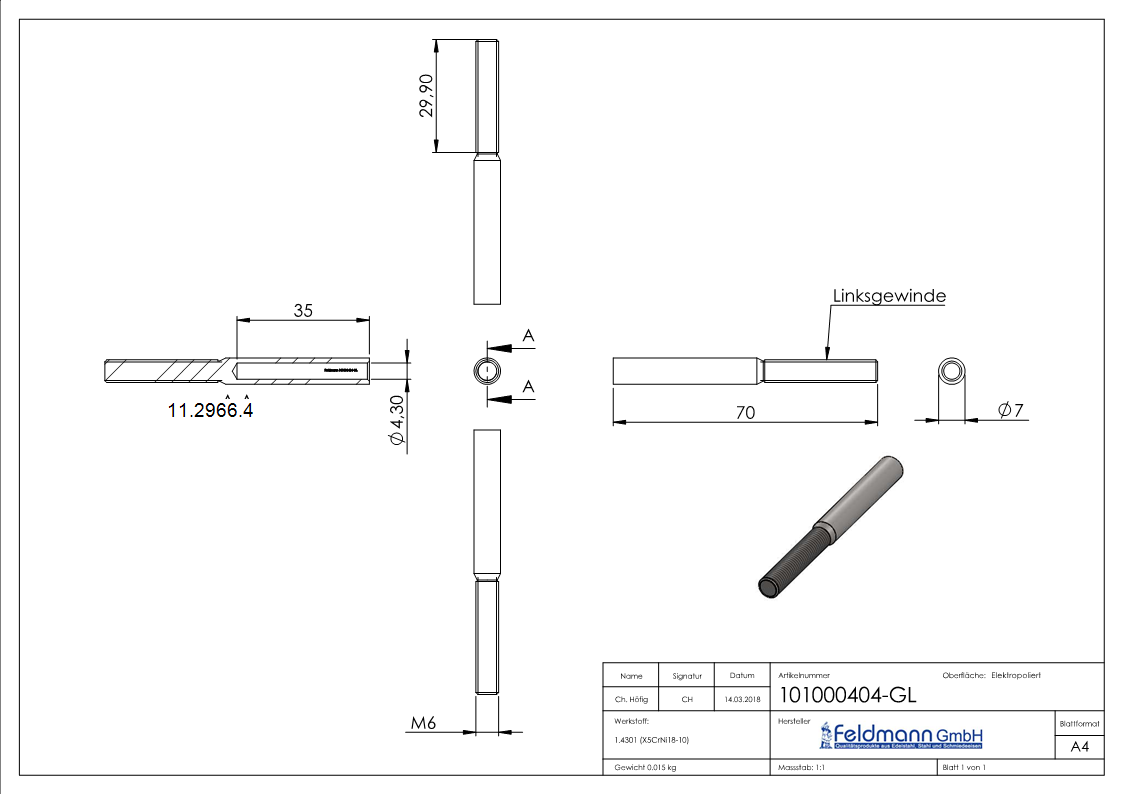

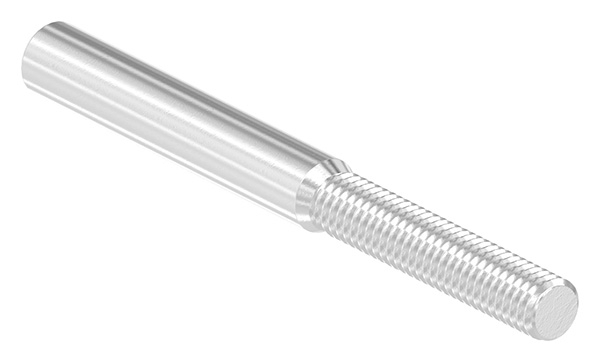

Threaded terminal with external thread | Left-hand thread | For cable Ø 4 mm | V2A

Threaded terminal with external thread | Left-hand thread | For cable with a diameter of 4 mm | V2A [ Technical details ] Made from stainless steel 1.4301/V2A/AISI 304[ Specific details ] Suitable for a cable with a diameter of 4 mm; for self-crimping; with M6 thread [ Further specific details ] Dimensions of threaded terminal for Ø 4 mm cable: A: M6; B: 70 mm; C: 30 mm; D: 7 mm; E: 35 mm [ Application ] Insert the rope into the terminal and crimp using a suitable tool

Variants from $5.52*

Available, : Lieferzeit 1-2 Werktage

$6.10*

11.2971.4

Threaded terminal with internal thread | Right-hand thread | For cable Ø 4 mm | V2A

Threaded terminal with internal thread | Right-hand thread | For cable with a diameter of 4 mm | V2A [ Technical details ] Made from stainless steel 1.4301/V2A/AISI 304[ Specific details ] Suitable for a cable with a diameter of 4 mm; for self-crimping; with M6 thread [ Further specific details ] Dimensions of threaded terminal for Ø 4 mm cable: A: M6; B: 70 mm; C: 25 mm; D: 7 mm; E: 35 mm [ Application ] Insert the rope into the terminal and crimp using a suitable tool

Available, : Lieferzeit 1-2 Werktage

$5.22*

11.2976.4

Threaded terminal with internal thread | Left-hand thread | For cable Ø 4 mm | V2A

Threaded terminal with internal thread | Left-hand thread | For cable with a diameter of 4 mm | V2A [ Technical details ] Made from stainless steel 1.4301/V2A/AISI 304[ Specific details ] Suitable for a rope with a diameter of 4 mm; for self-crimping; with M6 thread [ Further specific details ] Dimensions of threaded terminal for Ø 4 mm rope: A: M6; B: 70 mm; C: 25 mm; D: 7 mm; E: 35 mm [ Application ] Insert the rope into the terminal and crimp using a suitable tool

Available, : Lieferzeit 1-2 Werktage

$5.22*

11.2906.1

Thimble | for rope diameter: 4 mm | V4A

Thimble | for rope Ø 4 mm | V4A[ Technical details ] made of stainless steel 1.4401/04/V4A/AISI 316[ specific details ] A: 13 mm; B: 23 mm; C: 6.5 mm; D: 19 mm

Available, : Lieferzeit 1-2 Werktage

$1.16*

11.2920.1

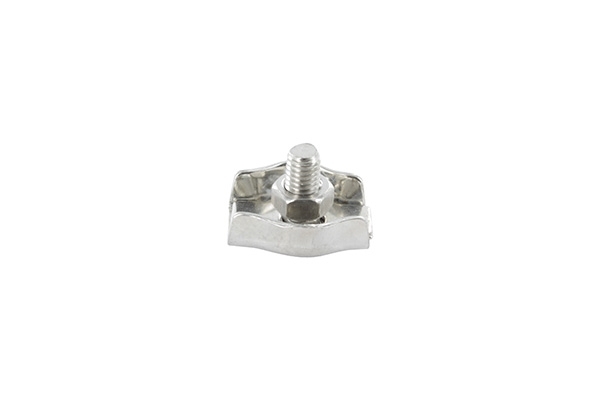

Simplex clamp | for 4 mm rope | V4A

Simplex clamp | for rope Ø 4 mm | V4A[ Technical details ] made of stainless steel 1.4401/04/V4A/AISI 316[ specific details ] A: 10 mm; B: 20 mm; C: 6.5 mm

Variants from $1.96*

Available, : Lieferzeit 1-2 Werktage

$2.22*

11.2924.1

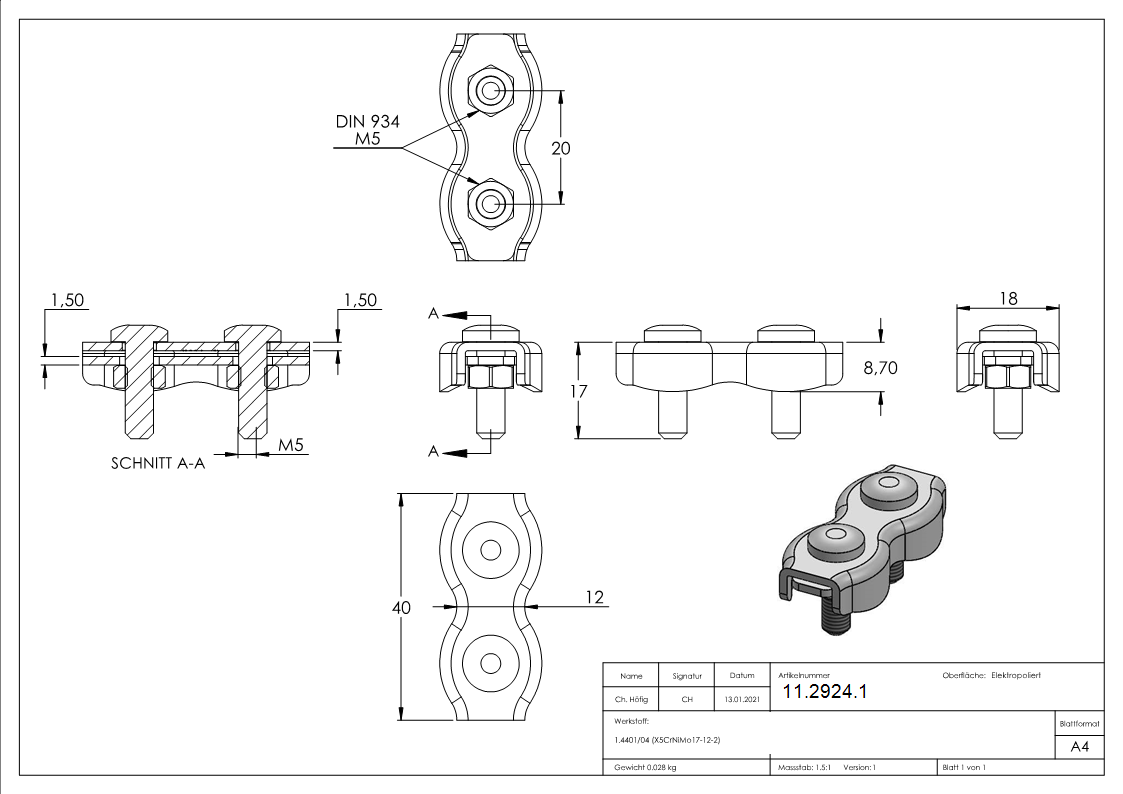

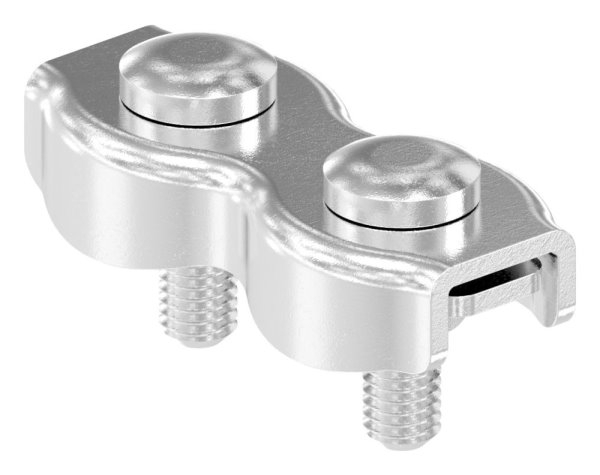

Duplex clamp | for 4 mm rope | V4A

Duplex clamp | for cable Ø 4 mm | V4A[ Technical details ] made of stainless steel 1.4401/04/V4A/AISI 316[ Specific details ] A: 18 mm; B: 40 mm; C: 6.5 mm

Variants from $3.66*

Available, : Lieferzeit 1-2 Werktage

$4.60*

Stk

11.2959.4

rope clamp

Cable pliers for cutting steel cables up to 20 mm

Available, : Lieferzeit 1-2 Werktage

$122.86*
