Grating step 1000 x 270 mm, mesh size 30/30, thickness 35/2 mm, slip resistance class R10

Skip the photo gallery
Gitterroststufe 1000 x 270 MW 30-30 TS 35-2 Rutschhemmung R10-24-1002730352.7
Gitterroststufe 1000 x 270 MW 30-30 TS 35-2 Rutschhemmung R10-24-1002730352.7
Gitterroststufe 1000 x 270 MW 30-30 TS 35-2 Rutschhemmung R10-24-1002730352.7
Gitterroststufe 1000 x 270 MW 30-30 TS 35-2 Rutschhemmung R10-24-1002730352.7
Gitterroststufe 1000 x 270 MW 30-30 TS 35-2 Rutschhemmung R10-24-1002730352.7
Gitterroststufe 1000 x 270 MW 30-30 TS 35-2 Rutschhemmung R10-24-1002730352.7
Gitterroststufe 1000 x 270 MW 30-30 TS 35-2 Rutschhemmung R10-24-1002730352.7
Gitterroststufe 1000 x 270 MW 30-30 TS 35-2 Rutschhemmung R10-24-1002730352.7
Gitterroststufe 1000 x 270 MW 30-30 TS 35-2 Rutschhemmung R10-24-1002730352.7
Gitterroststufe 1000 x 270 MW 30-30 TS 35-2 Rutschhemmung R10-24-1002730352.7
Gitterroststufe 1000 x 270 MW 30-30 TS 35-2 Rutschhemmung R10-24-1002730352.7
Gitterroststufe 1000 x 270 MW 30-30 TS 35-2 Rutschhemmung R10-24-1002730352.7
Gitterroststufe 1000 x 270 MW 30-30 TS 35-2 Rutschhemmung R10-24-1002730352.7
Gitterroststufe 1000 x 270 MW 30-30 TS 35-2 Rutschhemmung R10-24-1002730352.7
Gitterroststufe 1000 x 270 MW 30-30 TS 35-2 Rutschhemmung R10-24-1002730352.7
Gitterroststufe 1000 x 270 MW 30-30 TS 35-2 Rutschhemmung R10-24-1002730352.7
Gitterroststufe 1000 x 270 MW 30-30 TS 35-2 Rutschhemmung R10-24-1002730352.7
Gitterroststufe 1000 x 270 MW 30-30 TS 35-2 Rutschhemmung R10-24-1002730352.7

$63.10*

Prices include VAT, plus delivery charges

Available now, delivery time: Lieferzeit 1-2 Werktage

Stk
Lagerbestand: 196
Product number: 24.1002730352.7
EAN: 4067727002096
Gewicht: 7.1 kg
20,000 items in stock
CAD data available after login
Over 200,000 satisfied customers
Worldwide delivery
Description

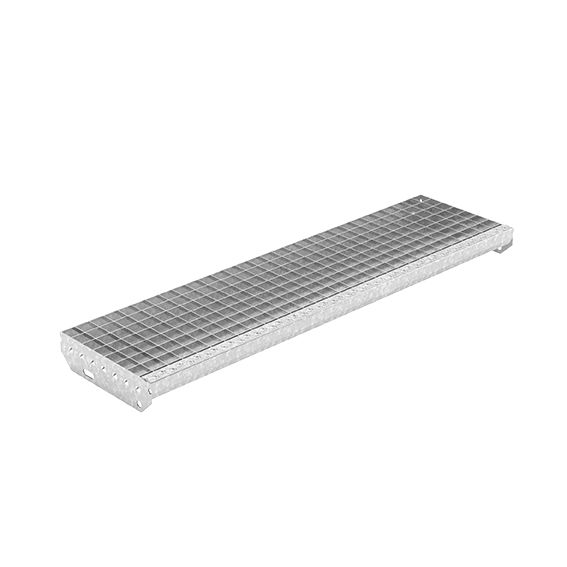

Product information "Grating step 1000 x 270 mm, mesh size 30/30, thickness 35/2 mm, slip resistance class R10"

Grating step, stair tread, expanded metal step | Dimensions: 1000 x 270 mm, 30/30 mm | S235JR (St37-2)

[ Technical details ] made from S235JR (St37-2), hot-dip galvanised
[ Specific details ] Length (longitudinal bar direction): 1000 mm; Width (transverse bar direction): 270 mm; Mesh size: 30/30 mm; Main bar: 35/2 mm
[ Further specific details ] With flanges and toe-up edge
[ Certificate ] Slip resistance class: R10; Drilling in accordance with DIN 24531; Permissible single force 1.5 kN on a 100 x 100 mm load cube with a maximum deflection of 1/300 mm or 6 mm in accordance with DIN EN ISO 14122-3. [ Manufacturer ] MEA Group GmbH, Product MEASTEP Standard Step

Eigenschaften
Maschenweite | Steps | Drahtgewebe: 30/30mm
Rutschhemmung | Steps: R10
Stufenbreite | Steps | Stufenlänge: 1000mm
Stufentiefe | Steps | Auftritt : 270mm
